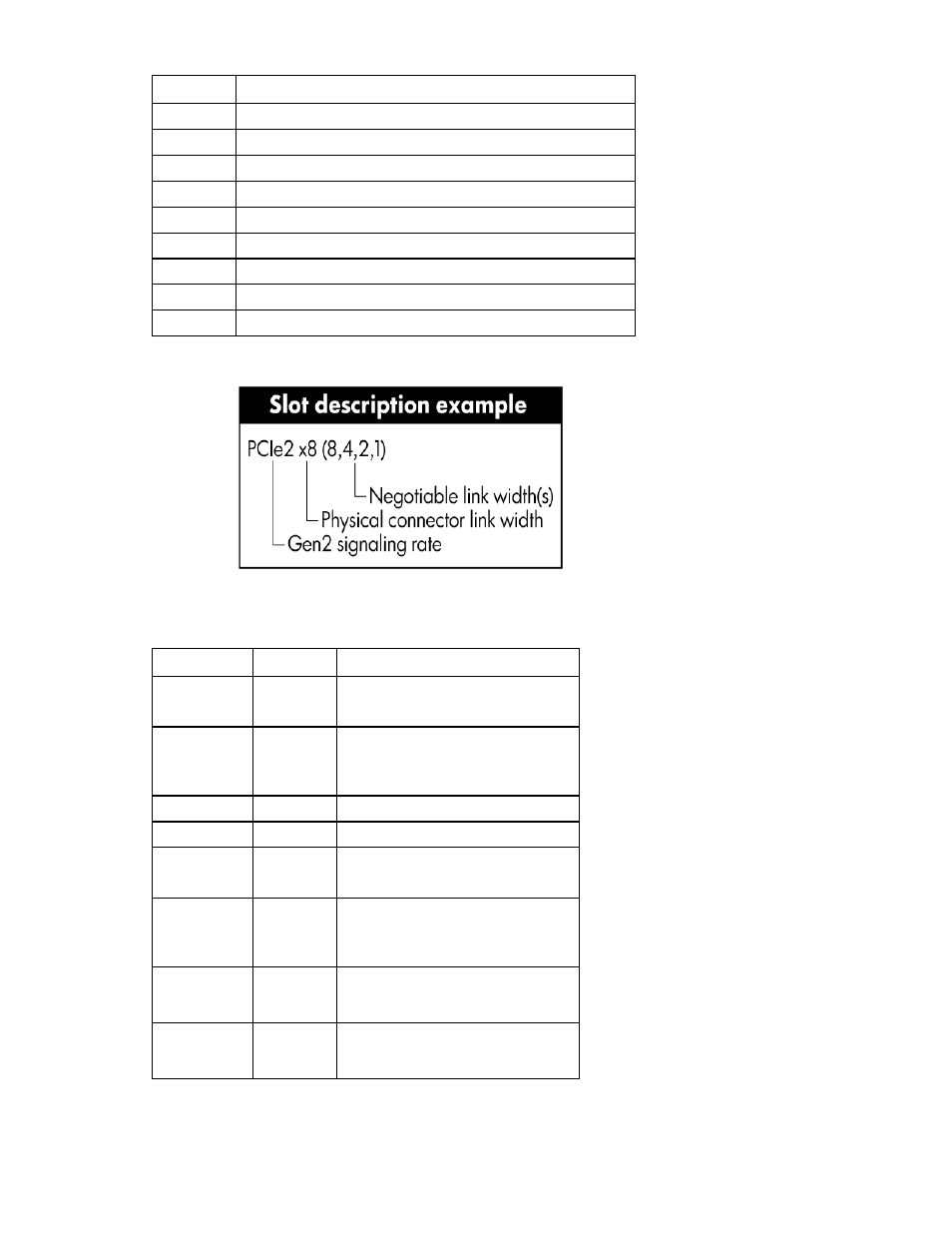

Component identification 12
Item Description
23 Fan 1 connector
24 Fan 1.5 or 2 connector
25 Fan 3 connector
26 Reserved
27
Processor socket 1 (populated)
28 Battery
29 Reserved
30 Power
connector
31 Front USB connector
* The server supports one optical drive that can be connected to either SATA connector 5 or SATA connector 6.
System maintenance switch
Position Default Function
S1 Off Off = iLO 2 security is enabled
On = iLO 2 security is disabled
S2 Off Off = Normal operation
On = RBSU will not commit any
configuration changes*
S3 Off Reserved
S4 Off Reserved
S5 Off Off = Power-on password enabled
On = Power-on password disabled*
S6 Off Off = Normal operation
On = BIOS will clear CMOS and
NVRAM*
S7 Off Reserved
S8 Off Reserved
* "On" activates the function.
