Service
Module Cam Lever
107
Service
Module Cam Lever
To replace the module cam lever:
1. Squeeze the pivot tabs with pliers (see Figure 42) and lift the cam lever off of the pivot.
2. Position the locking bracket (Figure 43, item 2) over the track notch (Figure 43, item 3) and lift it out
of the track.
3. To replace the cam lever, insert the locking bracket into the notch, then snap the cam lever onto the
pivot (Figure 44).

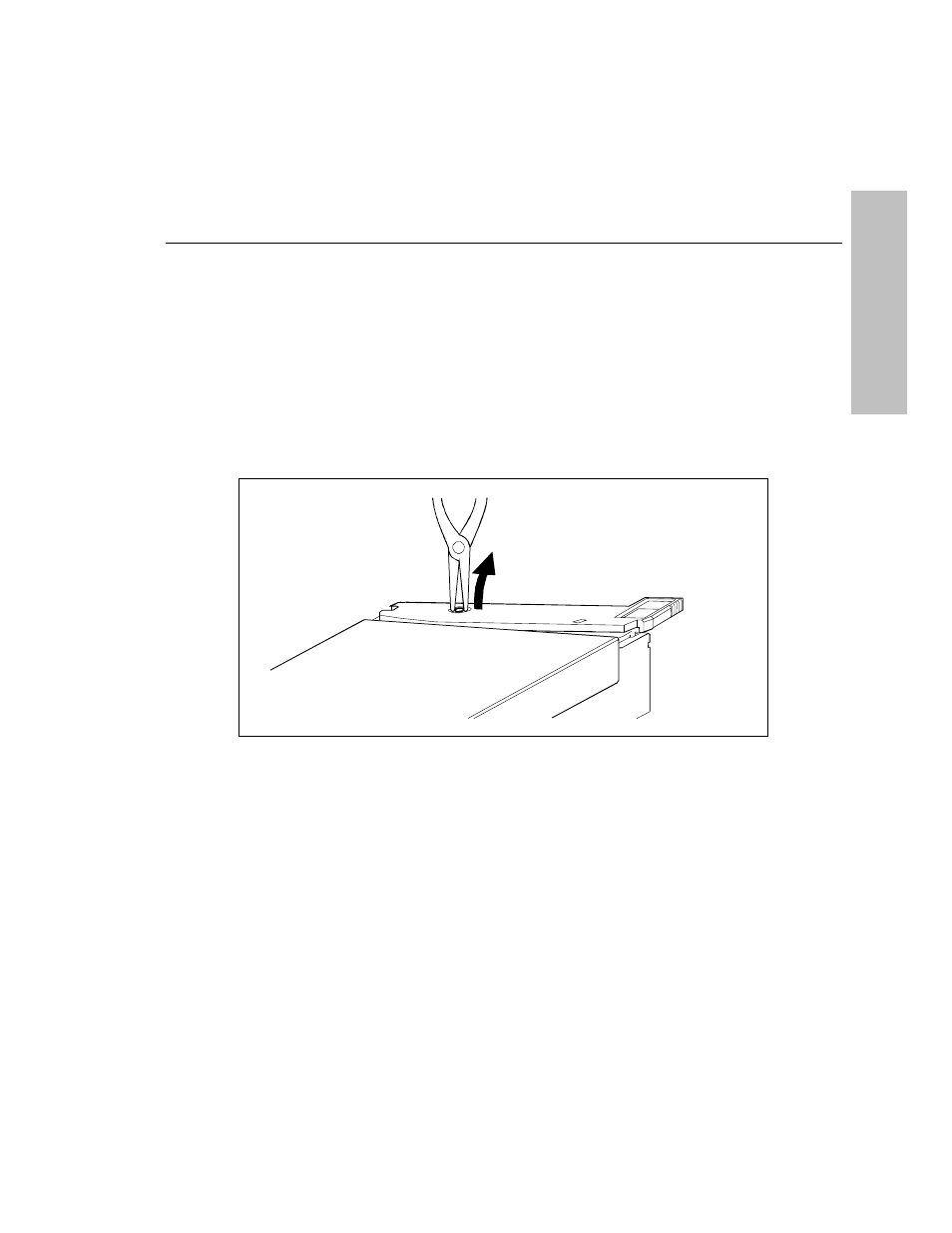

Figure 42. Removing Module Cam Lever from Pivot
