Installation & Configuration
Connecting SCSI Cables and Terminators
21
Installation

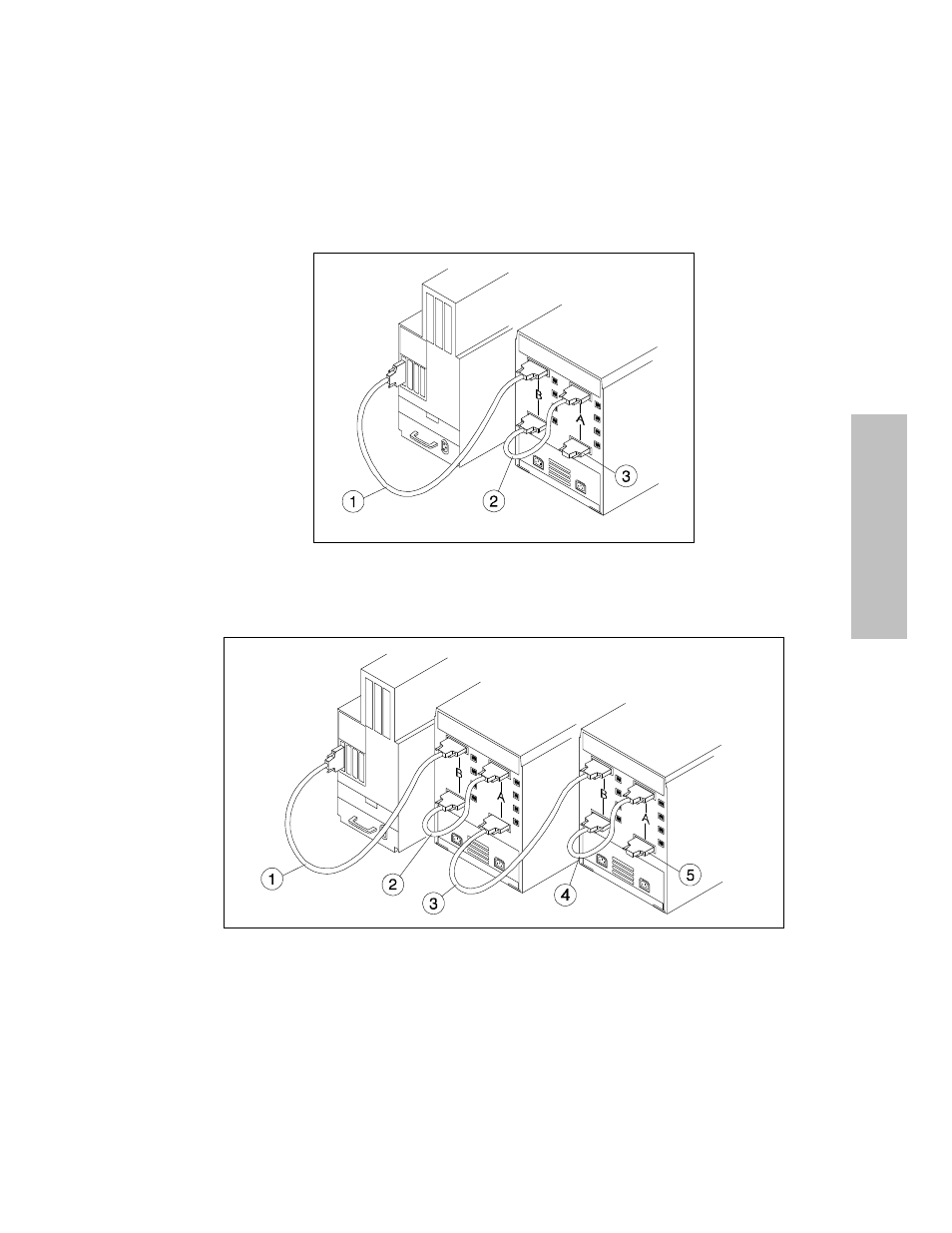

Figure 13. One Storage System on a Single Bus
1 - HBA to Bus B (1 m) 3 - Bus A Terminator
2 - Bus B to Bus A (0.9 m)
Figure 14. Two Storage Systems on a Single Bus
1 - HBA to Bus B1 (1 m) 4 - Bus B2 to Bus A2 (0.9 m)
2 - Bus B1 to Bus A1 (0.9 m) 5 - Bus A2 Terminator
3 - Bus A1 to Bus B2 (1 m)
