85

PVM-X3200/X2400/X1800

PVM-X3200

Unit: mm (inches)

Notes

Make sure to tighten the screws using the
screwdriver which conforms to the supplied
screws.

When using an electric screwdriver, set the
torque setting as follows.
For M4 screws: approximately 1.2 N·m [12
kgf·cm]
For M6 screws: approximately 1.5 N·m [15
kgf·cm]

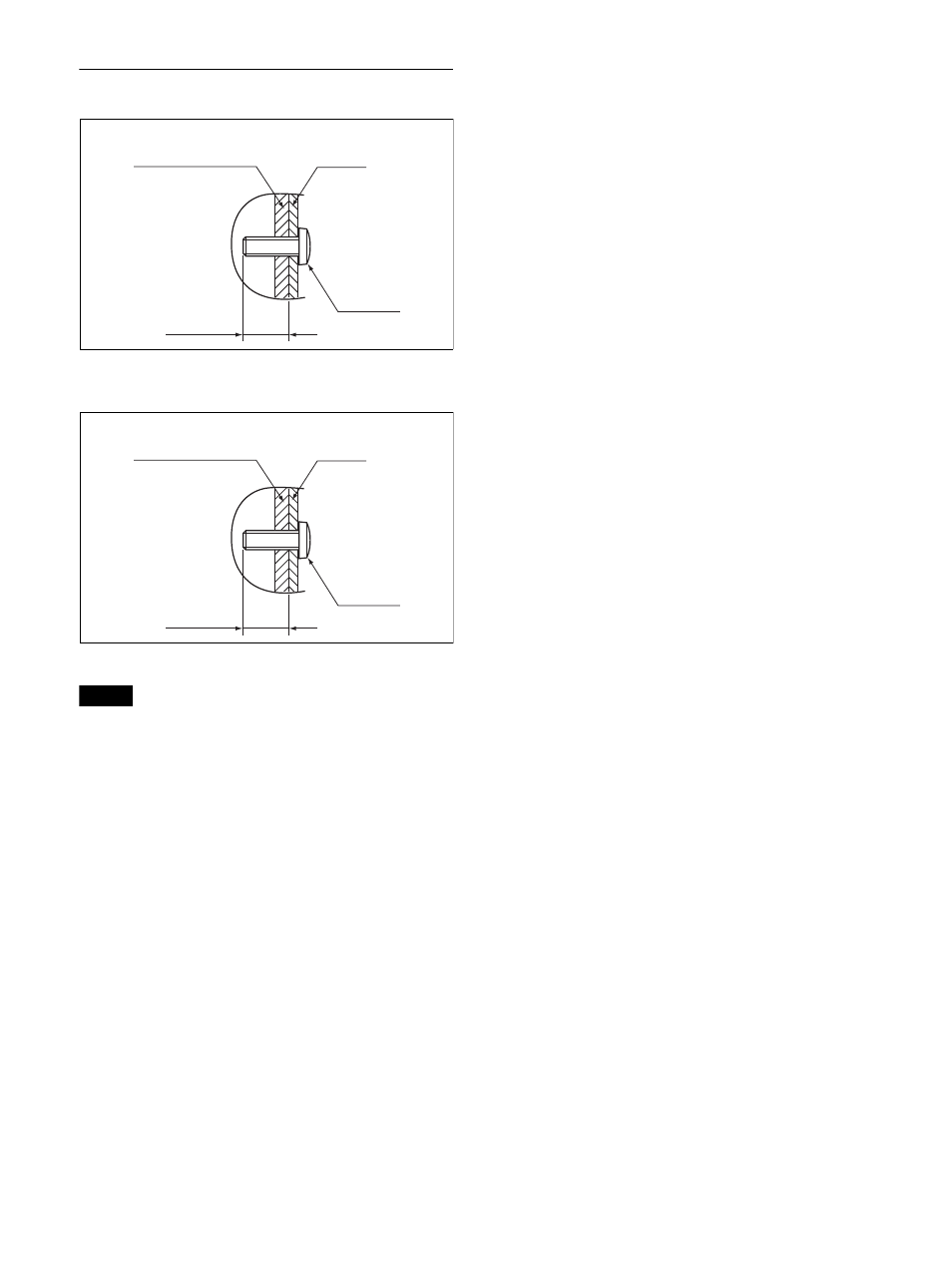

* Length of M4 screws (side, rear)

Monitor cabinet

Attached object

6 (

1

/

4

) to 8 (

11

/

32

)

M4 screw

* Length of M6 screws (rear)

Monitor cabinet

Attached object

6 (

1

/

4

) to 9 (

3

/

8

)

M6 screw
