40

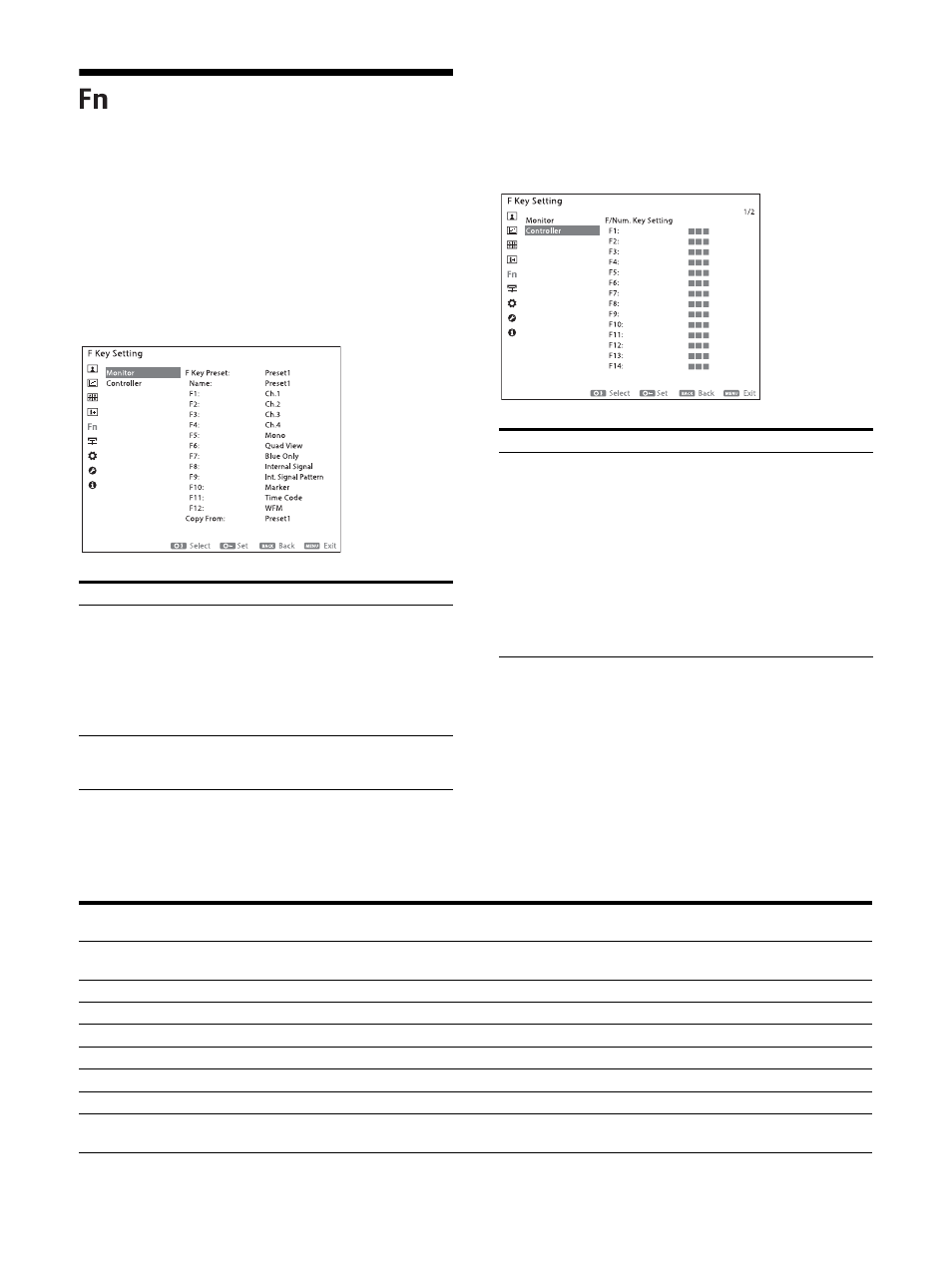

F Key Setting menu

The functions of the function buttons on the unit
and controller are configured.

Monitor

Configure the functions of the function buttons
on the front panel of the monitor. This
configuration menu can also be displayed by
pressing and holding the function button.

Controller

Set the functions of the function buttons and
numeric buttons on the controller. This menu is
available when the menu is displayed from the
connected controller.

About functions that can be assigned to the function buttons on this unit and the buttons 1 to 9 on the
controller

“Preset1” to “Preset10” in “F Key Preset” are assigned with the function in the table below.

Submenu

Setting

F Key Preset

Select the preset number you want to
set for the function key.

Name

Sets a preset name for the function key
selected.

F1 to F12

Assign a function to one of the F1 to
F12 buttons on the front panel for the
selected function key preset.

Copy From

Copy another function key’s preset
data to the selected function key
preset.

Submenu

Setting

F/Num. Key Setting

F1 to F16
Numeric1 to
Numeric9

Assigns functions to the F1 to F16
buttons or buttons 1 to 9 on the
controller. For the functions available
for the function buttons on the
controller, see page 10. For the
functions available for the buttons 1 to
9 on the controller, see “About
functions that can be assigned to the
function buttons on this unit and the
buttons 1 to 9 on the controller”
(page 40).

Preset1

Preset2

Preset3

Preset4

Preset5

Preset6

Preset7 to

Preset10

Default

Ver.1.0_Preset

BD_H_M_L

HDR-SDR_Conv.

Display_Func.

Markers

Preset7 to

Preset10

F1

CH1

CH1

CH1

CH1

CH1

CH1

CH1

F2

CH2

CH2

CH2

CH2

CH2

CH2

CH2

F3

Mono

CH3

Quad View

WFM

Mono

CH3

Mono

F4

Quad View

CH4

Marker

Vector

Blue Only

CH4

Quad View

F5

Marker

Mono

Time Code

Pixel Zoom

R Off

Marker

Marker

F6

Time Code

Quad View

WFM

Quad View

G Off

Area Marker1

Time Code

F7

WFM

Blue Only

Chr./Bright./

Cont.

Side by Side

B Off

Area Marker2

WFM
