37

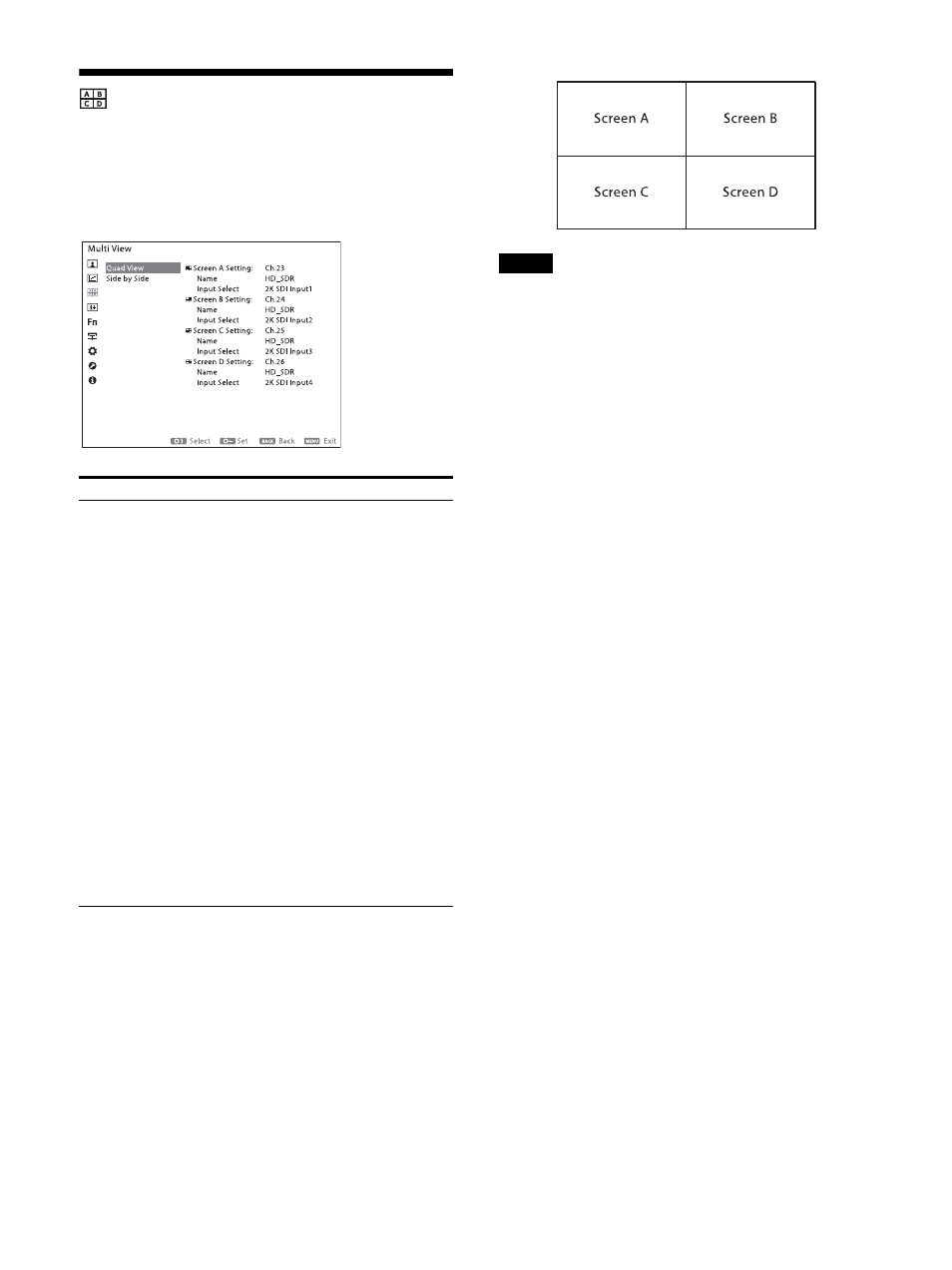

Multi View menu
Video display is set to multiple views.
Quad View
About the Quad View setting
When Quad View is set to On using the function
button, the four HD resolution input signals are
displayed on Screen A to Screen D.
Notes
The 4K equivalent signal cannot be displayed
with Quad View.
Only one channel per input terminal can be
displayed simultaneously.
Example: If “Ch.1” and “Ch.2” is set to the same
SDI input connector 1, they cannot be displayed
at same time. To compare the same image,
input the image of input connector 1 to the
other connector and set “Ch.2” to the input
connector.
When a combination which cannot be
displayed simultaneously is set, the screen
which can be displayed is displayed in order
from Screen A.
If the screen cannot be displayed, it turns black
and the “Invalid Input Combination” message
is displayed.
Time code is displayed on only the SDI signal
that is input to Screen A.
The audio signal input to Screen A is output
from the speaker, headphones jack, or AUDIO
output connector.
The drive frequency of the panel changes to
the same as Screen A.
“Native Scan” and “Under Scan” are
automatically set to “Off.”
The following restrictions develop in Quad
View if the Conversion (HDR SDR conversion)
function and Enhanced Monitor Out function
that work when the paid option license "PVML-
HSX1" is activated.
-Conversion cannot be enabled.
-Conversion cannot be applied to the signal
output from the ENHANCED MONITOR OUT
connector.
The following settings are available with an
assignment by channel.
Submenu
Setting
Screen A Setting to
Screen D Setting
Select the channel to be displayed in
each view. For Screen C and Screen D,
you can also select Scope as well as
Channel. Screen C can be selected
from the Scope of Screen A, Screen B
and Screen D. Screen D can be selected
from the Scope of Screen A, Screen B
and Screen C.
Name:
The selected channel name is
displayed.
Input Select:
The input signal set for
the selected channel is
displayed.
4K SDI Input1,2,3&4
4K SDI Input1&2
4K SDI Input3&4
4K SDI Input1
4K SDI Input3
2K SDI Input1&2
2K SDI Input3&4
2K SDI Input1
2K SDI Input2
2K SDI Input3
2K SDI Input4
HDMI
