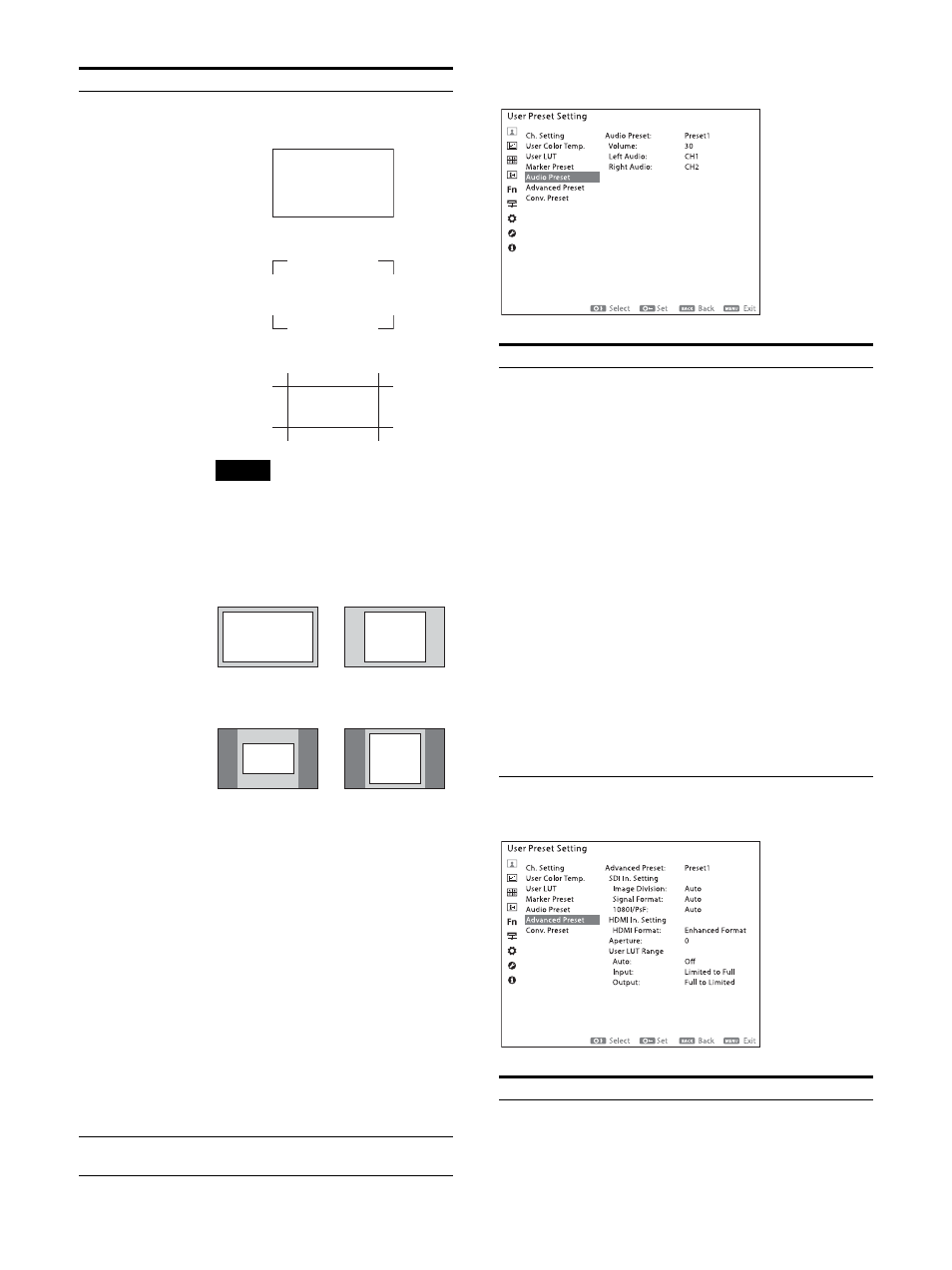

29

Audio Preset

Advanced Preset

Shape:

Sets the shape of area

marker 1/2.

Shape A

Shape B

Shape C

Note

When “Safe Area” is selected in “Area
Mode,” the size of the area differs
depending on the “Aspect Mode”
setting.

Thickness:

Sets the thickness of the

line of the area marker 1/2. You
can set a thickness between “1
dot” and “5 dots.”

Color:

Sets the color of the area

marker 1/2.

White (white)

Red (red)

Green (green)

Blue (blue)

Yellow (yellow)

Cyan (cyan)

Magenta (magenta)

Intensity:

Sets the luminance of the

area marker 1/2.

High (bright)

Low (dark)

Copy From

Copy another marker’s preset data to
the selected marker preset.

Submenu

Setting

16:9 Video
display

80%
Aspect Mode is
set to 16:9

80%
Aspect Mode is
set to 4:3

4:3 Video
display

80%
Aspect Mode is
set to 16:9

80%
Aspect Mode is
set to 4:3

Submenu

Setting

Audio Preset

Select the audio preset data to be
configured.

Volume

Adjusts the volume of the selected
audio preset.

Left Audio

Sets the audio channel when SDI
signal is input.
Select from channels “CH1” to “CH16.”
You cannot select when HDMI is input
as “CH1” is selected for Left Audio.

Right Audio

Sets the audio channel when SDI
signal is input.
Select from channels “CH1” to “CH16.”
When a channel from “CH1” to “CH8” is
selected in “Left Audio,” you cannot
select a channel other than a channel
from “CH1” to “CH8” (e.g.: CH9) in
“Right Audio.”
When a channel from “CH9” to “CH16”
is selected in “Left Audio,” you cannot
select a channel other than a channel
from “CH9” to “CH16” (e.g.: CH1) in
“Right Audio.”
You cannot select when HDMI is input
as “CH2” is selected for Right Audio.

Submenu

Setting

Advanced Preset

Select the User Preset data to be
applied. Select from “Preset1” to
“Preset10.”
