31

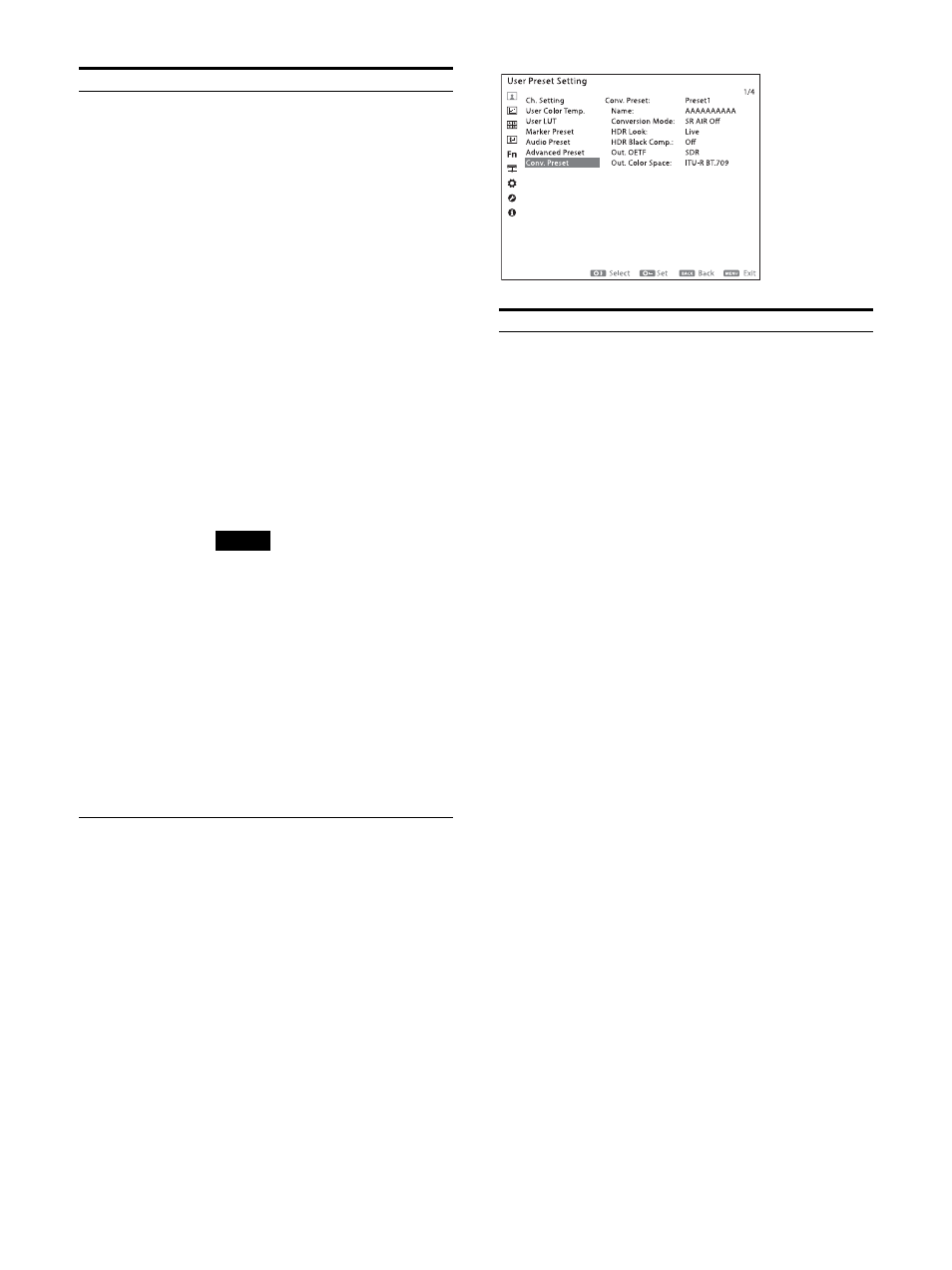

Conv. Preset

This setting is available with the optional “PVML-
HSX1” license (sold separately). You can
configure a group of items necessary to generate
an SDR signal from an HDR signal. Setting values
can be copied from other presets.

Output:

Select a scaling type from

the following, applied when
scaling an LUT output range to
an output signal.

Full to Limited: Scales an LUT
output range [0:1] to the
Limited Range signal output.
Signals outside the signal
level of 0 to 100% are clipped.

No Scaling(Full): LUT output
range [0:1] is assigned to
output signals as Full Range
without scaling. This function
is used when the Video Range
of an output signal is Full
Range.

No Scaling(Limited): LUT
output range [0:1] is assigned
to output signals as Full
Range without scaling. This
function is used when the
Video Range of an output
signal is Limited Range (-7 to
109%), which includes signals
outside the signal level of 0 to
100%.

Note

When the OETF specification of LUT
signal output is S-Log3, note the
following points.
-When "SR Live Auto" is "On," the OETF
(HDR SDR Relation Table information in
SR Live Metadata) must be set to S-
Log3.
-When "SR Live Auto" is "Off," select
"S-Log3(Live HDR)" or “S-Log3“ for
"EOTF" in "Ch. Setting."
With the above settings, when the
User LUT function is On (when the User
LUT data is applied in "User LUT" in
"Ch. Setting"), the internal fixed value
is applied to "Output" in "User LUT
Range" regardless of its setting value.

Submenu

Setting

Submenu

Setting

Conv. Preset

Select the conversion preset data to be
configured.
Conversion presets 1 to 10 are
preassigned with the data. See
page 59.

Name

Set up the conversion preset name.

Conversion Mode

Select the conversion mode from the
following.

SR AIR On:

Converts to reproduce

the SDR Look as intended while
maintaining the HDR-SDR
conversion relation set by the SR
Live workflow.

SR AIR Off:

The conversion is

performed faithfully according to
the OETF (Optical Electro Transfer
Function) set for input and output.

Display Referred:

Converts HDR

signals to SDR signals while
maintaining the same video
expression (appearance) when
converting the video signal on the
monitor. The "HDR Look" and "HDR
Black Comp." settings become
invalid. The image quality
adjustment settings other than
"Knee," "HDR SDR Gain" and "SDR
White Clip" in "HDR SDR Setup" are
fixed (not adjustable).

HDR Look

Select the video characteristics from
"Live", "Mild", and "Natural" that
determine how the video signal
captured by cameras will be
represented as an HDR image on the
monitor.
This function is available only when
"SR AIR On" is selected in "Conversion
Mode." Use the same settings as that
for the HDR Look function on your
camera. When the OETF of the input
HDR is other than HLG and the HDR
Look is Natural, "Conversion Mode" is
processed as "SR AIR Off" regardless of
its setting value. For "Live," "Mild," and
"Natural," refer to “HDR-SDR
Conversion” (page 56)
.
