User LUT

You can apply LUT data to the signal input to display on the screen, or output it as an SDI signal from the
ENHANCED MONITOR OUT connector with the optional “PVML-HSX1” license (sold separately).
The supported LUT types and input/output Video Range are shown below.
The LUT diagrams are referenced from "HDR Production: Choosing Format Conversion Look-Up Tables”
published by BBC Research & Development.
https://www.bbc.co.uk/rd/blog/2020-06-lut-format-conversion-hdr-video-production

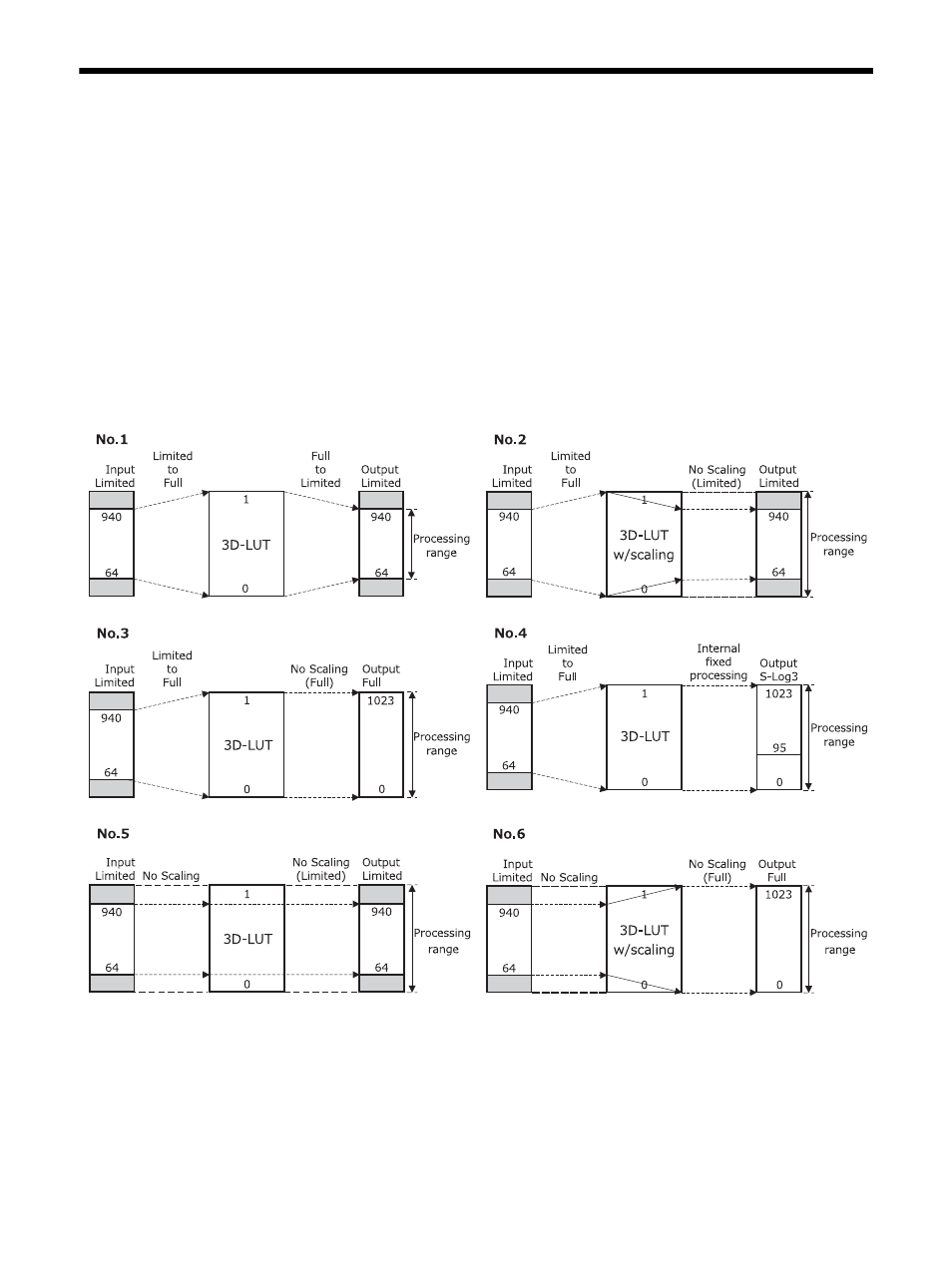

Supported LUT types and input/output Video Range

Input/output Video Range with the S-Log3 (Full Range) signal added are shown. The values in the input
and output signal sections are code values for 10-bit signals, and the values in the 3D-LUT sections are
the LUT range [0: 1]. Also, w/scaling notations indicate a 3D-LUT to which the input and output Video
Ranges are converted.
