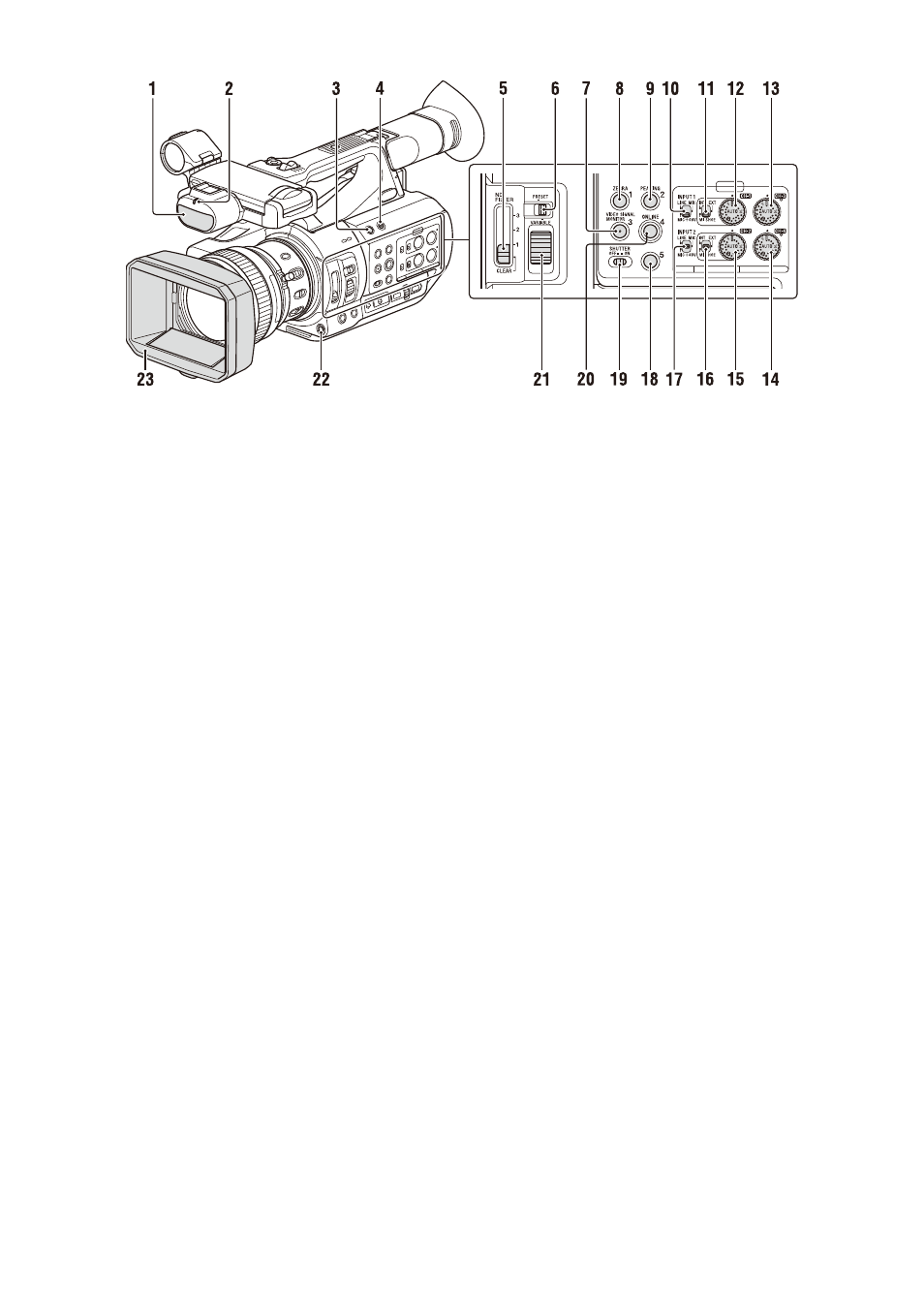

1. Internal microphone (34)
2. Recording/tally lamp (front) (122)
Flashes when the remaining capacity on the
recording media or battery is low.
3. ASSIGN6 button
4. FULL AUTO button (27)
5. ND FILTER switch
6. ND FILTER mode switch
7. ASSIGN3/VIDEO SIGNAL MONITOR
button
8. ASSIGN1/ZEBRA button
9. ASSIGN2/PEAKING button
10. INPUT1 switch (34)
11. CH1 (INT/EXT/MI SHOE) switch (34)
12. AUDIO LEVEL (CH1) dial (34)
13. AUDIO LEVEL (CH3) dial
14. AUDIO LEVEL (CH4) dial
15. AUDIO LEVEL (CH2) dial
16. CH2 (INT/EXT/MI SHOE) switch
17. INPUT2 switch (34)
18. ASSIGN5 button
