User’s Manual of SGSD-1022 / SGSD-1022P
SGSW-2840 / SGSW-2840P
4.10.2.12 IP Port Priority

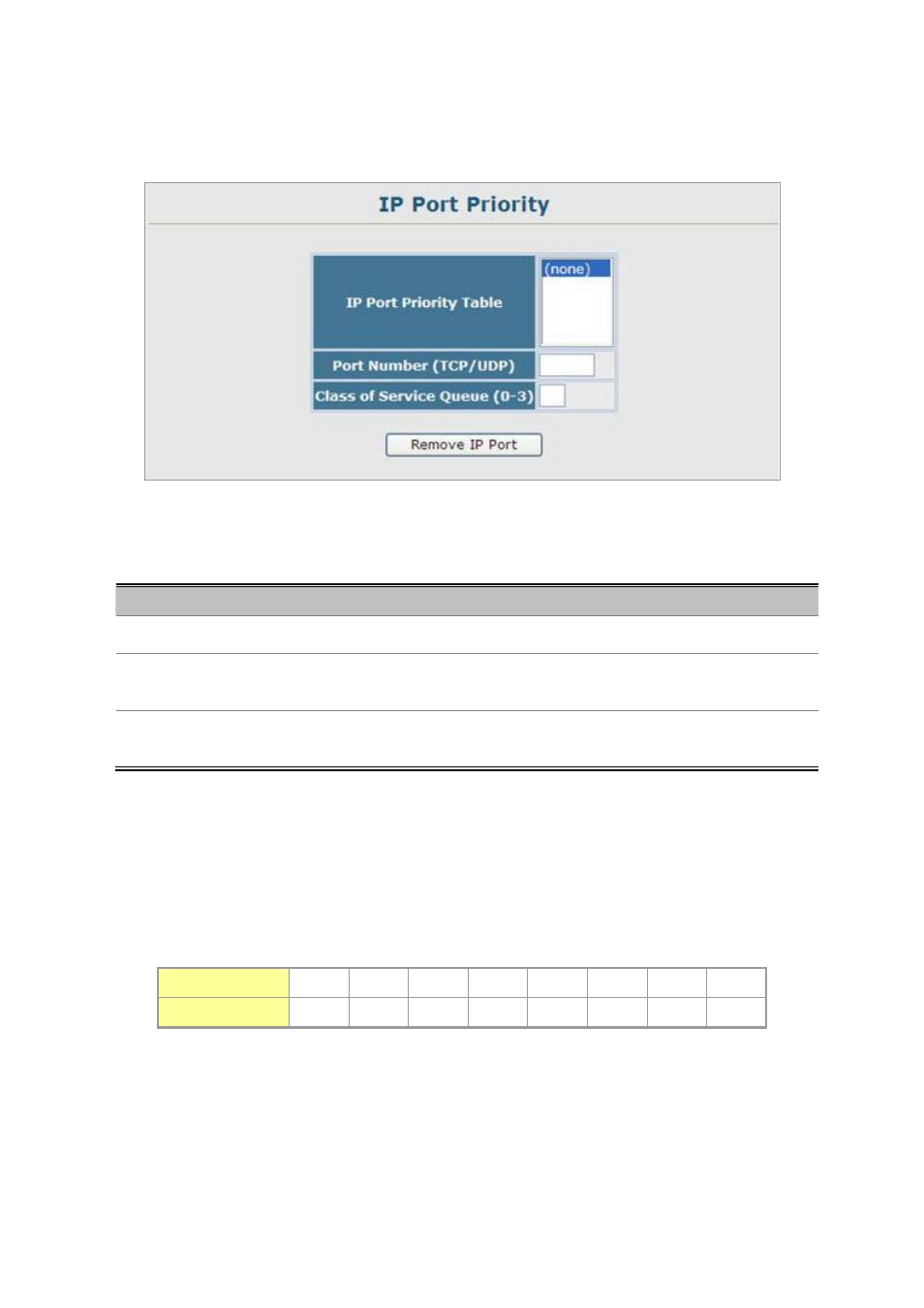

Figure 4-10-12 IP Port Priority page screenshot
The page includes the following fields:
Object
Description
IP Port Priority Table
Shows the IP port to CoS queue map.
IP Port Number
(TCP/UDP)
Set a new IP port number.
Class of Queue Service
Value
Sets a CoS queue for a new IP port.
Note that “0” represents low priority and “3” represent high priority.
4.10.2.13 Mapping CoS Values to ACLs
Use the ACL CoS Mapping page to set the output queue for packets matching an ACL rule as shown in the following table. Note
that the specified CoS value is only used to map the matching packet to an output queue; it is not written to the packet itself.
Priority
0 1 2 3 4 5 6 7
Queue
1 2 0 3 4 5 6 7
