WatchOUT 315DT Installation Manual

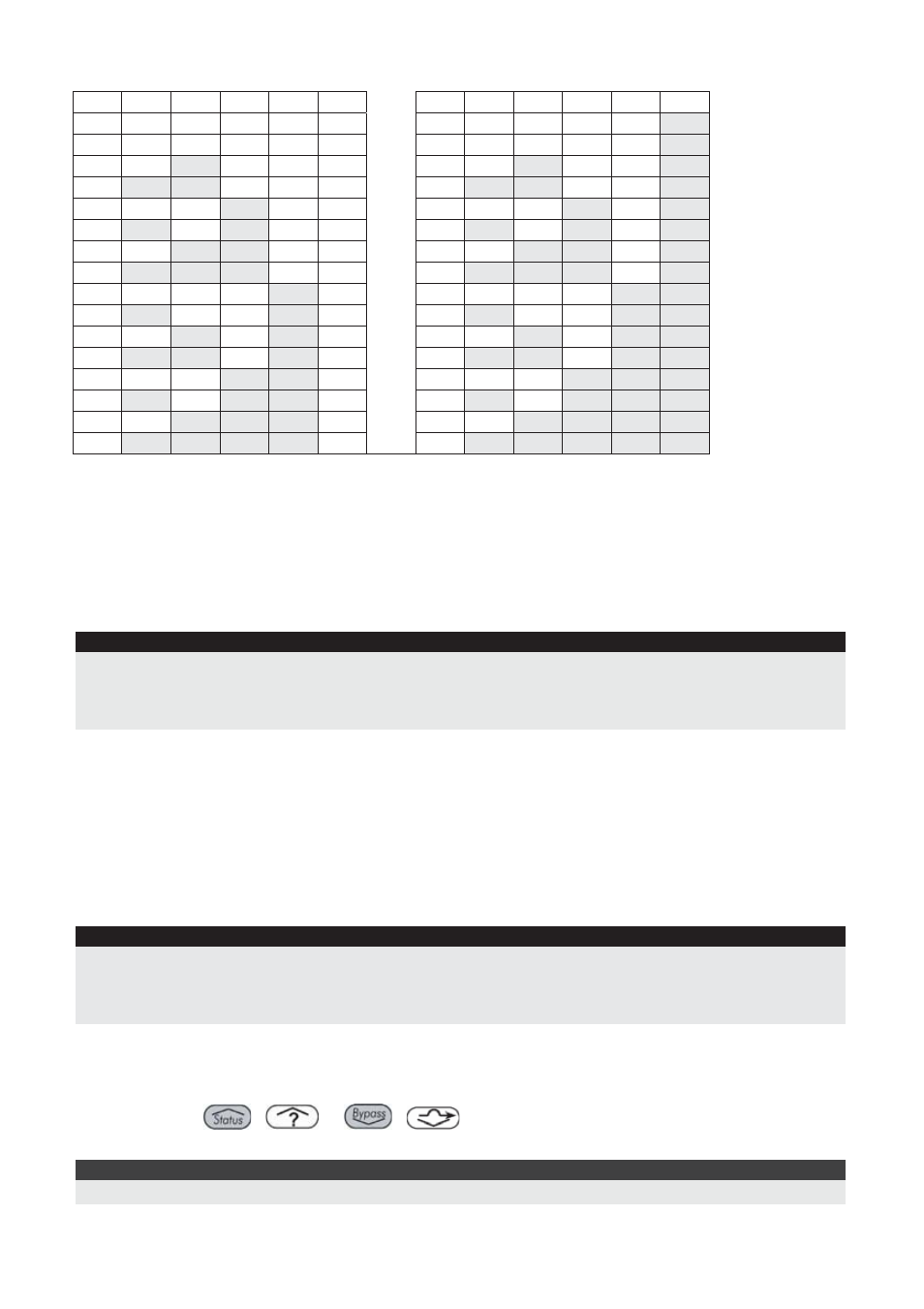

WatchOUT ID: DIP Switches 1 - 5
ID 1 2 3 4
5
ID
1
2 3
4
5
01 OFF OFF OFF OFF OFF
17 OFF OFF OFF OFF ON
02 ON OFF OFF OFF OFF
18 ON OFF OFF OFF ON
03 OFF ON OFF OFF OFF
19 OFF
ON OFF OFF ON
04
ON
ON OFF OFF OFF
20 ON
ON OFF OFF ON
05 OFF OFF ON OFF OFF
21 OFF OFF ON OFF ON
06
ON OFF ON OFF OFF
22 ON OFF ON OFF ON
07 OFF ON
ON OFF OFF
23 OFF
ON
ON OFF ON
08
ON
ON
ON OFF OFF
24 ON
ON
ON OFF ON
09 OFF OFF OFF ON OFF
25 OFF OFF OFF
ON
ON
10
ON OFF OFF ON OFF
26 ON OFF OFF
ON
ON
11 OFF ON OFF ON OFF
27 OFF
ON OFF
ON
ON
12
ON
ON OFF ON OFF
28 ON
ON OFF
ON
ON
13 OFF OFF ON
ON OFF
29 OFF OFF ON
ON
ON
14
ON OFF ON
ON OFF
30 ON OFF ON
ON
ON
15 OFF ON
ON
ON OFF
31 OFF
ON
ON
ON
ON
16
ON
ON
ON
ON OFF
32 ON
ON
ON
ON
ON
ProSYS Programming
The following section describes the additional software programming options, added to the
ProSYS software, that concern the settings of the WatcOUT DT as a BUS detector. Up to 32 BUS
detectors can be added to the system (16 in ProSYS 16) and each of them comes at the expense
of a zone in the system.
It is recommend reading and fully understanding the ProSYS Installation and User Manuals,
before programming the WatchOUT.
Notes:
The WatchOUT is compatible with the ProSYS software Version 4.xx and above.
The WatchOUT can be programmed via the U/D Software from UD Version 1.8 and above.
For maximum operation stability, it is best NOT to exceed a total of 300 meters (1000 feet) of wiring when
connecting the WatchOUT to the BUS.
Adding / Deleting the WatchOUT DT
The WatchOUT is part of a new accessory category, BUS zones. Therefore, Adding/Deleting the
WatchOUT is identical to any other accessory with the following exception:
Each BUS Zone Detector should be assigned to a Regular Zone.
Any BUS detector can be assigned to a physical wired zone or to a virtual zone.
Physical zone: Any zone on the ProSYS PCB (zones 1-8) or on a wired zone expander
(ZE08, ZE16).
Virtual zone: Any zone on a BUS zone expander defined as BZ08 or BZ16.
Notes:
Virtual BUS zones are cost effective. They enable to expand your system zones without adding physical zone
expanders.
The virtual BUS zone expander can be used only for BUS zone detectors.
To add a BUS zone expander select type BZ08 or BZ16 when adding a zone expander (Quick key [7][1][2]).
1. To Add / Delete the WatchOUT DT
1. From the installer menu enter the Add/Delete menu: Quick Key [7][1][9][5] for BUS Zones
detectors.
2. Use the
/
or
/
keys to position the cursor over the BUS Zone
ID number for which you want to assign (or delete) a detector.
Note:
Make sure that the detector's physical ID number is identical to the ID number you select during programming.
