WatchOUT 315DT Installation Manual

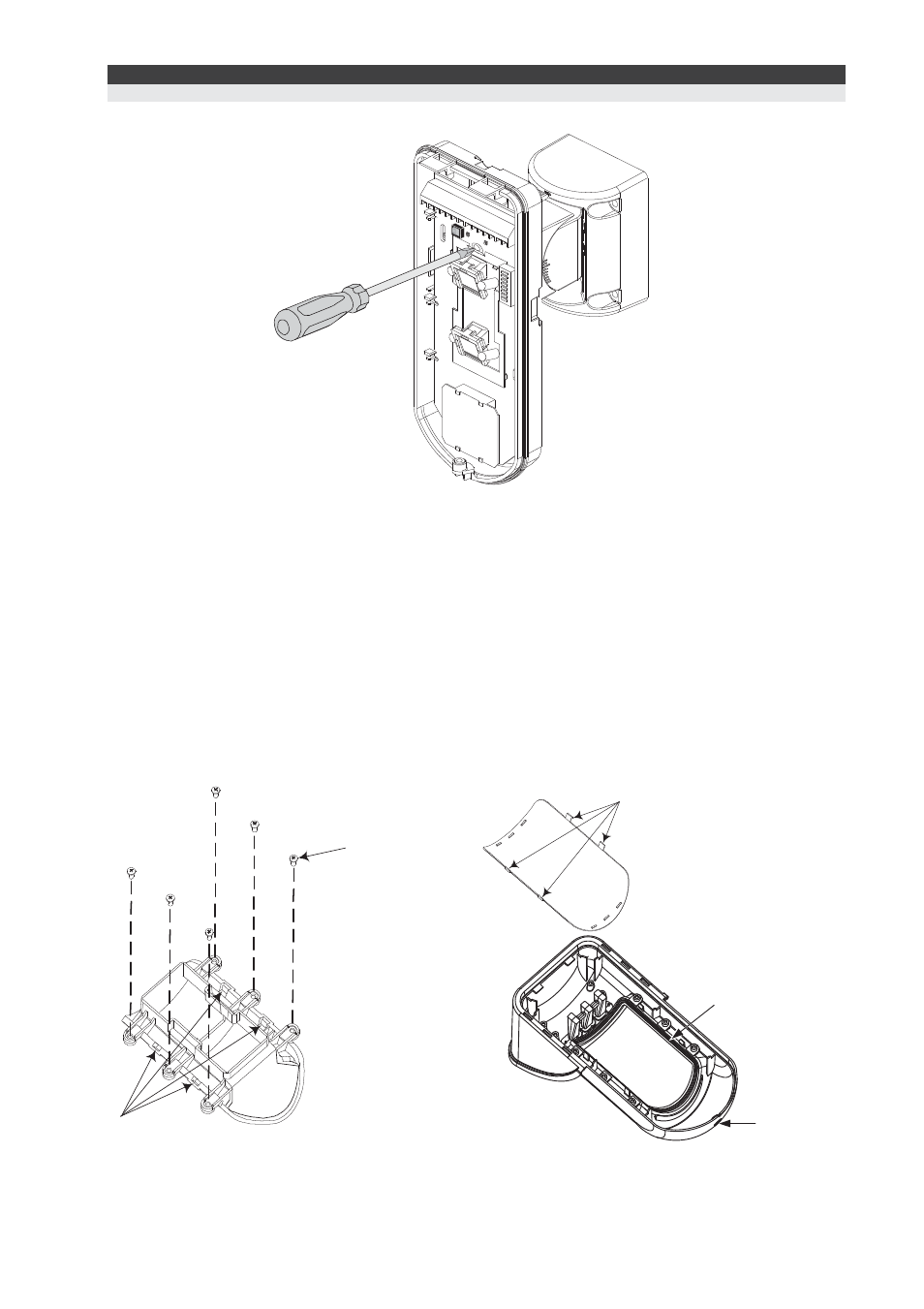

Note:

The screw has to pass through External Base and locked to the swivel.

Figure 8

Replacing Lenses

1. Unlock the six screws that hold the lens holding sleeve from the back of the front cover.

2. To release the protective sleeve, gently push the lens from the external side of the front cover.

3. Disconnect the lens from the sleeve by gently pushing the lens clips that secure it to the

sleeve.

4. Replace the lens. Place the 4 clips of the lens into the matching holes on the sleeve.

5. Insert the protective sleeve back into place on the front cover. Pay attention to place the

sleeve over the sealing rubber.

6. Secure the 6 holding screws back to their place.

Lens Protecting

Sleeve

Sockets for

Lens Clips

Sleeve Locking

Screws

Lens Locking

Clips

Sealing Rubber

Front Cover

Locking Screw
