The Station List and Station Map
5-2 The Station List Window

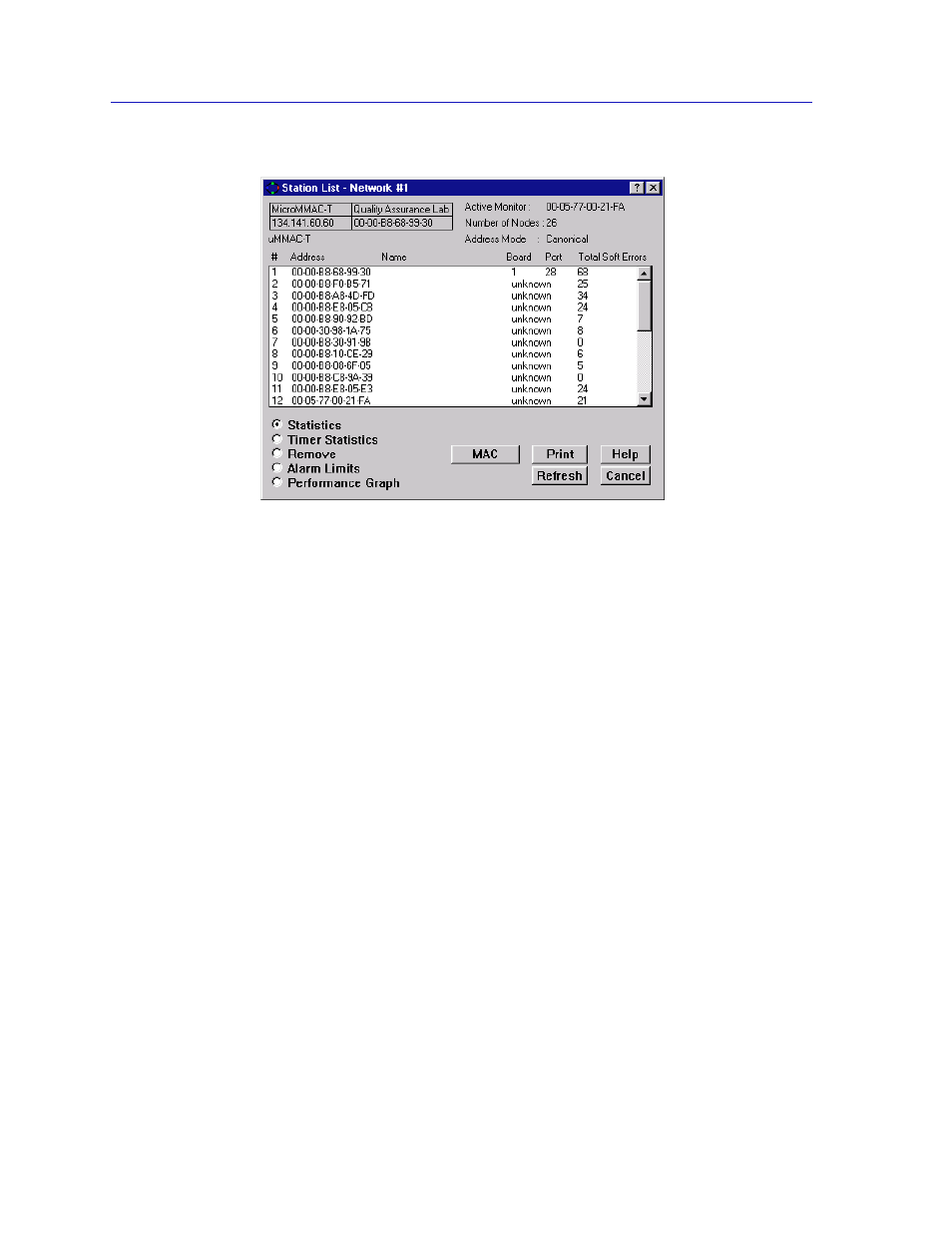

Figure 5-1. The Station List Window
Station List Window Fields
The Station List window contains the following fields:
General Fields
Active Monitor
The physical address of the current active monitor on the ring you are monitoring.
Note this address always displays in Canonical format.
Number of Nodes/Stations
The number of stations inserted into the ring that you are monitoring.
Address Mode
The Address Mode display of the listed stations, as selected by the MAC button at
the bottom of the window. This field displays either MAC (Ethernet format) or
Canonical (Token Ring format). Note that the label on the Address Mode button
will display the address mode not currently in use.
