Network Level Statistics 3-5
Token Ring Statistics
Ring Speed
The operating speed (4 Mbit/sec or 16 Mbit/sec) of the current ring.

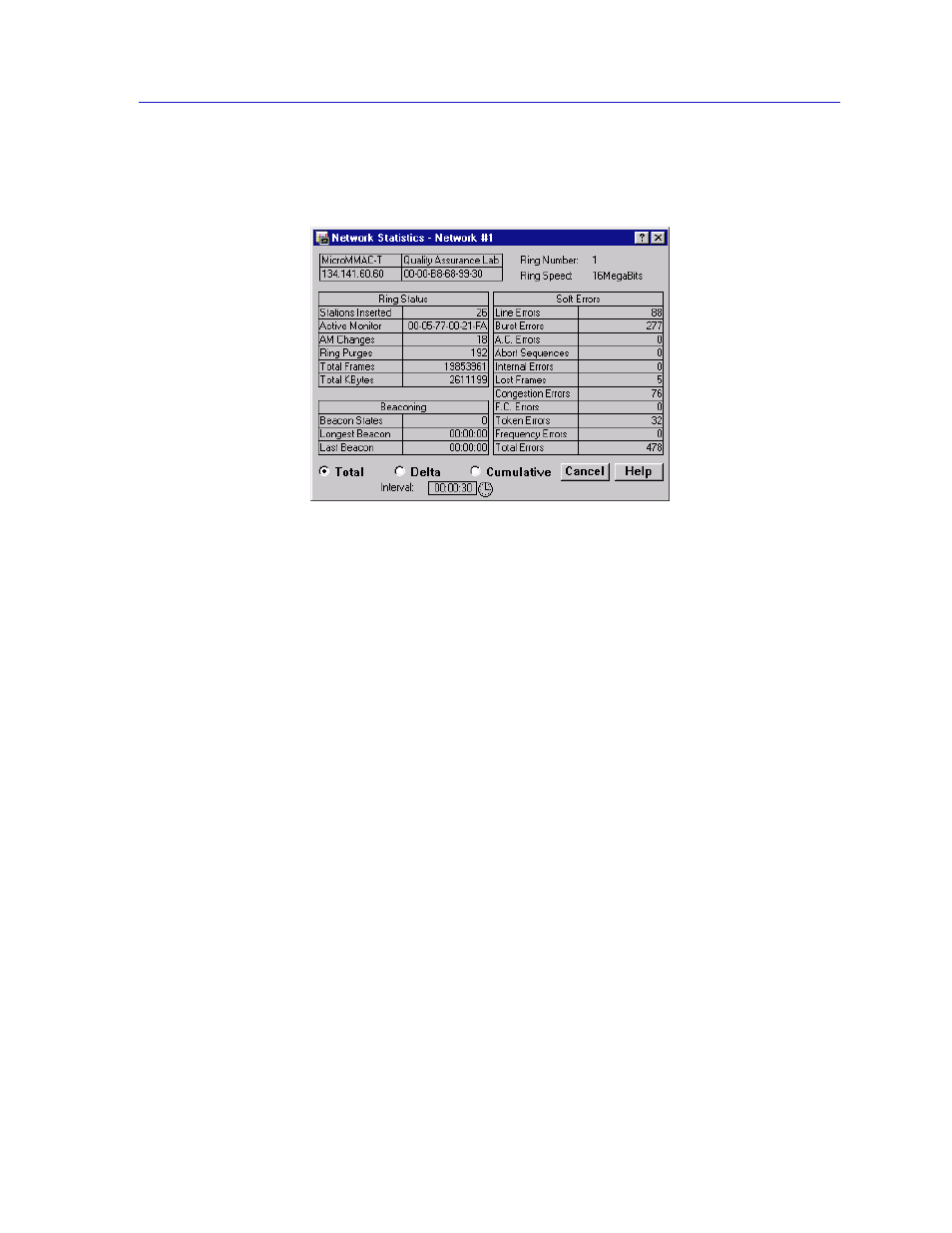

Figure 3-4. The Network Statistics Window
By using the radio buttons located at the bottom of the Network Statistics
window, you can choose whether to view the statistics gathered since the
MicroMMAC-T was last started up (Total), counted during the last polling
interval (Delta), or accumulated from zero at a user-defined point (Cumulative).
See
Setting Total, Delta, or Cumulative Counts , page 3-1 , for details.
Set the time interval to update information (from 1 second to 23 hours, 59
minutes, 59 seconds) by using the clock symbol at the bottom of the window. See
Setting the Statistics Poll Interval , page 3-3 , for details.
Ring Status Fields
Ring Status fields include:
Stations Inserted
Displays the total number of stations that are currently inserted on the ring. This
number indicates all stations, regardless of whether they are connected to the
MicroMMAC-T hub.
Active Monitor
Displays the MAC address of the active monitor on the ring.
AM (Active Monitor) Changes
Displays the number of times the active monitor has changed on the ring.
