The MicroMMAC-T Chassis View
2-2 Viewing Chassis Information
Viewing Chassis Information
The MicroMMAC-T Chassis View window ( Figure 2-1 ) provides a graphic
representation of the MicroMMAC-T’s front panel, including a color-coded port
display which immediately informs you of the current configuration and status of
all station and ring ports on the device.

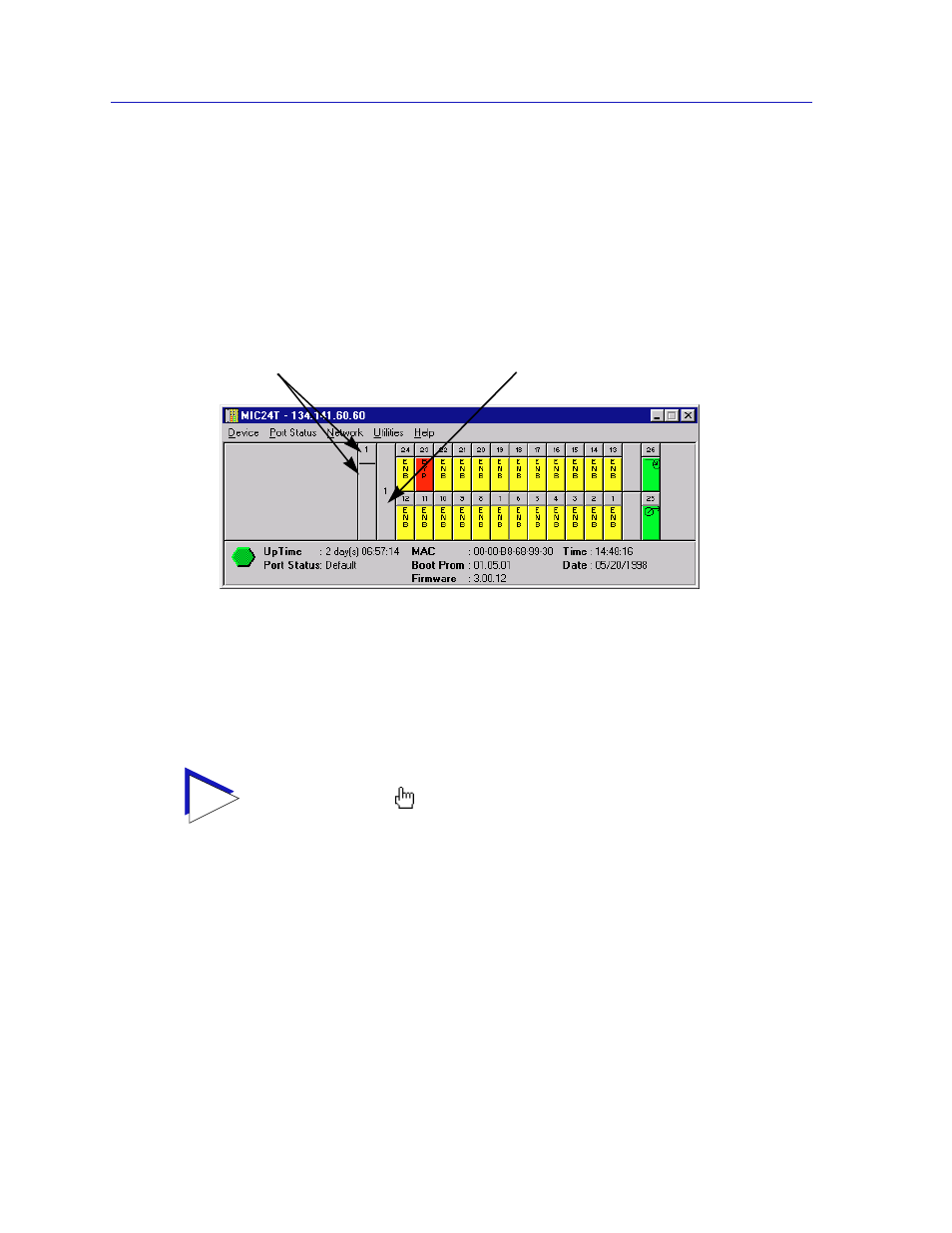

Figure 2-1. MicroMMAC-T Chassis View Window
By clicking in designated areas of the chassis graphical display (as detailed later
in this chapter), or by using the menu bar at the top of the Chassis View window,
you can access all of the menus that lead to more detailed device-, network-,
module-, and port-level windows.
TIP
When you move the mouse cursor over a management “hot spot” the cursor icon will
change into a “hand” (
) to indicate that clicking in the current location will bring up a
management option.
Click on the module number to
change the Chassis View to display
a different module in the
MicroMMAC-T controlled stack. The module index will change to reflect
which module in the stack is currently
displayed. Click here to view the menu
for the displayed module.
