The Station List and Station Map
5-12 The Station Map
Rotating the Station Map
You can use the scroll bar to rotate the station map, as follows and as illustrated in
Figure 5-5 :

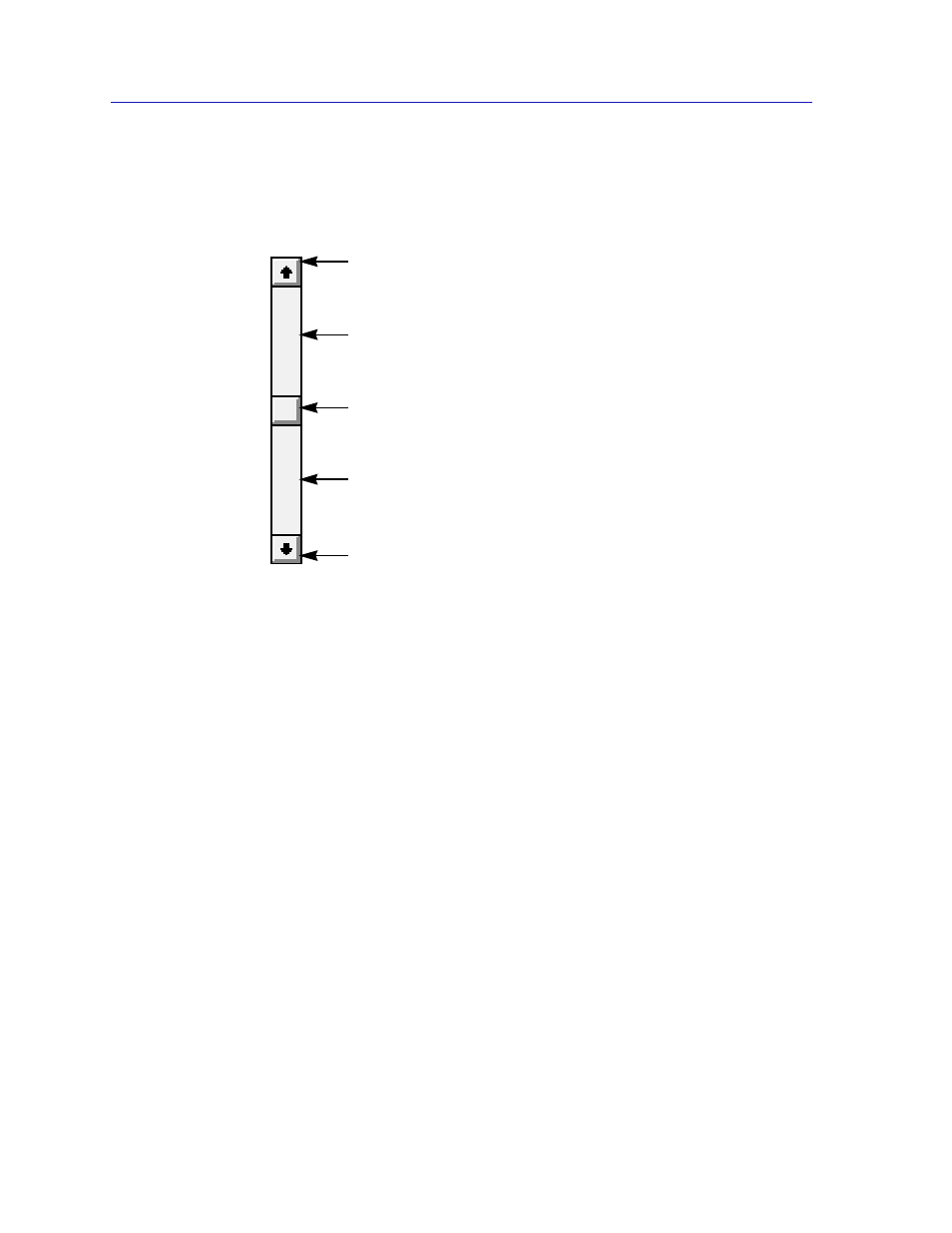

Figure 5-5. Using the Scroll Bar to Rotate the Ring
Scroll Bar Up Arrow Rotates the ring counterclockwise by one station
Scroll Bar Down Arrow Rotates the ring clockwise by one station.
Scroll Box If dragged up, rotates the ring counter-clockwise by
a number of stations proportional to the amount of
movement.
If dragged down, rotates the ring clockwise
by a number of stations proportional to the amount
of movement.
Once the scroll box reaches its upper or lower limit,
you can only continue scrolling in the same direction
by using the scroll arrows.
Page Up
(Click on Track
Above Scroll Box) Rotates the ring counterclockwise by 5 stations. If
there are 5 or fewer stations on the ring, the ring will
rotate by the total number of nodes minus one.
Page Down
(Click on Track
Below Scroll Box) Rotates the ring clockwise by 5 stations. If there are 5
or fewer stations on the ring, the ring will rotate by
the total number of stations minus one.
Click to rotate ring counterclockwise
by one node
Click to rotate ring counterclockwise
by five (or fewer) nodes
Drag to rotate the ring counterclockwise or
clockwise in proportion to scroll length
Click to rotate ring clockwise by five
(or fewer) nodes
Click to rotate ring clockwise by one node
