The MicroMMAC-T Chassis View
2-36 Viewing I/F Summary Information

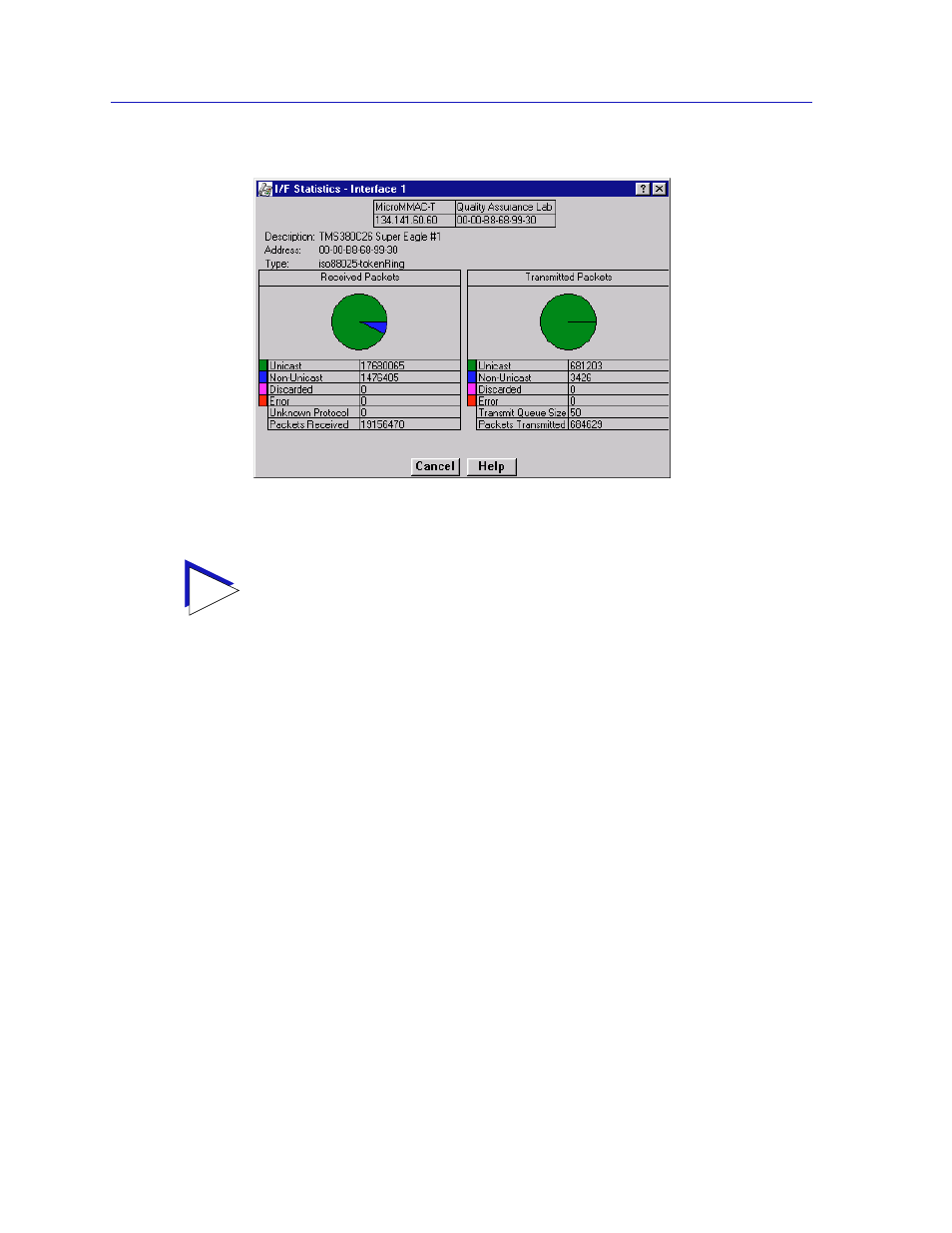

Figure 2-18. Interface Detail Window
Three informational fields appear in the upper portion of the window:
Description
Displays the interface description for the currently selected interface: Ethernet.
Address
Displays the MAC (physical) address of the selected interface.
Type
Displays the interface type of the selected port: ethernet-csmacd.
The lower portion of the window provides the following transmit and receive
statistics; note that the first four statistics are also graphically displayed in the pie
charts.
Unicast
Displays the number of packets transmitted to or received from this interface that
had a single, unique destination address. These statistics are displayed in the pie
chart, color-coded green.
TIP
You can also access this information via the I/F Statistics option available on the
individual port menus; see Chapter 3,
Token Ring Statistics , for more information.
