The MicroMMAC-T Chassis View

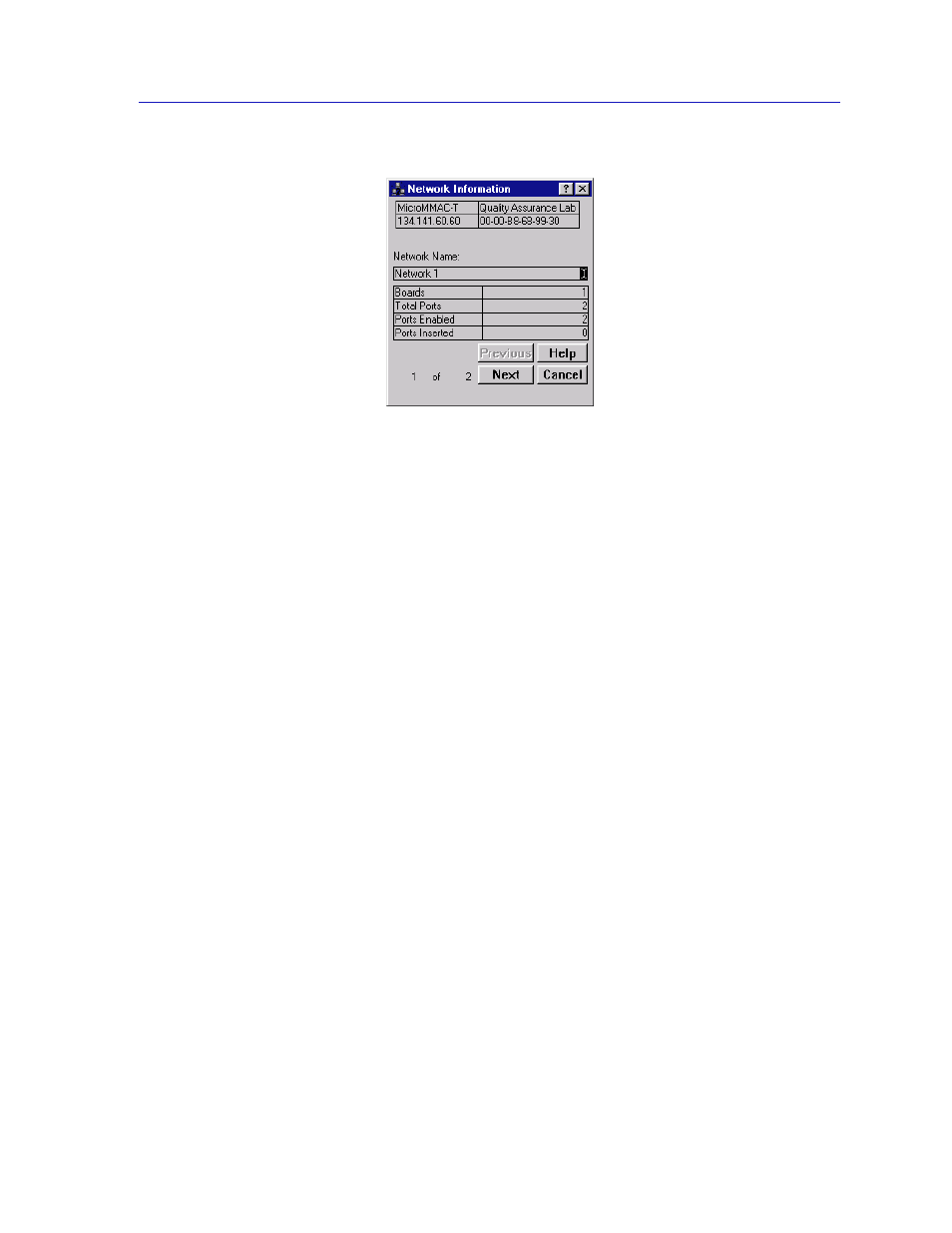

Figure 2-9. The Network Information Window
Network Information Window Fields
Network Name
This field allows you to assign a name to the selected ring network; to do so,
simply click on the I-bar cursor, and enter the desired name in the resulting
window.
Boards
This field indicates the number of modules that compose the selected ring
network.
Total Ports
This field indicates the number of available ports (including ring ports and station
ports) on the modules composing the currently selected ring network; note that
this count includes only those inserted stations physically present in the same hub
as the MicroMMAC-T, and only those which are part of the MicroMMAC-T’s
management domain.
Ports Enabled
This field indicates the number of ports in the current ring network that are
enabled by network management; note that this count includes only those
inserted stations physically present in the same hub as the MicroMMAC-T, and
only those which are part of the MicroMMAC-T’s management domain.
Ports Inserted
This field indicates the number of ports in the current ring network that are
inserted and enabled by management; note that this count includes only those
inserted stations physically present in the same hub as the MicroMMAC-T, and
only those which are part of the MicroMMAC-T’s management domain.
