The MicroMMAC-T Chassis View
2-20 Managing the Hub
X (Ring) of X (Configured Rings)
This field indicates the currently selected ring and the number of configured rings
in the hub.
Viewing Module Status
The Token Ring Board Status window ( Figure 2-10 ) updates you on the condition
of a selected module in the HubSTACK. To access the Token Ring Board Status
window:
1. Click on the Module Index for the desired module. The Module menu will
appear.
2. Drag down to Status.... The Token Ring Board Status window will appear.

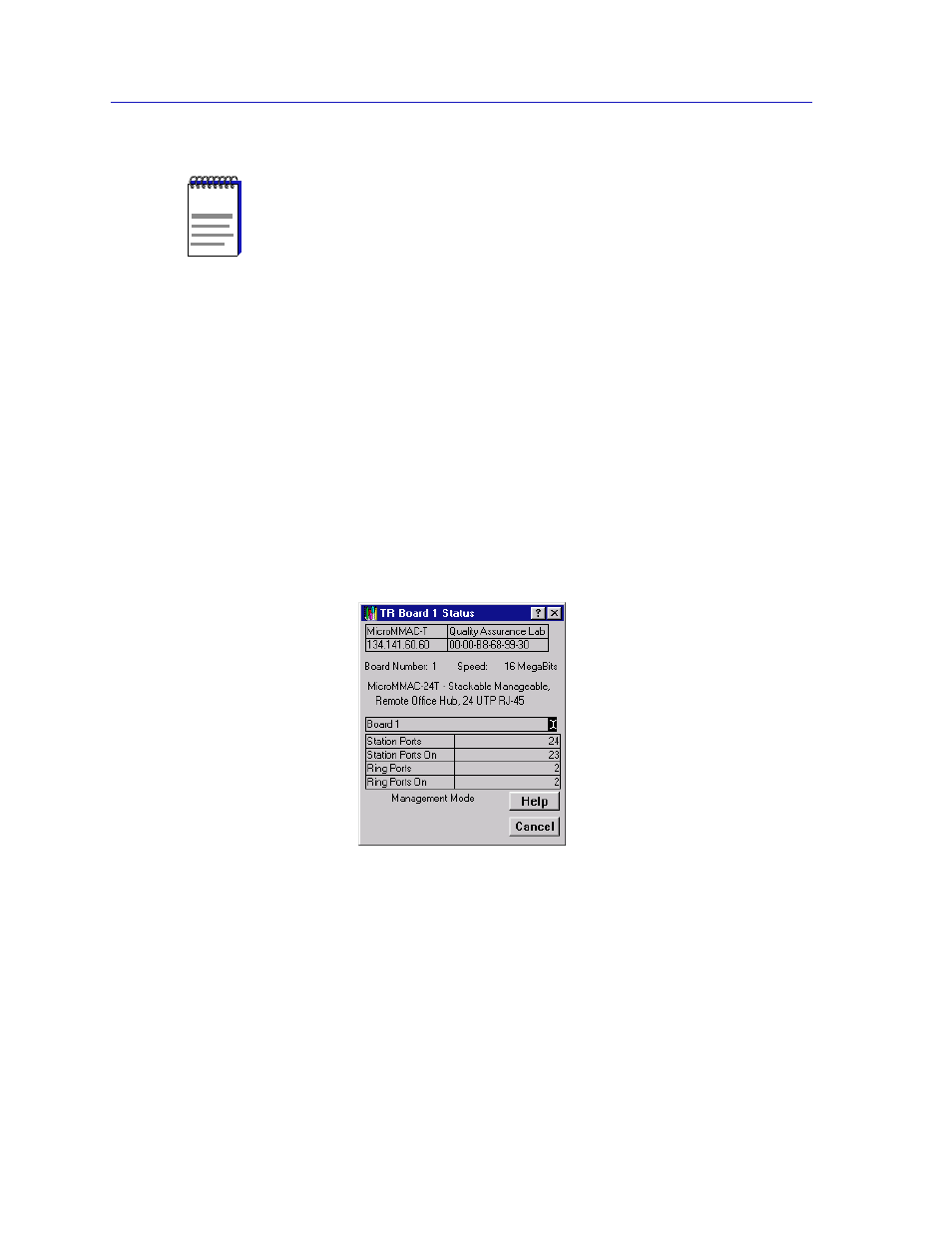

Figure 2-10. The Token Ring Board Status Window
Token Ring Board Status Window Fields
Board Number
The HubSTACK Interconnect Bus port number on the MicroMMAC-T occupied
by the currently selected module.
Speed
The ring speed (4 or 16 MBits/sec) for which the module is configured.
NOTE
For a complete count on the total number of ports and the number of ports enabled and
inserted — including those not physically residing in the hub — see Network Statistics
in Chapter 3.
