Assembly of the Connection with One Terminal Lug

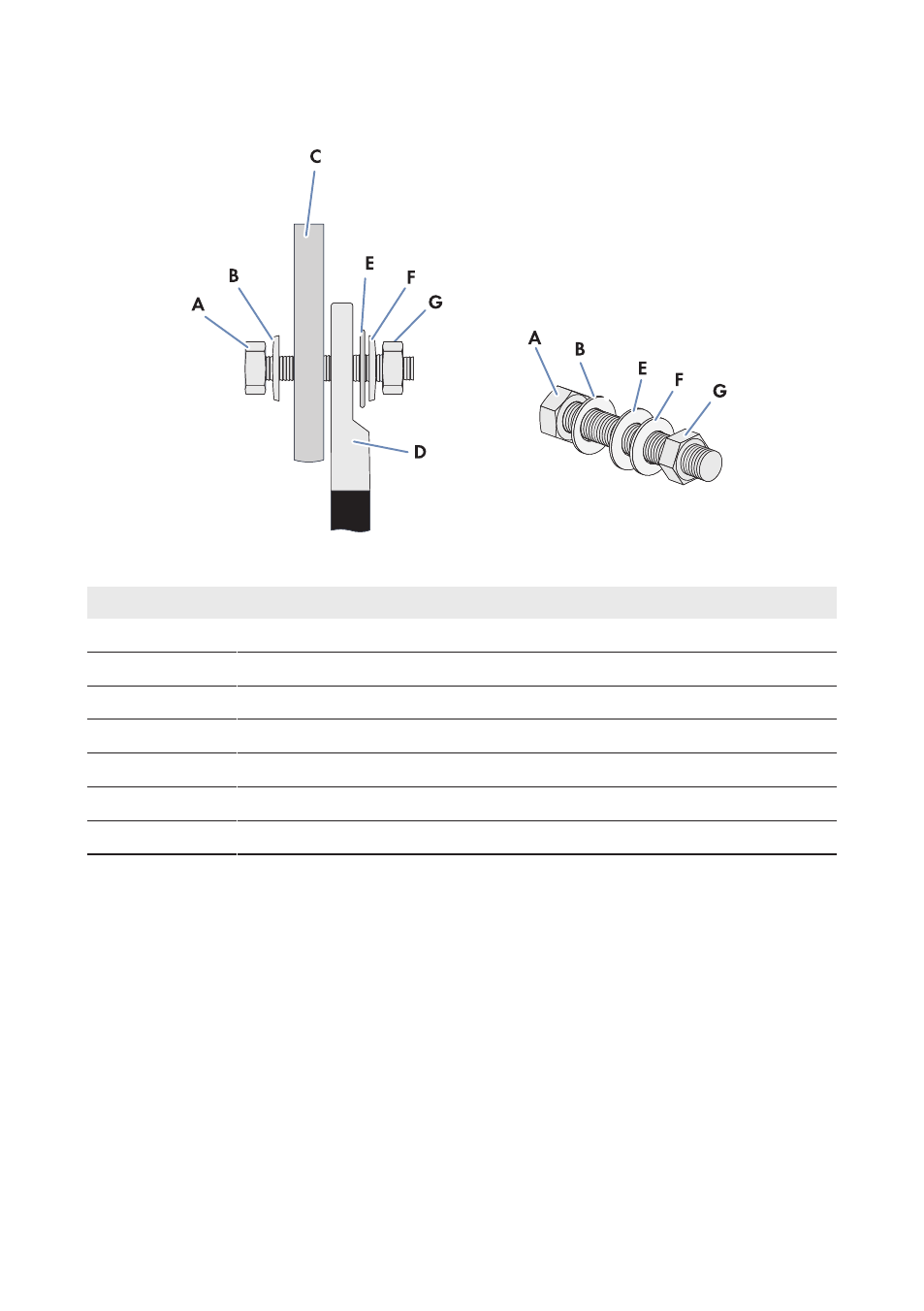

Figure 12: Assembly of the Connection with One Terminal Lug
Position
Designation
A
Screw M12
B
Washer
C
Tin-plated copper busbar
D
Tin-plated tube terminal lug
E
Fender washer
F
Spring washer
G
Nut M12
