Dimensions and anchoring points:

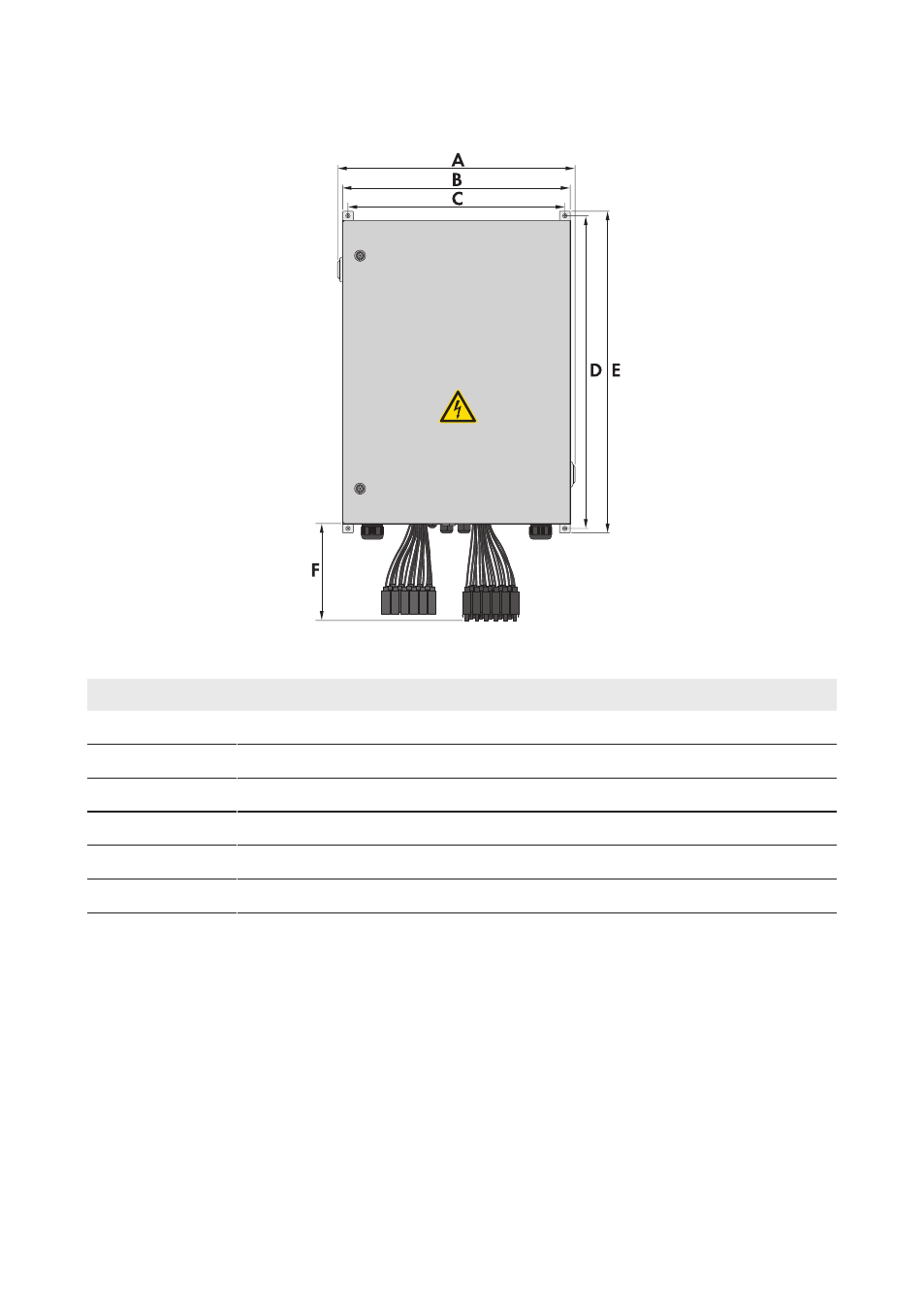

Figure 8: Dimensions and anchoring points

Position

Explanation

A

630.00 mm

B

600.00 mm

C

573.00 mm (space between anchoring points)

D

825.60 mm (space between anchoring points)

E

850.00 mm

F

250.00 mm

5 Mounting

SMA Solar Technology AG

Operating Manual

SSMUXX15-BE-en-10

22
