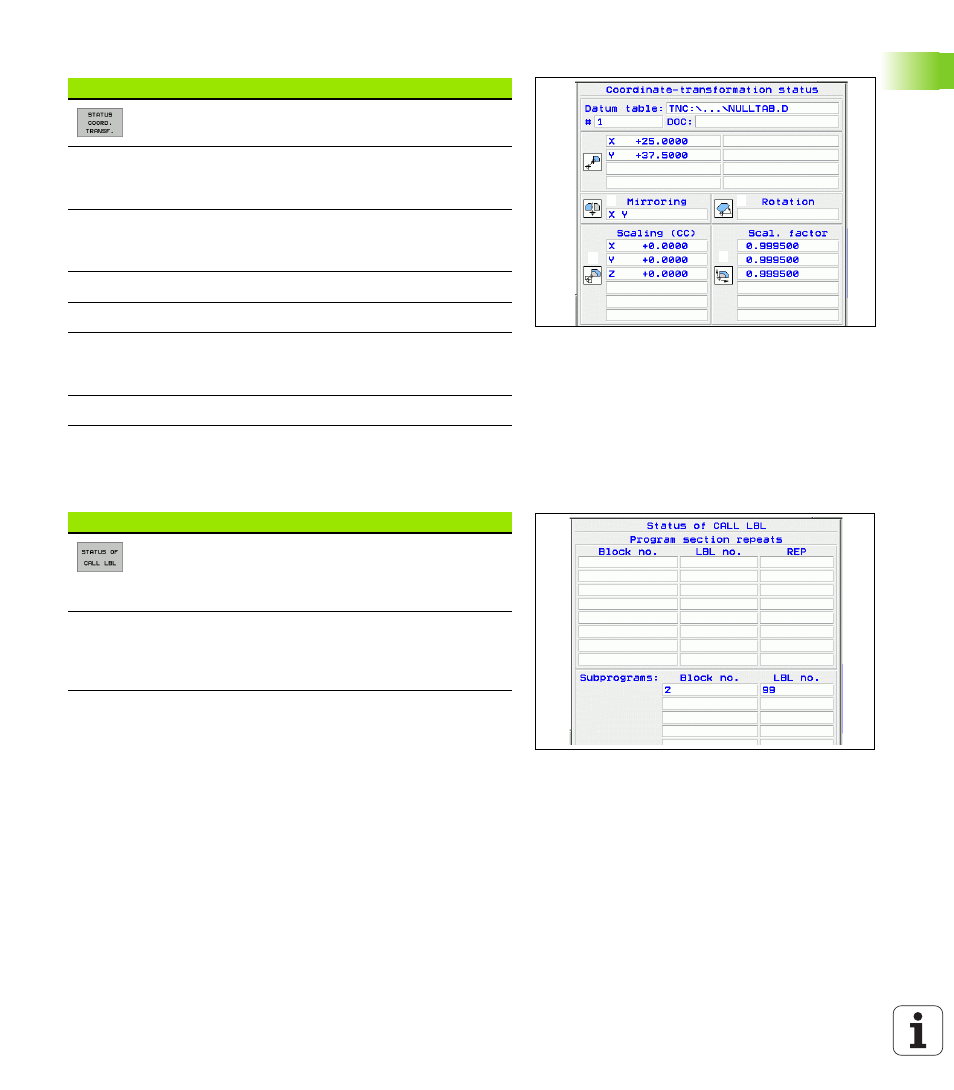

Coordinate transformations
See “Coordinate Transformation Cycles” on page 456.
Program section repeat/Subprograms
Soft key Assignment Meaning
1 Name of the active datum table
2 Active datum number (#), comment
from the active line of the active
datum number (DOC) from Cycle 7
3 Active datum shift (Cycle 7); The TNC
displays an active datum shift in up to
8 axes
4 Mirrored axes (Cycle 8)
5 Active rotation angle (Cycle 10)
6 Active scaling factor/factors (Cycles
11 / 26); The TNC displays an active
scaling factor in up to 6 axes
7 Scaling datum
Soft key Assignment Meaning
1 Active program section repeats with
block number, label number, and
number of programmed repeats/
repeats yet to be run
2 Active subprogram numbers with
block number in which the
subprogram was called and the label
number that was called
6 7
5 4
3
1
2
1
2
