Acappella — Instruction Manual 73
Acappella Configuration Pages
Router Video Configuration Page (With Frame Sync)
The A84HR-CLP 8x4 HD Router with Clean Switch Acappella hardware
has a Router Video Configuration page similar to
Figure 26 .
Destinations DST 1 and DST 2 are read-only fields and reported as
Auto (Default) and the Output column is reporting the present video format
detected on this output. The Frame Sync column will report if the FS-1
function is
Present or Not Present . All of this information comes from the
Video Frame Sync Configuration web page ( Figure 27 on page 75 ).
Note Frame Sync FS-2 is not active at this time.

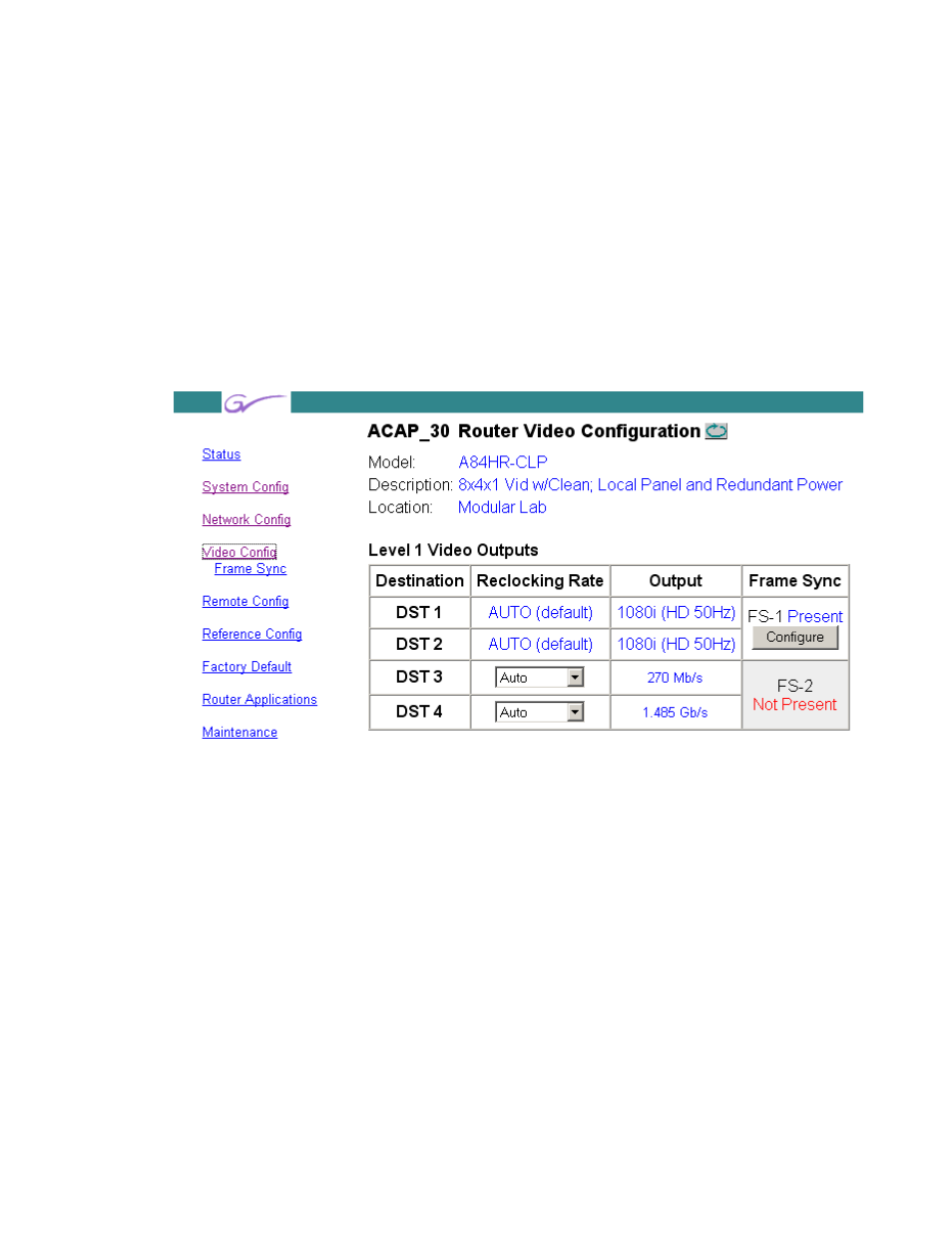

Figure 26. .Acappella Video Config Web Page
Select the Configure button in the Frame Sync column (or use the Frame Sync
link under the Video Config link on the left) to access the Video Frame Sync
Configuration web page (see
page 74 ).
