Acappella — Instruction Manual 41
Acappella Cabling
Analog Audio Pinouts
Phoenix style connectors are used for wiring analog audio. Space limita-
tions required the bottom row of connectors be oriented upside down, but
the removable connectors are wired the same regardless of row used.

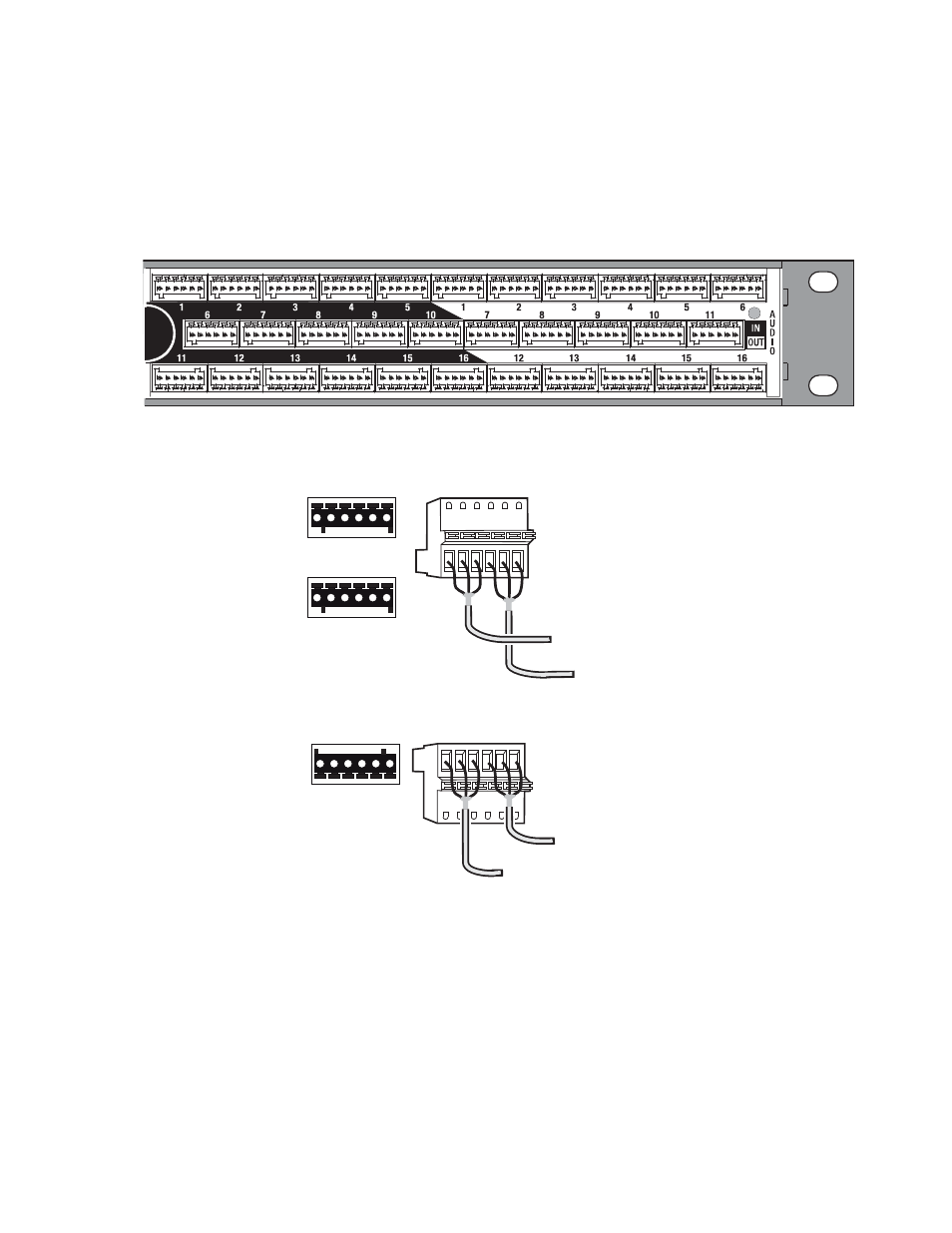

Figure 33. Analog Audio Backplane
Figure 34. Phoenix Connector Pinouts for Stereo Analog Audio
8300_02_54_r0
+ - G + - G
A B
Ch A (Left)
Ch B (Right)
+ - G + - G
Top 2 Rows (connector right side up)
Bottom Row (same connector upside down)
G - + G - +
B A
Ch A (Left)
Ch B (Right)
8300_02_56_r0
