Acappella — Instruction Manual 43
Acappella Cabling

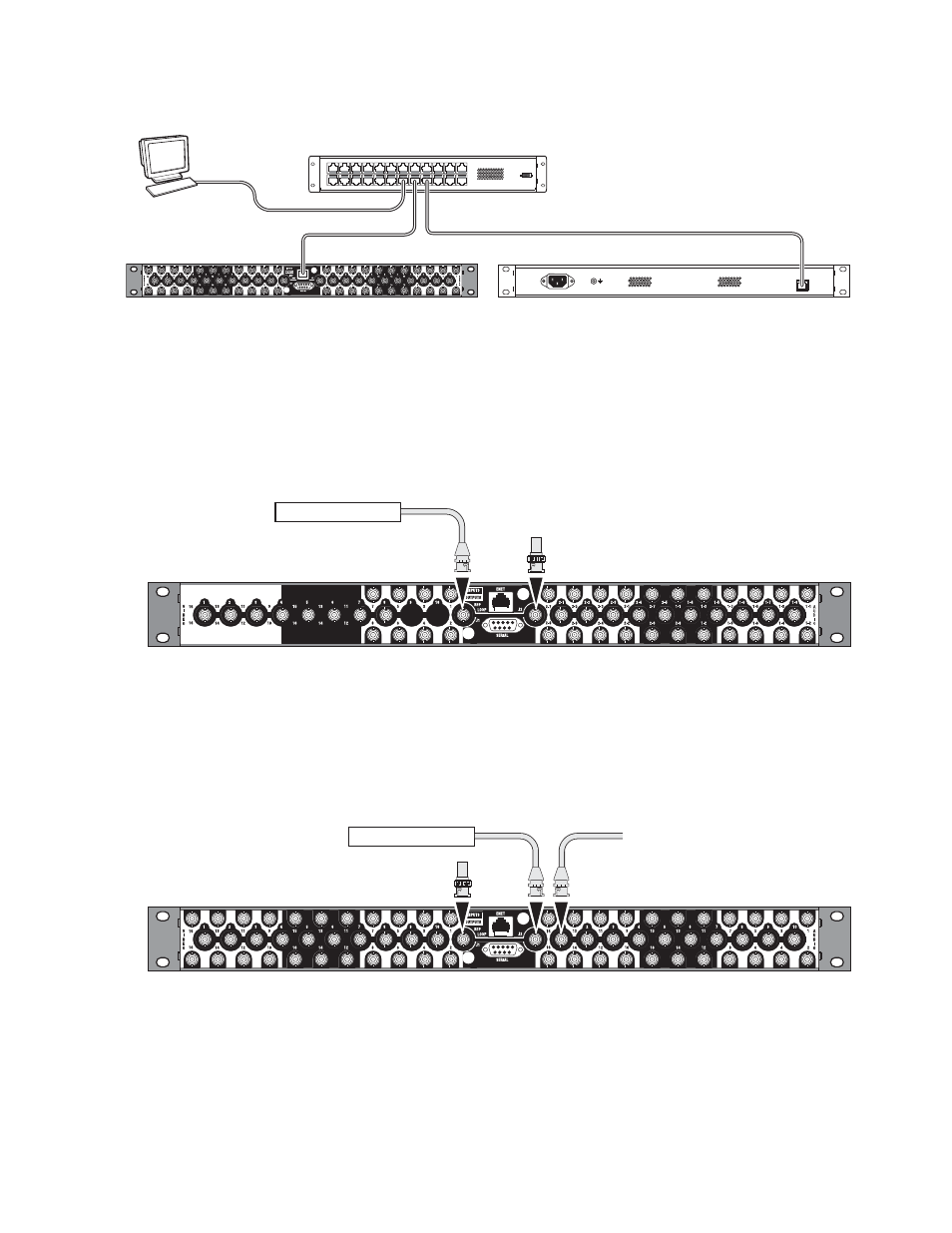

Figure 35. Ethernet Cabling
Reference Cabling
Reference signals are loop-thru with the end of the chain terminated. Color
Black or Tri-Level Sync signals are used. The Reference shown in
Figure 36
is the default cabling for plug and play.
Figure 36. Video Reference Connections
See Router Reference Configuration Page on page 88 to select AES Src 1
instead of the Color Black or Tri-Level Sync Reference. Web Page configu-
ration is required
In Figure 37 a Continuous AES Signal is connected to Audio Input 1.
Figure 37. Reference Signal Cabling Option for Single Stream Audio
8300_01_44
Acappella Remote Control Panel
Ethernet Switch
PC-compatible
8300_00_50
75 ohm
Terminator
Reference Generator
8300_00_39
75 ohm Terminator
Reference Generator AES Signal
