Acappella — Instruction Manual 71
Acappella Configuration Pages
Router Video Configuration Page (Non Frame Sync)
The Router Video Configuration page is used to set parameters on a Desti-
nation by Destination basis. This web page on Non Frame Sync Acappella
systems is similar to
Figure 25 .

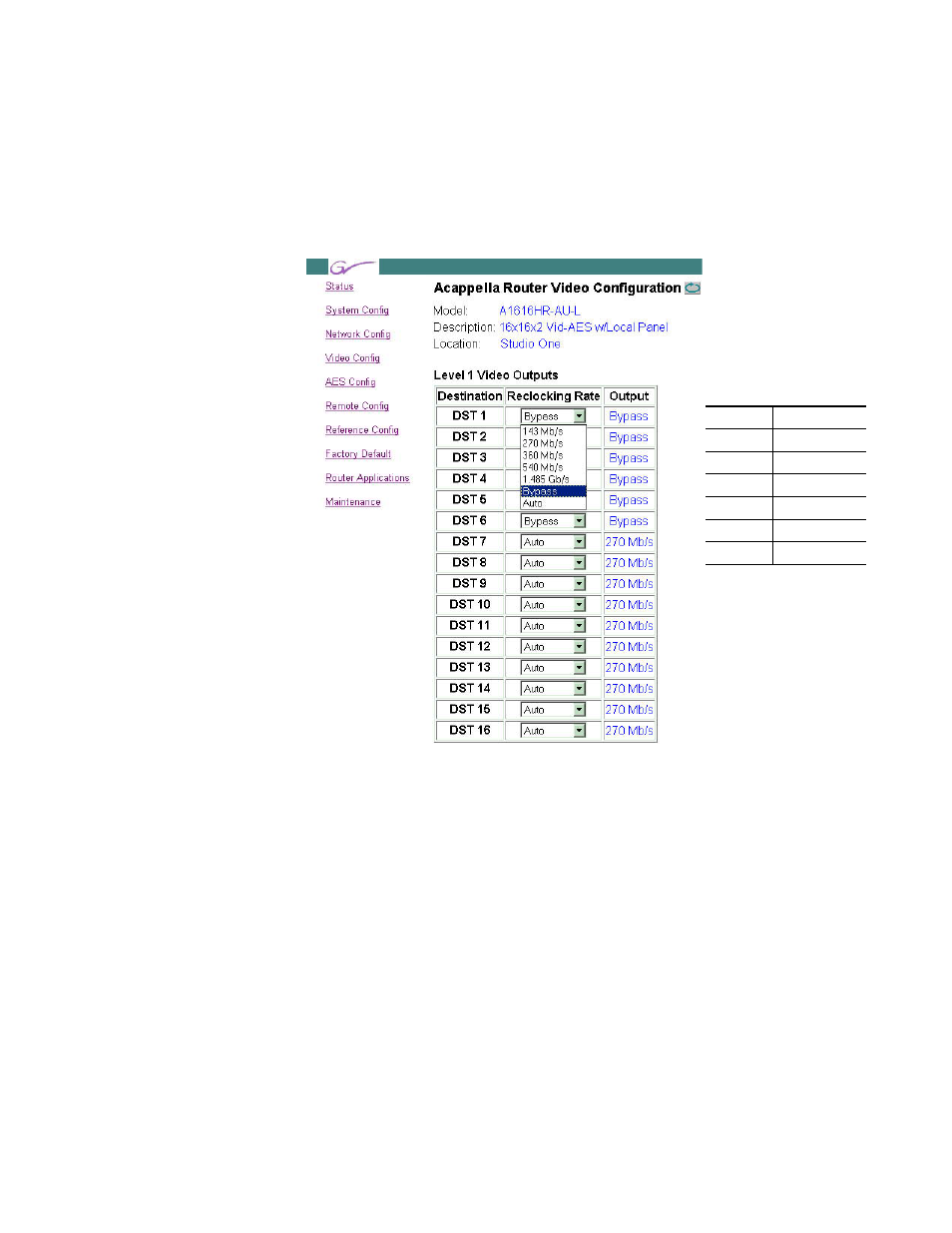

Figure 25. Router Video Configuration Page
Note Analog Video Acappella systems do not display a Video Configuration Page
because there are no user adjustments of the analog video.
On Digital Video systems, the Router Video Configuration Page will not
appear unless the Acappella router has a video level.
The default setting is Auto .
Auto reclocking will lock to a signal rate of either 143 Mb/s, 270 Mb/s, 360
Mb/s, 540 Mb/s, or 1.485 Gb/s (1.485 Gb/s is HD Wideband).
Bypass will pass the signal without reclocking.
Selecting a signal rate such as 270 Mb/s will cause the Output to lock to the
selected signal rate. If the incoming signal is not the selected rate the
Output will be put into Bypass mode. For example, if the incoming signal
is 1.485 Gb/s and the reclocking rate selected is 540 Mb/s which is incor-
Table 2. Rates
143Mb/s SD or Wideband
270 Mb/s SD or Wideband
360 Mb/s SD or Wideband
540 Mb/s SD or Wideband
1.485 Gb/s HD only
Bypass Non-reclocking
Auto Reclocking
