5.3 Service Box
(1) Capacitors
• The capacitors are used to temporarily boost the power output available to the fan motors and
the compressor at start-up.
• The specifications of each capacitor are listed below:
(2) Terminal blocks
• There are three terminal blocks in the service box, a power terminal block used for the power
line connection, and two low signal terminal blocks used for external thermostat and signal
connections.
Capacitor Application Voltage Rating Capacitance
Fan Motors 370 VAC 7.5 μF
Compressor Motor 370 VAC 60 μF

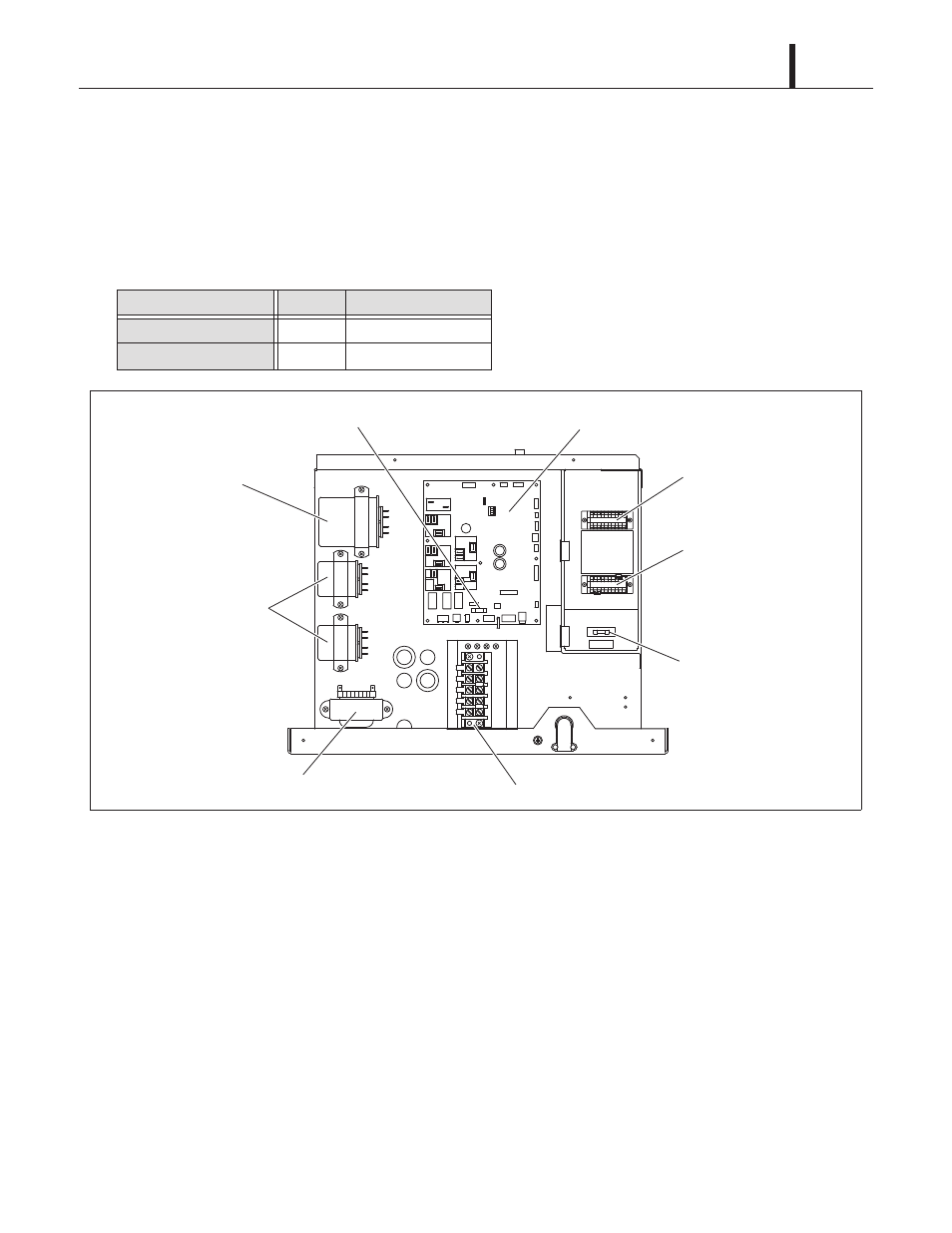

ILL00863-00
Terminal Block 1 (For Power)
Relay Board
Relay Board Fuse (F2)
(1 A, 250 V)
Terminal Block 2
(For Input/Output Signal)
Terminal Block 3
(For External Thermostat)
Fuse (F1)
(1.5 A, 250 V for
4-Way Valve,
Drain Pan Heater of
Outdoor Heat Exchanger)
Compressor Motor
Capacitor
Transformer (For Relay Board)
Fan Motor Capacitor
