Operation Section
25
4. REFRIGERATION SYSTEM

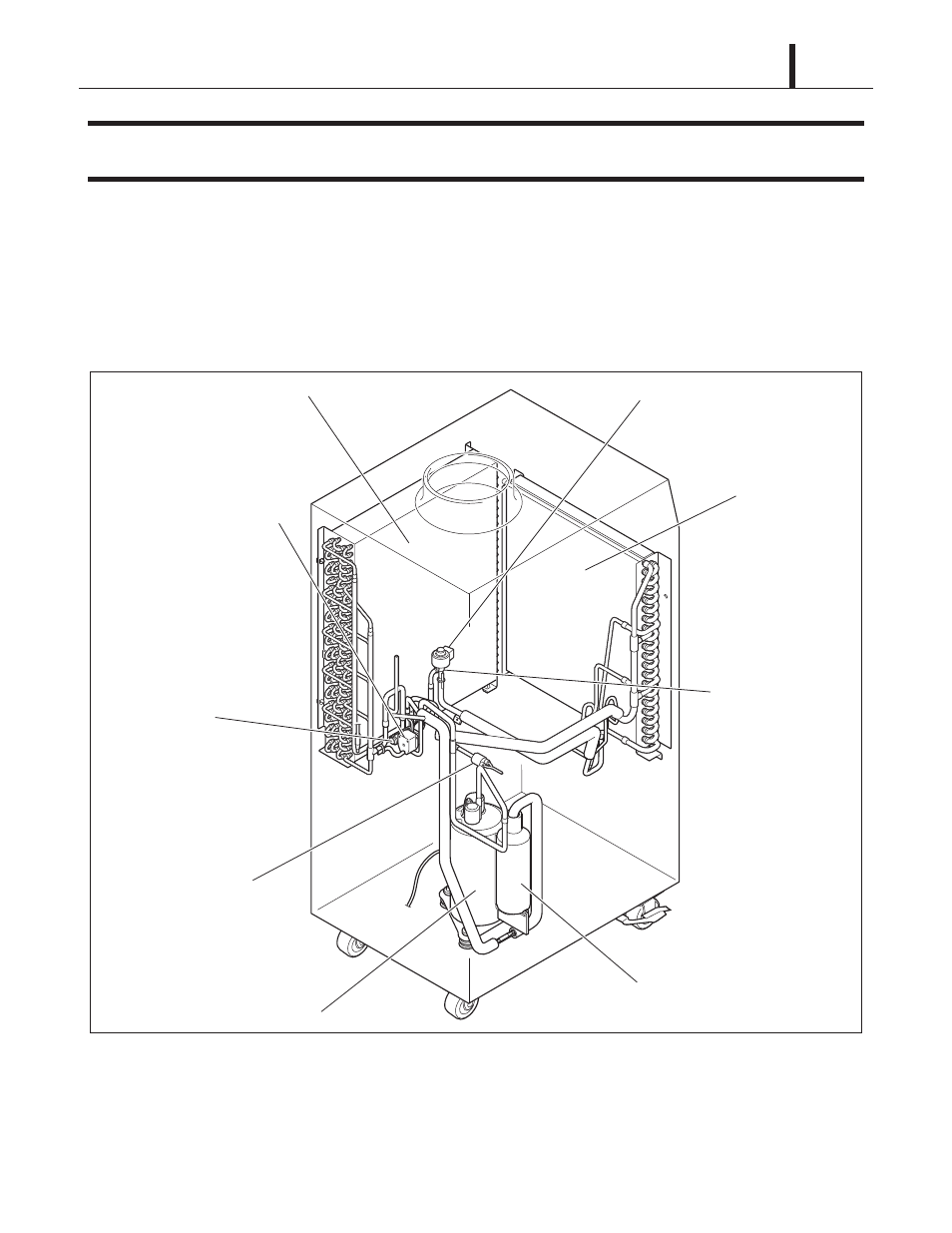

4.1 Refrigeration System Construction
The component parts of the refrigeration system include the following:
• Compressor, Accumulator, Indoor and Outdoor heat exchangers, High pressure switch,
Electronic expansion valve with controller, 4-Way valve with controller
These parts are all connected by copper tubing. All the connections have been brazed.
ILL00860-00
High Pressure Switch
Indoor Heat
Exchanger
Accumulator
Electronic Expansion
Valve
Electronic Expansion
Valve Controller
Outdoor Heat Exchanger
4-Way Valve Controller
Compressor
4-Way Valve
