Page 182
182
Appendix A Protocol Configuration Using Discrete Messages
route. See the MTP3 Programmer's Manual for the message definition. Wait for the confirmation message
and check the status.
Proceed now with the User Part configuration procedure. Once this is complete, issue an MTP Link Activation
Request (MTP_MSG_ACT_SL) for each link in the system as required to bring the link into service.
Further links, link sets and routes may be dynamically added at runtime using the same message sequences.

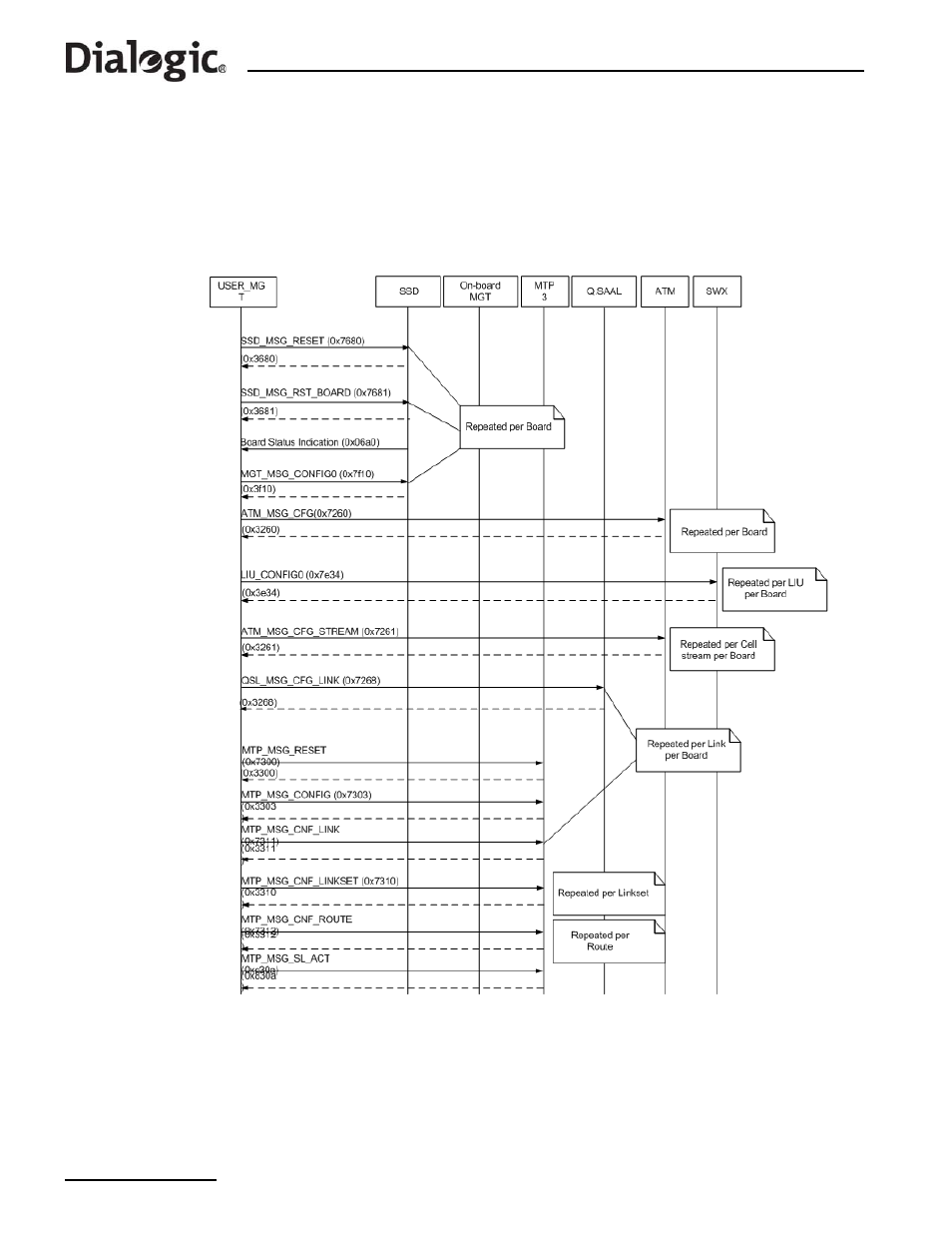

Figure 4. Q.SAAL Configuration Message Sequence Diagram
