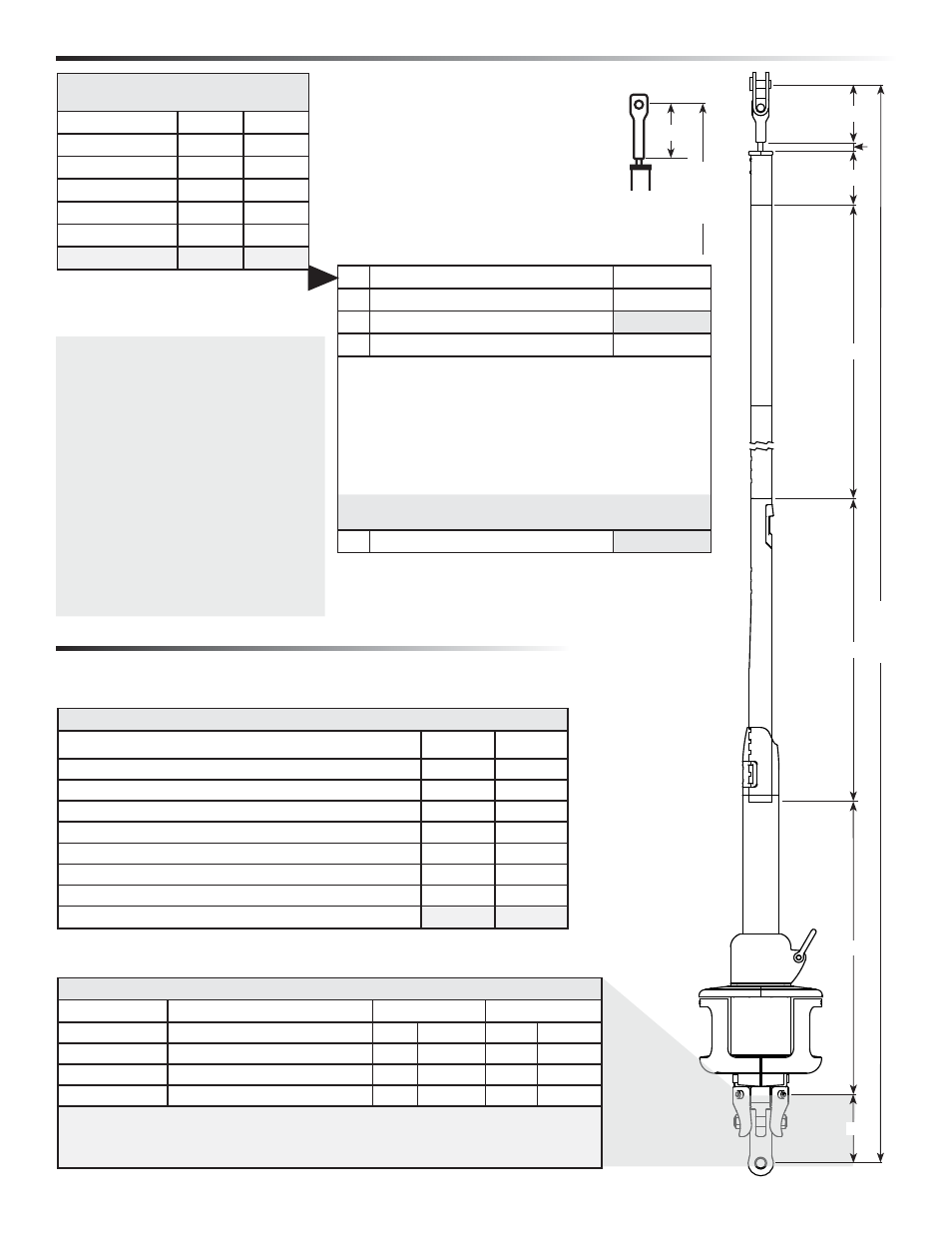

Preassembly Unit 3—Top Foil Length
MKIV unit 3 9
Length chart
Dimensions Inches mm
A Center of pin to bottom of terminal
B Bottom of terminal to top of foil
1"* 25*
C Top foil length
D Number of foils ________ x 2133.6 mm (84")
E Bottom foil
24" 610
F Bottom of foil to hub extension holes 22.25" 565
G Hub extension holes to clevis pin
Pin-to-pin length
*Add 29 mm (1.12") if using a halyard deflector.
Make sure upper
measurement points
of A and pin-to-pin
are the same.
1 Pin-to-pin length
2 Subtract ABEFG –
3 Result (pin-to-pin – ABEFG)
4 Subtract D –
To find “D”, pick number from chart below that is closest
to, but not greater than total from step 3.
Inches mm
7 x 84 = 588
8 x 84 = 672
9 x 84 = 756
10 x 84 = 840
11 x 84 = 924
7 x 2133.6 = 14935.2
8 x 2133.6 = 17068.8
9 x 2133.6 = 19202.4
10 x 2133.6 = 21336
11 x 2133.6 = 23470
Example–If result from Step 3 is:
800 inches “D” = 756 inches; 20,000 mm “D” = 19202 mm
5 Result (C) top foil length
After completing worksheet above fill in A, C, D, and G below. Add
“A” through “G” to confirm total equals your pin-to-pin measurement.
Length Check
Alternate
measurement
point
A
Pin
to
pin
TOP FOIL LENGTH WORKSHEET
G: Toggle distance from lower clevis pin to hub extension holes
Toggle part no. Type Clevis pin G distance
7413.20 3/4 Jaw/jaw with short link plate 3 /
4
" 19.1 mm 5.42" 138 mm
7313.20 7/8 Jaw/jaw with short link plate 7 /
8
" 22.2 mm 6.00" 152 mm
7313.21 3/4 Long link plate w/toggle 3 /
4
" 19.1 mm 22.00" 559 mm
7313.21 7/8 Long link plate w/toggle 7 /
8
" 22.2 mm 22.63" 575 mm
Note: If long link plate is shortened, dimension must be changed or foil will be
too short. Measure distance from hub extension holes down to where clevis pin
attaches toggle to boat. Use this dimension in G above.
UNIT 3
A
C
D
E
F
Pin
to
in
B
G
Measure A and add to this chart
and length chart below
Inches mm
A
B
1* 25*
E 24 610
F 22.25 565
G
Total A+B+E+F+G
*Add 29 mm (1.12") if using a halyard
deflector.
