Harken 7413.10 MKIV Jib Reefing & Furling built after Feb. 2009 - Manual (Page 15)

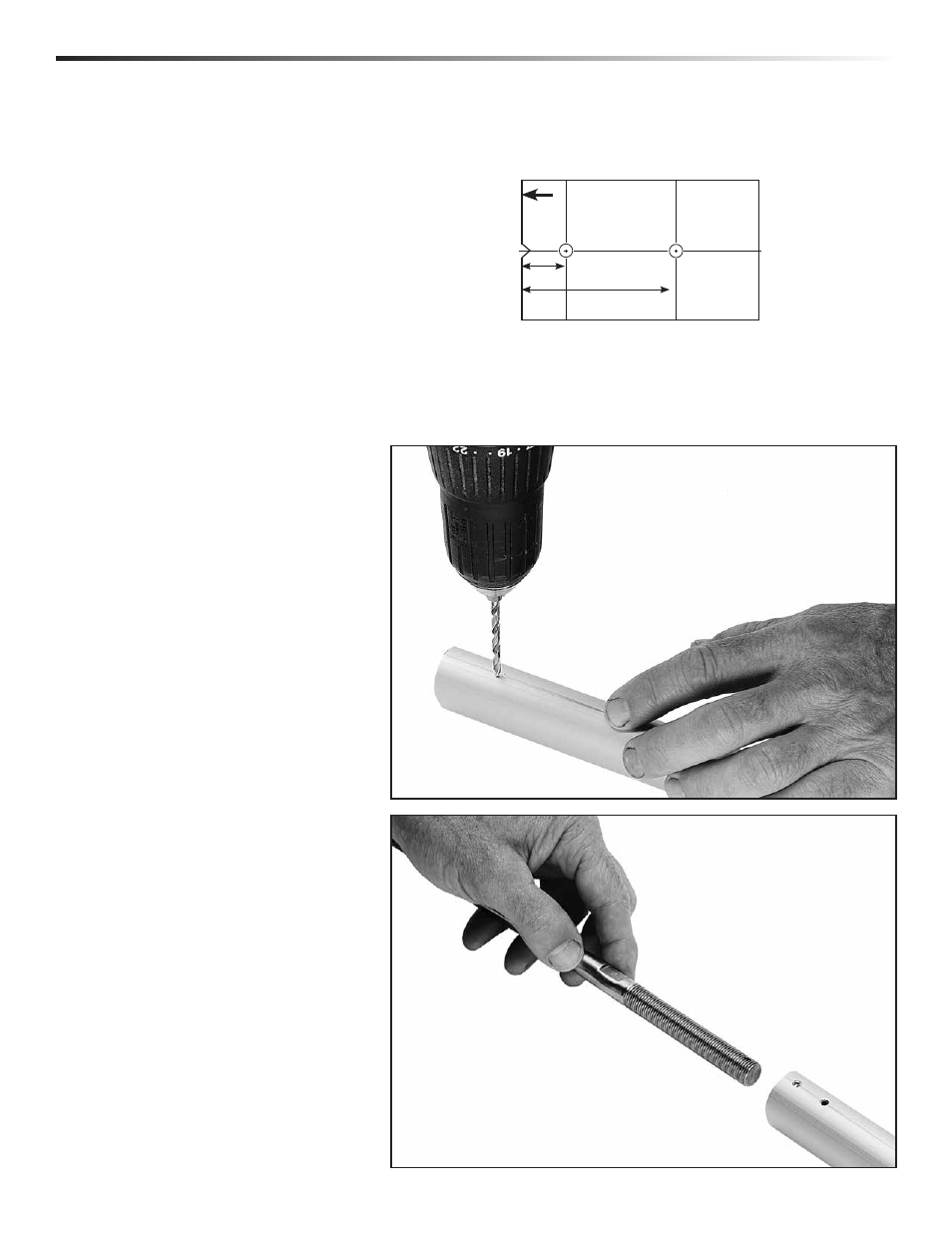

Assembly Top Foil
Cut out template at right. Line up template with
top of foil and scribed line. Tape in place. Use
center punch to mark holes.
Check center punch marks to confirm
they are 10 mm ( 3 /
8
") and 35 mm (1 3 /
8
")
from top of foil.
Drill two (2) 4 mm ( 5 /
32
") holes for
trim cap.
Lay top foil in line with others. Slide stay into
top foil and down line of foils, or slide each foil
up stay.
MKIV units 3, 4 15
Foil top
!
35 mm (1 3 /
8
")
10 mm ( 3 / 8 ")
Unit 3, 4 template
