Gasboy 9800Q Series Diagnostic Manual User Manual
Page 68
GASBOY Series 9800Q
5-12
01/28/04

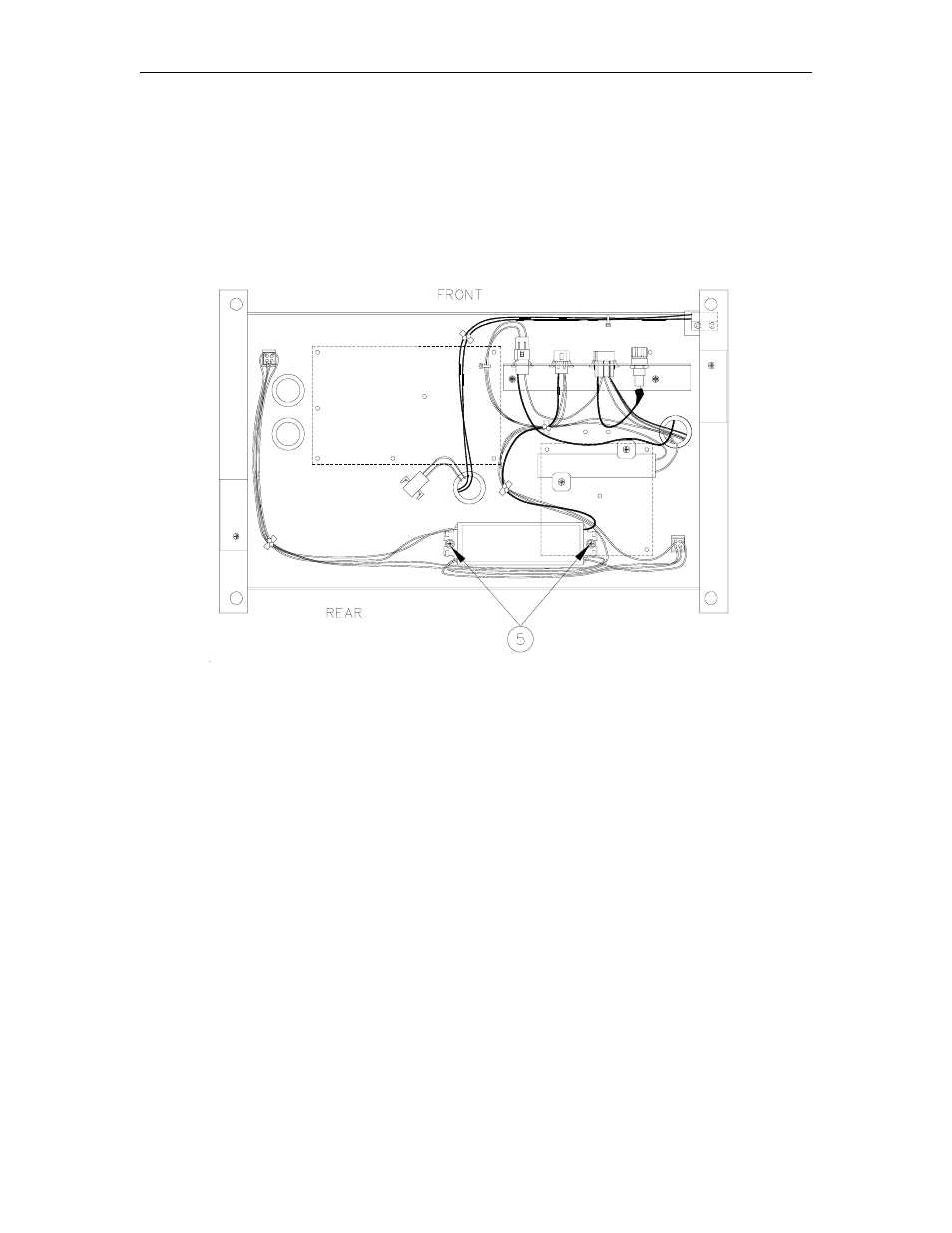

6. On the underside of the platform assembly, remove the two screws and washers [5]
holding the ballast to the platform; on older units two nuts must be removed.
7.
Reverse Steps 2 through 6 to install the new ballast cable assembly. Be sure to install a
new tie strap or push-in wire twist standoff to keep the cable wiring away from the optional
heater strip. See Replacing the Platform Assembly earlier in this section to complete the
procedure.
