Electronic Head Assembly
01/28/04 3-7

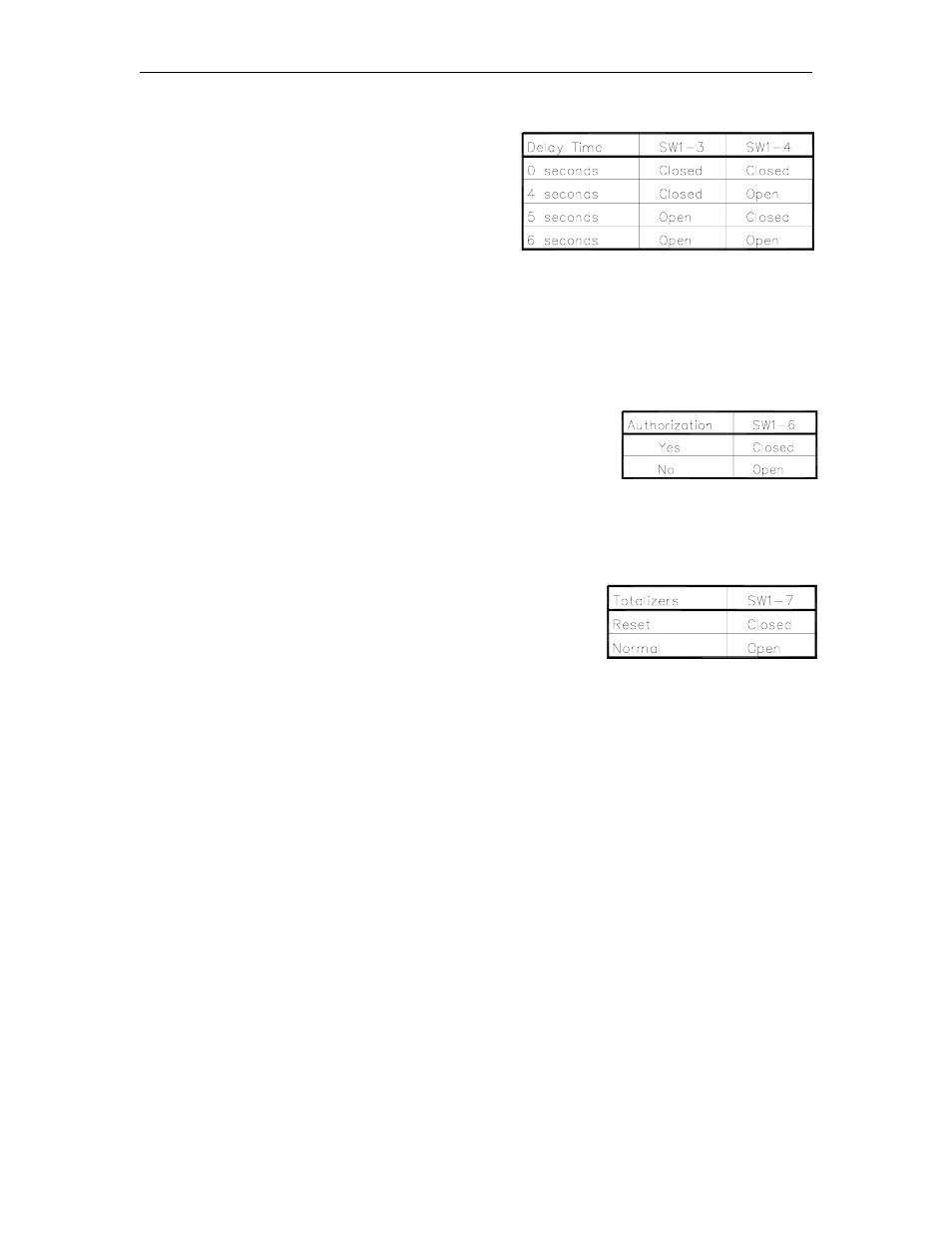

SW1-3, SW1-4 Delay Time
These two switches set the delay time used by
leak detectors in submersible pump applications.
The delay time is the period between activation of
the submersible pump and activation of the slow
flow valve. This time should be set according to
the type of leak detector installed on the
submersible pump to allow a normal leak test for
each transaction. The delay time should be set to
zero seconds for suction pumps.
SW1-5
Not used.
SW1-6 Authorization
This switch allows activation or non-activation of the unit through
an external source (fuel management system). When closed, a
115/230 VAC signal must be present on the Control Feed (pump
motor or subm) line for pump activation to occur (required setting
for Series 1000). When open, the 9800Q ignores the Control
Feed line (required setting for CFN System or no fuel
management system).
SW1-7 Totalizers
This switch should be set to open for normal operation. When
closed, this switch enables the reset of the electronic totalizers.
SW1-8
Not used.
