Comtech EF Data LPOD-R - Manual (Page 73)

LPOD-R Outdoor Amplifier / Block Up Converter MN-LPODR
System Connections, Installation and Startup Revision 1
2–11
ITEM QTY CEFD PART NO. DESCRIPTION
6 2 HW/M8X1.25X25HEXSS BOLT, HEXHEAD, M8X1.25X25, SS
7 7 HW/M8FLATSS WASHER, FLAT, M8 SS, METRIC
8 7 HW/M8LOCKSS LOCK WASHER, SPLIT, M8, SS, METRIC
9 2 HW/M8SPRINGNUT SPRINGNUT, M8X1.25
10 5 HW/M8X1.25MMHEXNUTSS NUT, HEX M8X1.25X16MM, SS
11 2 HW/BLK-PIPE2-8 PIPE, BLOCK
This kit accommodates a pole diameter (OD) of up to 13.00” (33.02 cm) maximum.

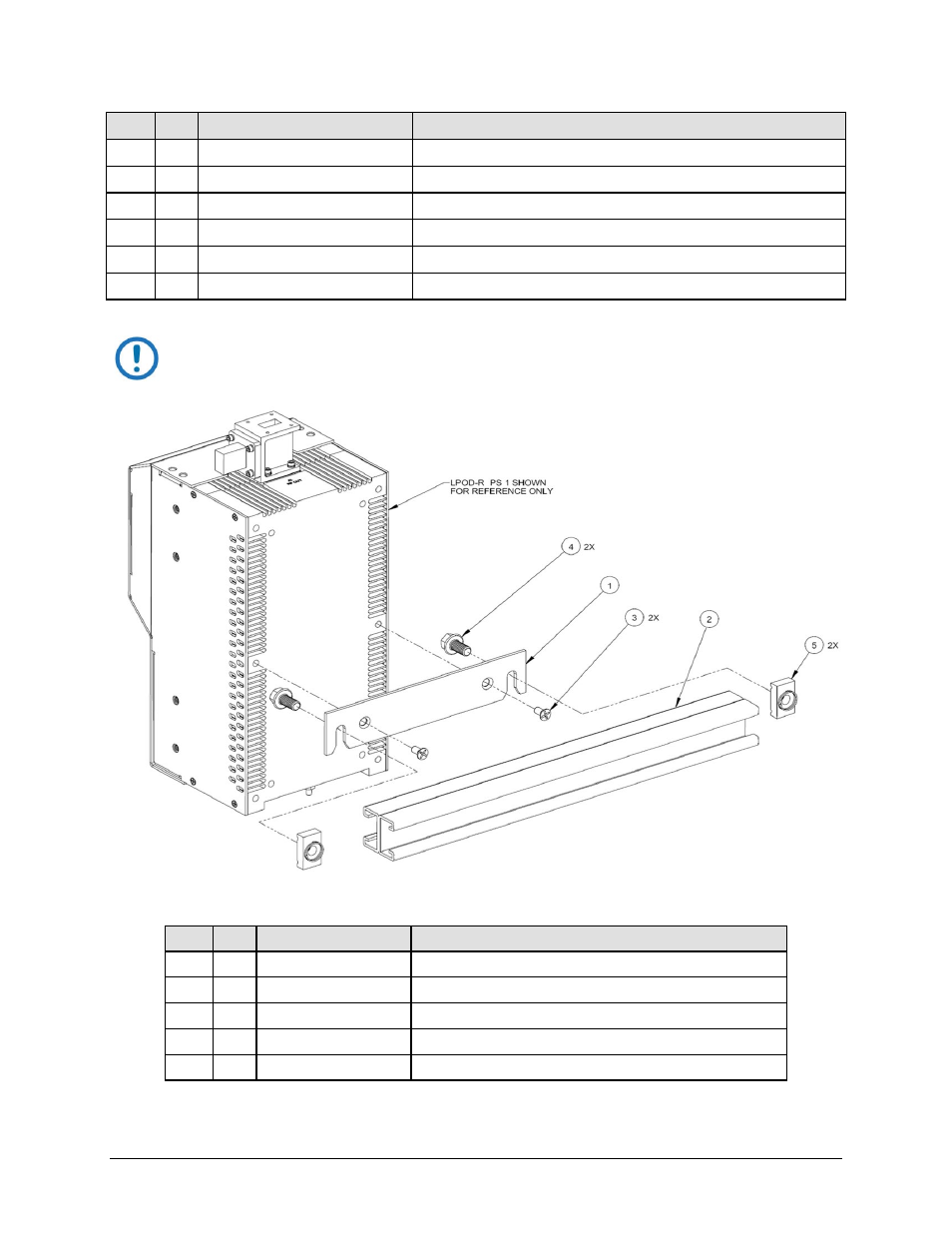

Figure 2-7. KT-0000095 LPOD-R PS 1, 1.5 Single Thread Mounting Kit
ITEM QTY CEFD PART NO. DESCRIPTION
1 1 FP-0000534 BRACKET, MOUNTING
2 1 FP/BR0078 BRACKET MODIFICATION POLE MOUNTING KIT
3 2 HW/1/4-20X1/2FH SCREW, 1/4-20 X 1/2 FH PHIL, 82, UCUT, SS
4 2 HW-0000070 SCREW, HEX, SERR FLANGE HD, 3/8-16 x 3/4, SS
5 2 HW/3/8SPRINGNUT SPRINGNUT, 3/8-16, SHORT SPRING, SS (P3300)
