2.3 Single Thread (Standalone) LPOD-R Installation
Kits are available from Comtech EF Data to mount and install a standalone LPOD-Rs, depending
on the type of unit ordered and its operational frequency.
Figures on the pages that follow illustrate available standalone mounting kits:
FIGURE CEFD PART NO. DESCRIPTION
2-6 PL/12319-1 Universal Pole Mounting Kit
2-7 KT-0000095 LPOD-R PS 1/PS 1.5 Single Unit Mounting Kit
Refer to Appendix A. CABLE DRAWINGS for information pertaining to the cables that are
available for use with the LPOD-R in standalone operation.

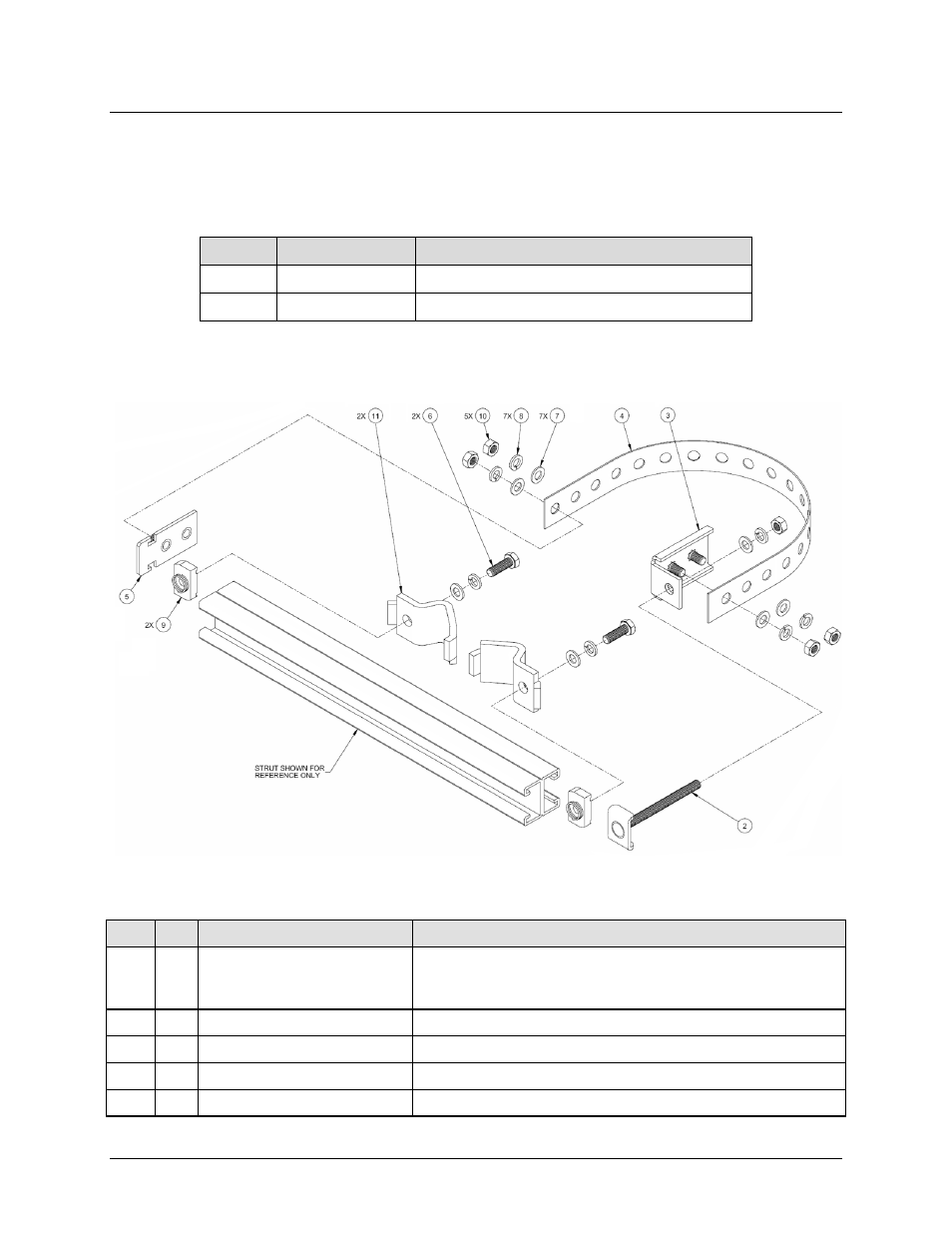

Figure 2-6. PL/12319-1 Universal Pole Mounting Kit
ITEM QTY CEFD PART NO. DESCRIPTION
1 1 N/A
BRACKET, UNISTRUT (SHOWN FOR CLARITY ONLY,
INCLUDED SEPARATELY IN CEFD MOUNTING KIT, e.g.,
P/N FP/BR0078, PART OF P/N KT-0000095)
2 1 FP/BR0072 BRACKET, STRAP TENSIONER
3 1 FP/BR0070 BRACKET, STRAP-TERMINATION POLE MOUNTING KIT
4 1 FP/BR0071 BRACKET, 1-1/4 STRAP (TRIM LENGTH AS REQUIRED)
5 1 FP/BR0069 BRACKET, STRAP-FIXED, POLE MOUNTING KIT
