Technical Specifications

DD2401 VME L-Band Demodulator Card Installation & Operational Manual

7-8

MN-VME2401 – Rev. B

7.6.6 BER Performance ((O)QPSK Turbo)

1E-9

1E-8

1E-7

1E-6

1E-5

1E-4

1E-3

1E-2

1E-1

0

1

2

3

4

5

6

7

8

9

10

11

12

Eb/No in dB

BE

R

Turbo Decoder

Specification

1/2 Rate

Specification

3/4 Rate

Typical

Performance

B/O/QPSK Uncoded Theory

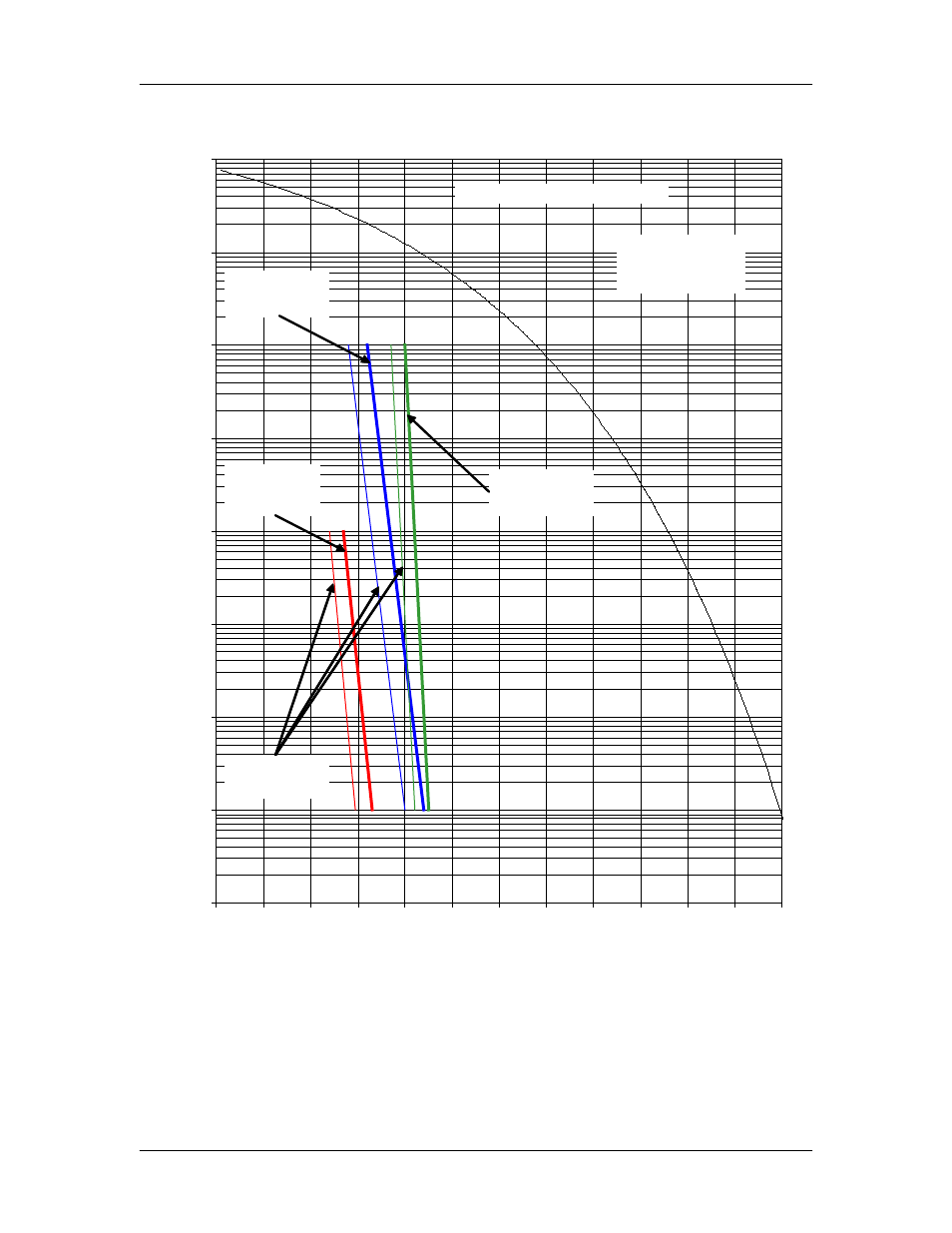

Figure 7-6 - MD2401 (O)QPSK BER Performance (Turbo)

Specification

7/8 Rate
