DD2401 VME L-Band Demodulator Card Installation & Operational Manual Rear Panel Interfaces
MN-VME2401 – Rev. B 5-1
Rear Panel Interfaces 5
5.0 DD2401 VME Demodulator Card Connections
All DD2401 VME Demodulator Card connections are made to labeled connectors, and to
any optional interfaces installed in slots located on the rear of the unintentional interfacing
to the DD2401 VME Demodulator Card must be the appropriate mating connector. Refer to
Figure 5-1 for connector locations.
Shielded cables with the shield terminated to conductive backshells are required in
order to meet EMC Directives. Cables with insulation flammability ratings of 94 VO or
better are required in order to meet Low Voltage Directives.

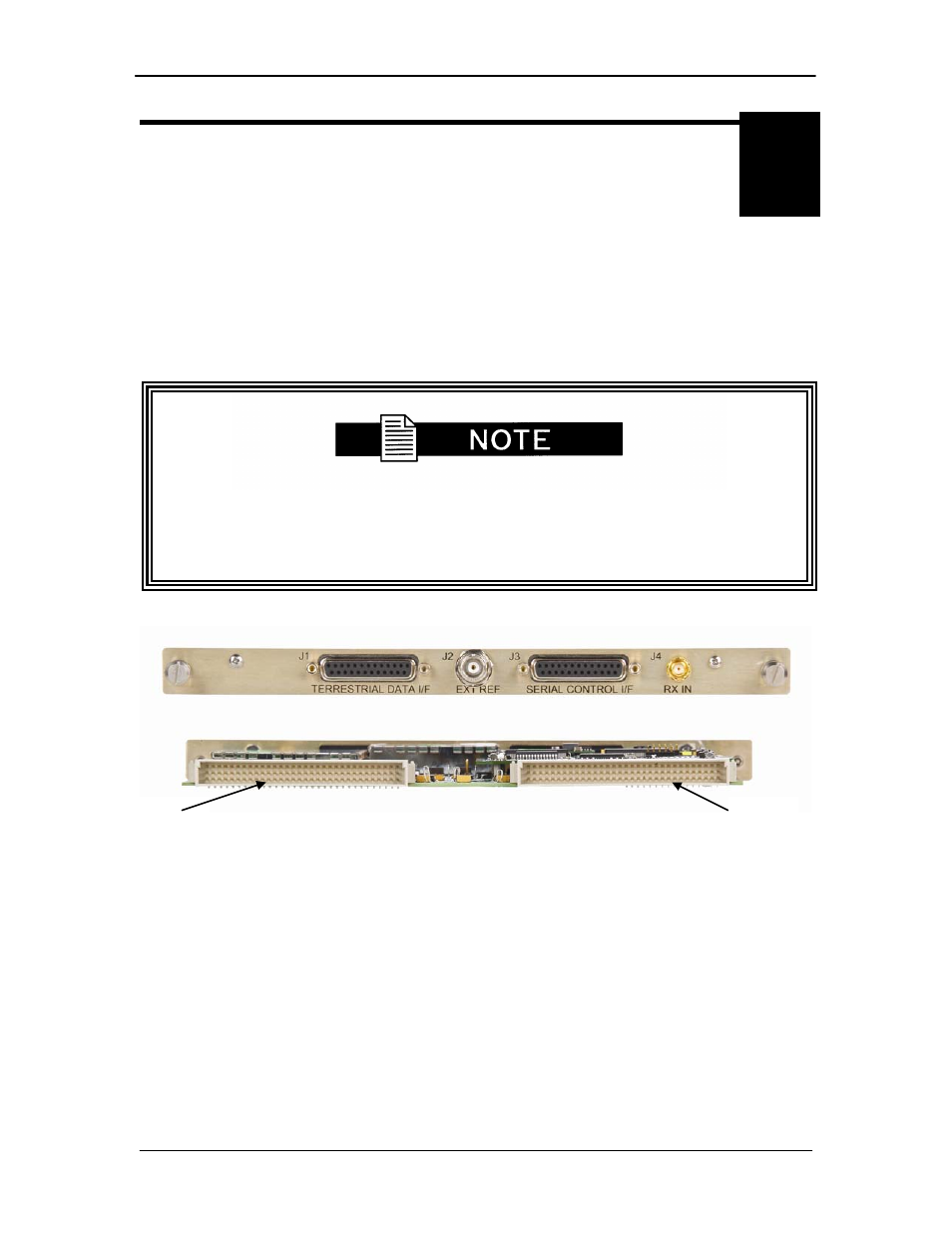

Figure 5-1. DD2401 VME Demodulator Card Connectors
P1 P2
