MINIMAC Rack Management System Installation
Rev. 0 2–5
Star Gate
Cable End
DB9 Male Pin
Signal Name
(Relative to Star Gate)
Device
Remote
DB9 Male Pin
2,7 RX-, TX- 5,9
4,9 TX+, RX+ 8,4

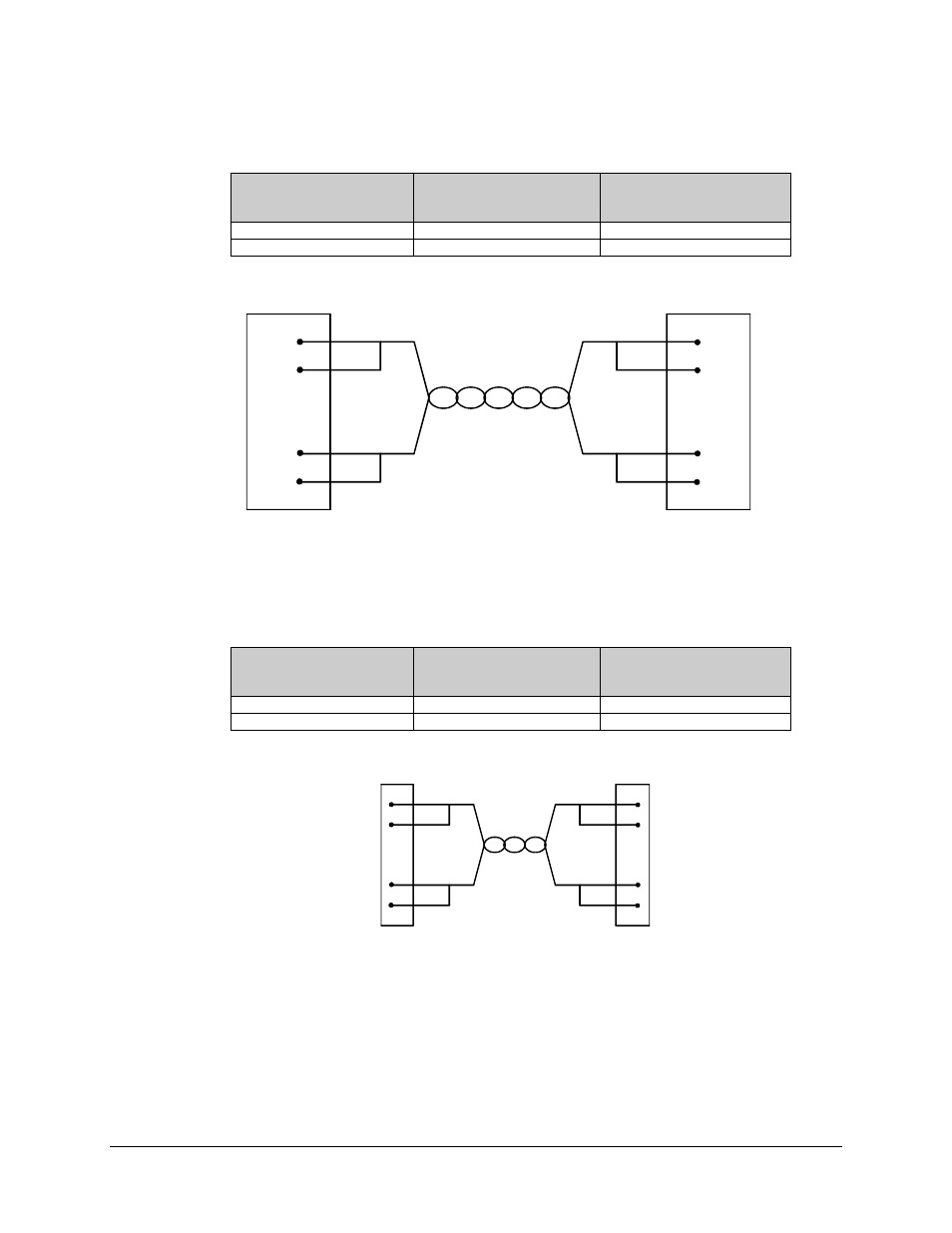

Figure 2-1. Star Gate RS-485 (2-Wire) MiniMAC to Remote
Star Gate
Cable End
DB9 Male Pin
Signal Name
(Relative to Star Gate)
ASYNC
DB25
Male Pin
2,7 RX-, TX- 2, 3
4,9 TX+, RX+ 14, 16
Figure 2-2. Star Gate RS-485 (2-Wire) MiniMAC to ASYNC
5
9
8
4
2
7
4
9
1 4
1 6
2
3
4
9
2
7
H U B
