Chapter 2 - Getting Started
Front Panel
The Function Buttons and Directional Keypad of Soloist HD Pro are used to configure and monitor the
configurations and output of the device.

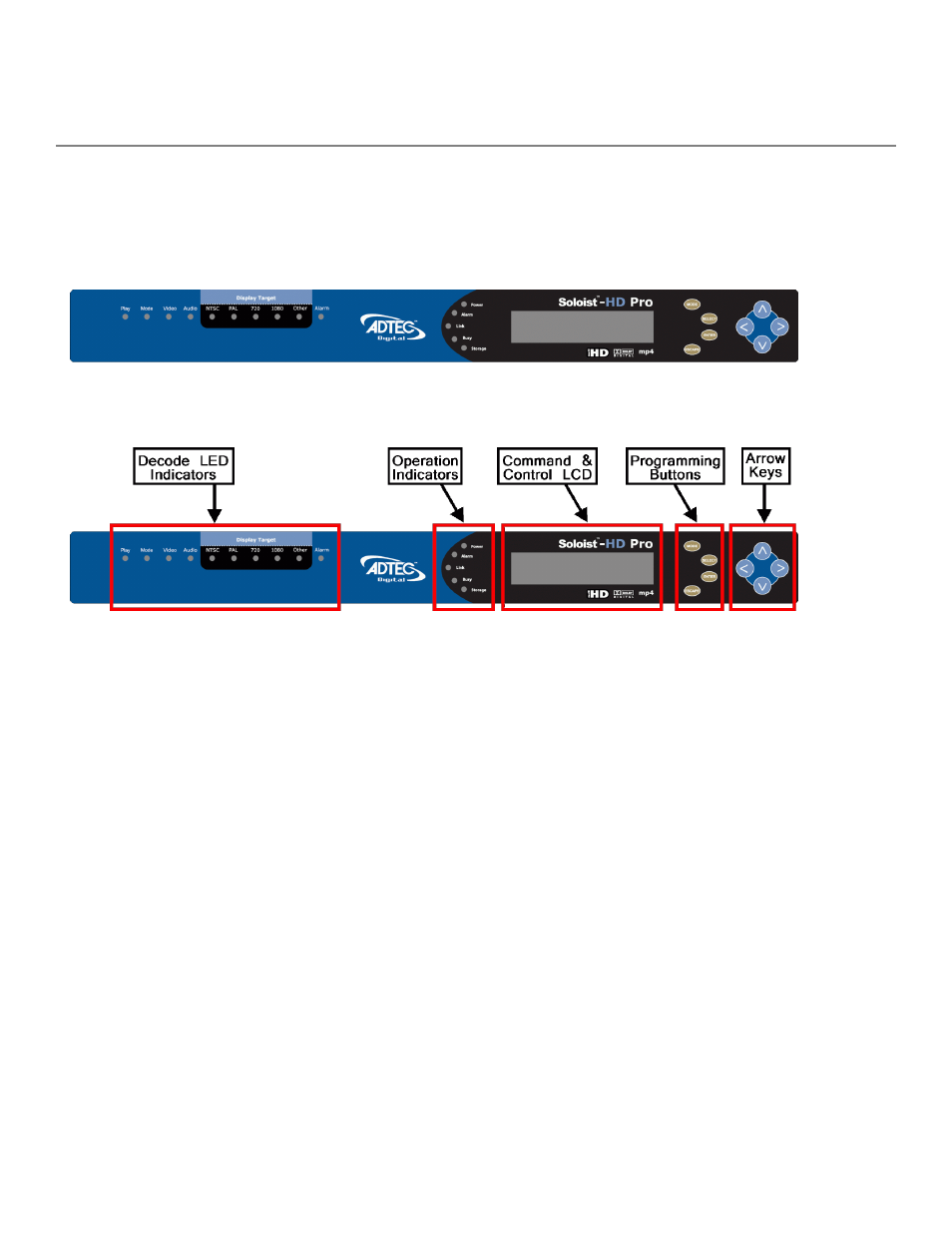

Panel Diagram
Front Panel LEDs
The Soloist HD Pro Front Panel consists of Operational Indicator LEDs, LCD display, and groups of
programming and arrow control buttons.
System / Operation Status Indicator LEDs
Power
Green : Power is on
Off (not lit): Power is off
Alarm
Off (not lit): no alarm
Yellow : minor alarm
Red : major alarm
Link
Green : Ethernet Link Detected
Off (not lit): No Ethernet Connection detected
Busy
Orange / Green Flashing : Unit is busy /
Network traffic
Off (not lit): No detected network traffic
Storage / Aux
Off (not lit)
