9 PScope
User Manual for Motion Control Tools Page 33
9.2 Menus
9.2.1 Menu "File"
New: Opens a new blank PScope document.
Open: Opens an existing PScope file from disk.
Save: Saves the current PScope file.
Save as: Saves the current PScope file with a new file name.
Print: Prints the current PScope screen.
Print Preview: Displays full page of the current PScope screen before printing.
Send: Sends the current document via email.
Exit: Exits PScope.
9.2.2 Menu "Scope"
Amplifier / Controller oscilloscope:
Switch between "Controller record mode"
(for all control systems) and "Amplifier record mode" (for servo
amplifiers).
RUN: Starts recording.
STOP: Stops recording.
Measure: Activates or deactivates the measuring function.
Autoscale: Autoscale function for the Scope View.

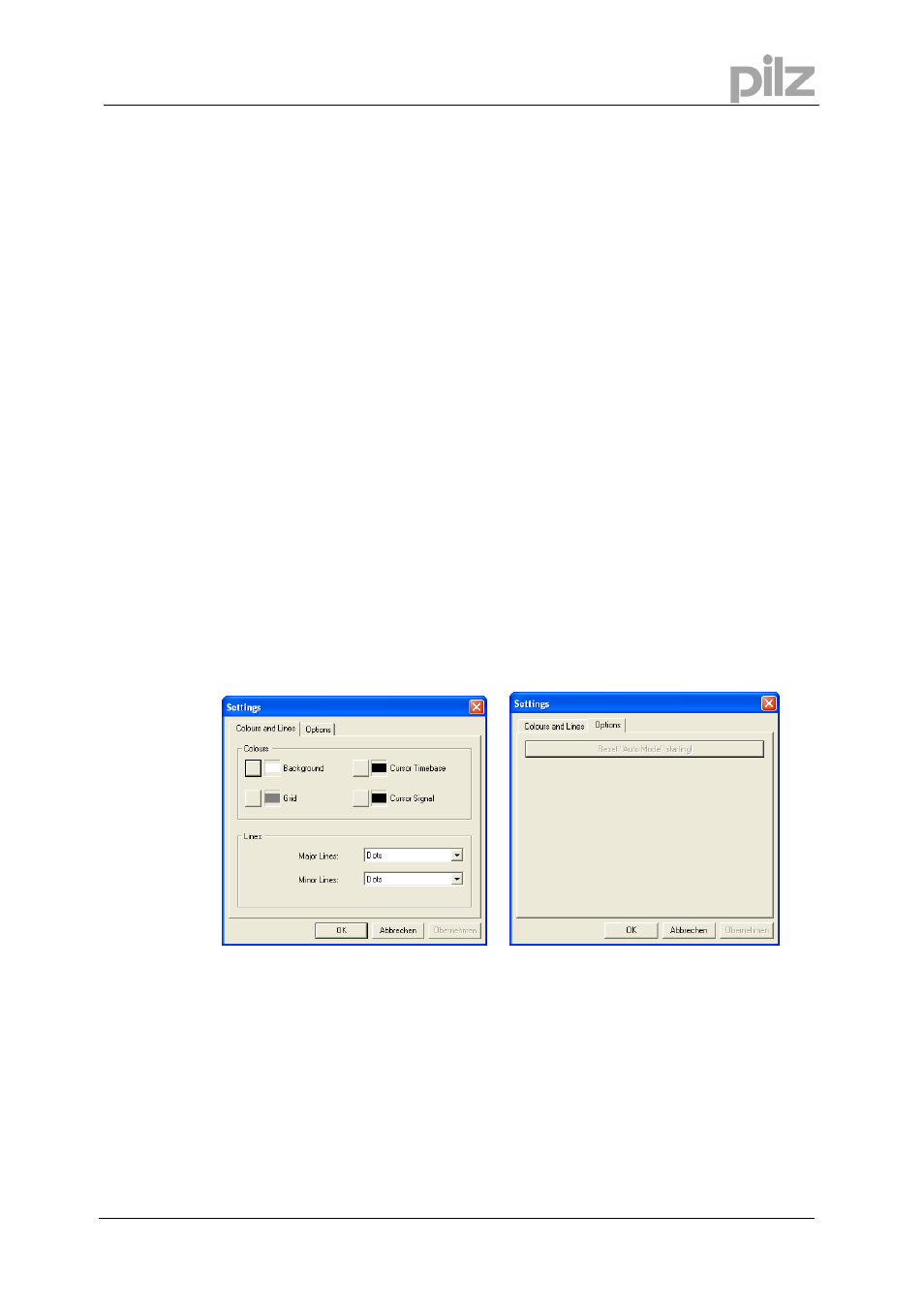

Settings: Colours and Lines:
Adjustment of Colours and lines for the scope screen.
Options:
The button “Reset Auto mode starting“ deactivates the
automatical start in a defined mode.
Clear view: Clears the scope view.
Read previous scan: Reads the previous recorded signal scan from the system.
(only controller mode)
