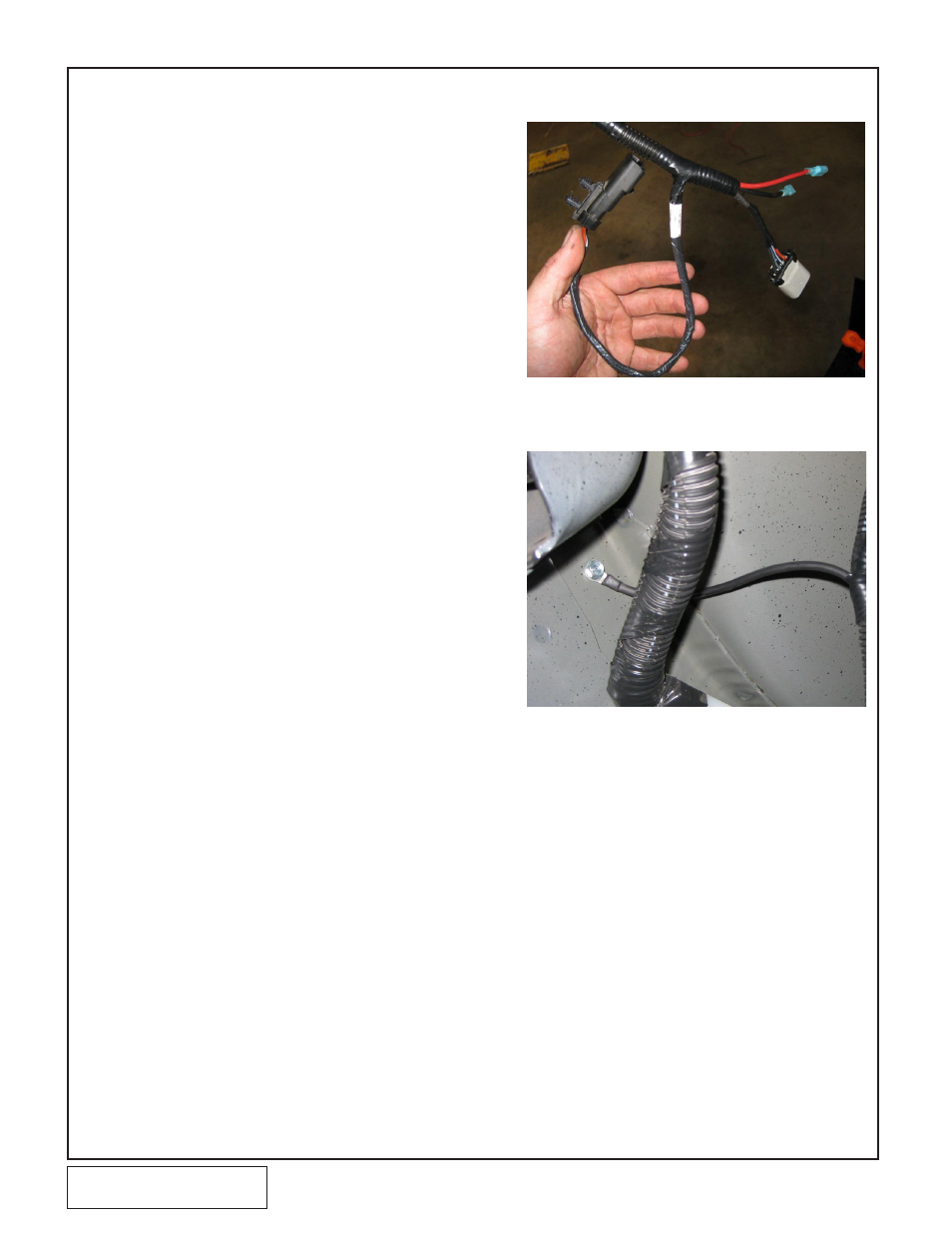

S. Locate the factory fuel pump wiring harness
disconnected from the fuel pump canister in
step 9-H. Peel back the electrical tape toward
the end that plugs into the pump canister. Cut
the orange wire with the red tracer roughly 3
inches from the plug (see Fig. t).
T. Bundle wires together and wrap with electrical
tape (See Fig t). Refer to wiring diagram for
final installation.
U. Trim the FPB red and orange wires left hang-
ing (shown in Fig. h, page 33) so that there is
adequate length to connect to fuel tank during
re-assembly. Attach the 14ga. red wire from
the FPB to the end of the orange with red
trace wire going to the OEM wiring harness.
(Refer to wiring diagram). Attach a female
slide connector to the 12ga. orange wire from
the FPB. This wire will power the fuel pump.
V. Locate the 3 foot piece of 12ga. black ground
wire supplied in your kit. Attach a male slide
connector to one end and a ¼” ring terminal to
the other end. Attach the ring terminal to the
chassis using the supplied sheet metal screw.
(See Fig. u)
INSTALL FUEL TANK
AA. Re-support tank on transmission jack or equiv-
alent and carefully raise tank back up into the
cavity of the car. Connect the harness that
was spliced into the FPB wires to the fuel
pump canister. Connect the orange FPB wire
to the red pump wire and black ground wire to
the black pump ground wire. Raise the tank all
the way. Some maneuvering is required if the
driveshaft was not disconnected.
AB. Secure with original six bolts.
AC. Reconnect the fuel tank filler tube with original
clamp, the two push lock connectors at the
rear of the tank to the fuel vapor canister
(white connector and black connector with yel-
low clip)
AD. Reconnect the electrical connector located
above the rear differential center section.
AE. Reconnect the two push lock connectors
located at the front of the tank. (Fuel supply
and fuel vapor lines)
AF. Re-secure inter fenders and re-install front
wheel.
AG. Connect the battery. After reconnecting the
battery you should key on listening for the
pump to prime and check all fuel connections
for leaks.
Fig. u
Fig. t
