Vortech 2006-2010 6.1L Jeep SRT8 User Manual

Page 43

P/N: 4CK020-010 v6.0, 02/17/2012

Locate the 1/8” nylon Instrument tubing, 10ga.

red wire, 12ga.orange wire, 14ga. red wire,

and install it into the 1/2” plastic split loom

making a harness assembly.

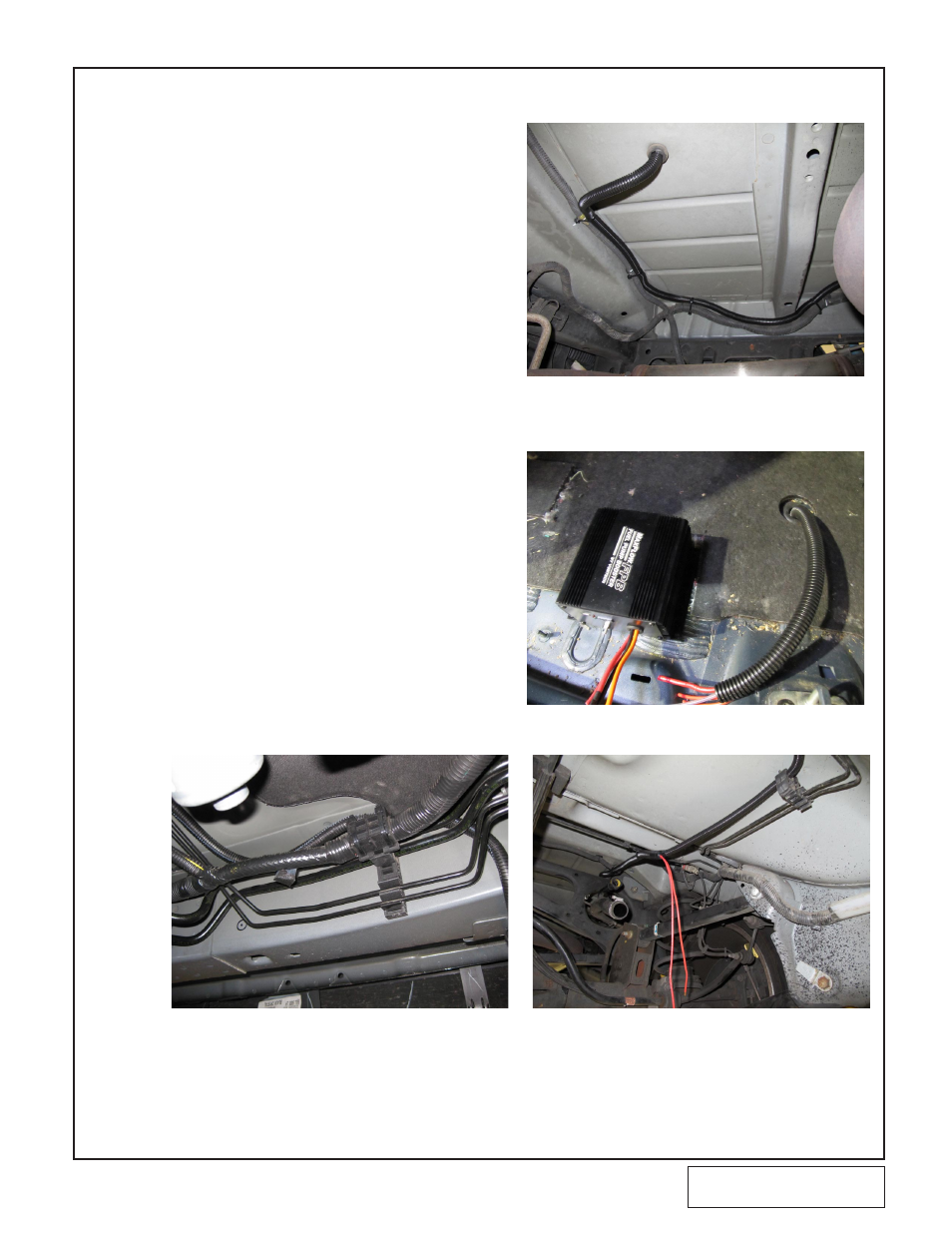

J. Locate the rubber plug shown in Fig. f and

Fig. g. Using a sharp knife or blade cut the

bottom out of the plug to provide through

access for ½” harness assembly.

K. From the underside of the vehicle route the

harness assembly up through the modified

plug to the FPB previously installed. Secure

the loom with provided tie wraps in Fig. f.

L. Locate the 11’ piece of 3/8” plastic split loom

and install the 1/8” nylon instrument tube and

red 10ga. power wire. Continue routing the

harness assembly loom (See Fig. h, Fig. i)

through the factory fuel line supports along the

inside of the underbody and secure with zip

ties as needed. Leave the 12ga. orange and

14ga. red wire hanging as shown in Fig. h to

be used in a later step.

Fig. g

Fig. f

Fig. i

Fig. h
