Vortech 2006-2010 6.1L Jeep SRT8 User Manual

Page 18

P/N: 4CK020-010 v6.0, 02/17/2012

1. Install a 1” long piece of the supplied ¾” hose

over the end of the passenger side fuel rail

(See Fig. 7A-a).

2. Using pipe thread sealant, install two 1/2"

NPT X 3/4" barbed straight fittings into the

upper and lower holes on the CAC end tank.

3. Install the supplied grommet into the hole in

the CAC discharge tank, install IAT sensor,

and plug it in.

4. Lower the CAC into place over the passenger

side valve cover and loosely attach it to the

supercharger and throttle body using the sup-

plied silicone elbows. Using the 2.75 90°

elbow, connect the short leg to the super-

charger discharge and the other end to the

left air tank on the CAC. Connect the 2.75-

inch end of the 180° silicone hose to the right

air tank on the CAC and the 3.5-inch end to

the throttle body. Install the bypass valve

using a gasket and the supplied hardware.

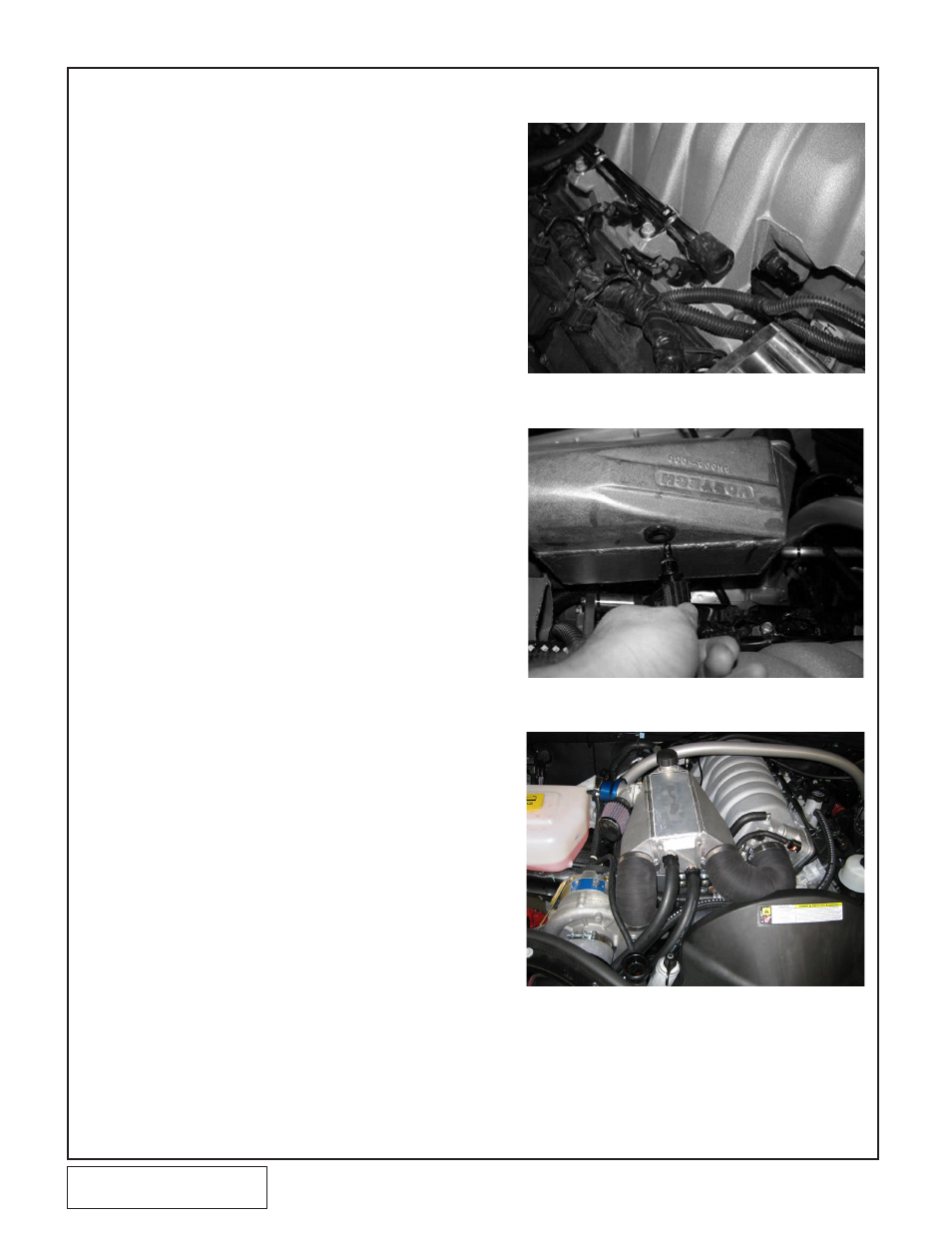

7.A CHARGE AIR COOLER (CAC) INSTALLATION

Fig. 7A-a

Fig. 7A-b

Fig. 7A-c
