Vortech 2006-2010 6.1L Jeep SRT8 User Manual

Page 42

P/N: 4CK020-010 v6.0, 02/17/2012

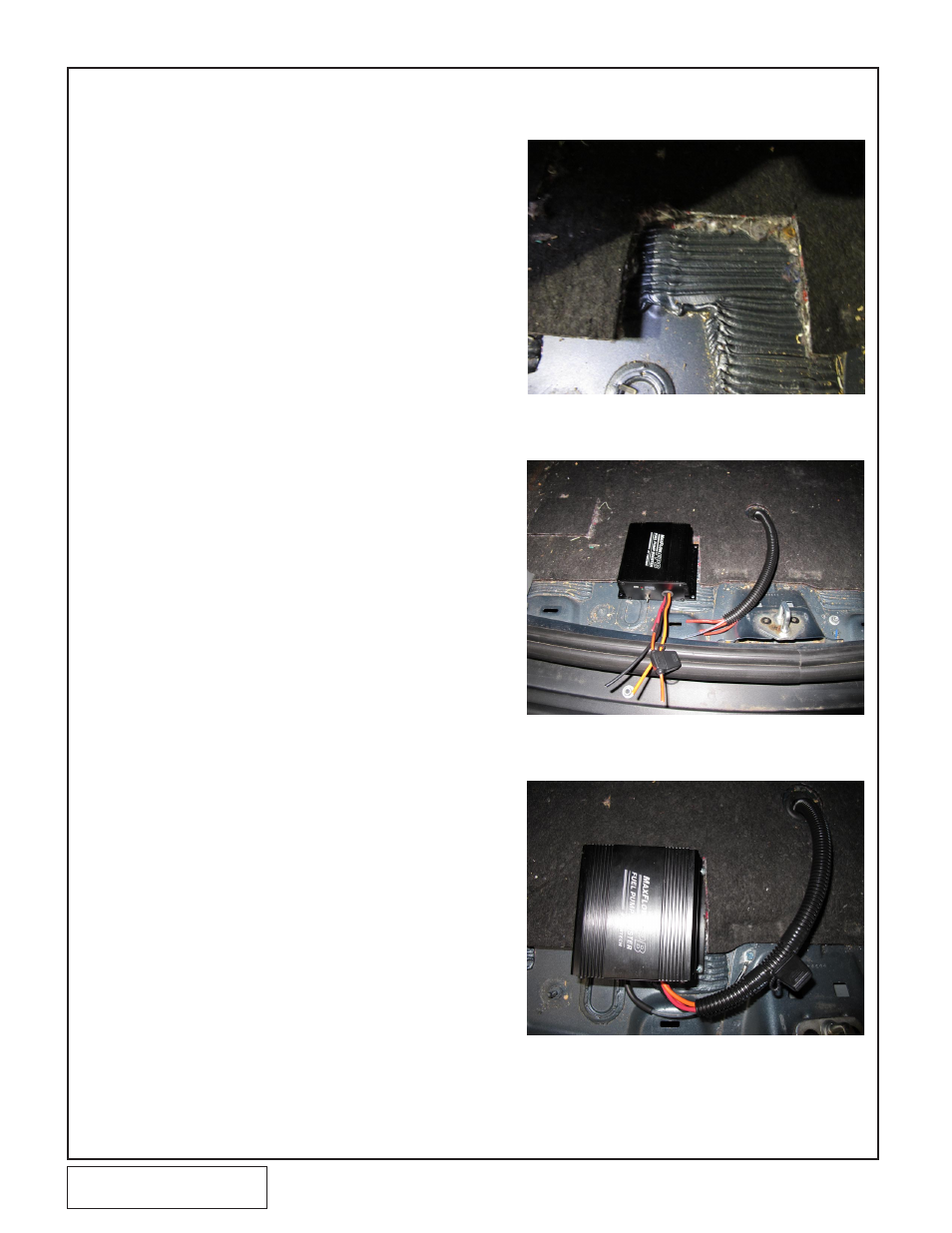

Fig. c

D. Open rear hatch door of vehicle to gain

access to FPB mounting location. Remove the

bottom plastic trim panel piece along bottom

edge at latch. Remove two 10mm nuts and lift

up subfloor to gain access to FPB mounting

location.

E. Place FPB in the mounting location lowering

subfloor to confirm location and fit. Mark

mounting location and cut away insulation

mat. (See Fig. c)

F. Position the FPB unit as shown in Fig. 10-d

and mark the three mounting holes for drilling.

G. Using a drill with a 9/64” drill, drill 3 mounting

holes.

H. Mount the FPB unit to the floor using the three

#10 sheet metal Phillips head screws. (See

Fig. e)

Fig. e

Fig. d
