Vortech 2006-2010 6.1L Jeep SRT8 User Manual

Page 39

P/N: 4CK020-010 v6.0, 02/17/2012

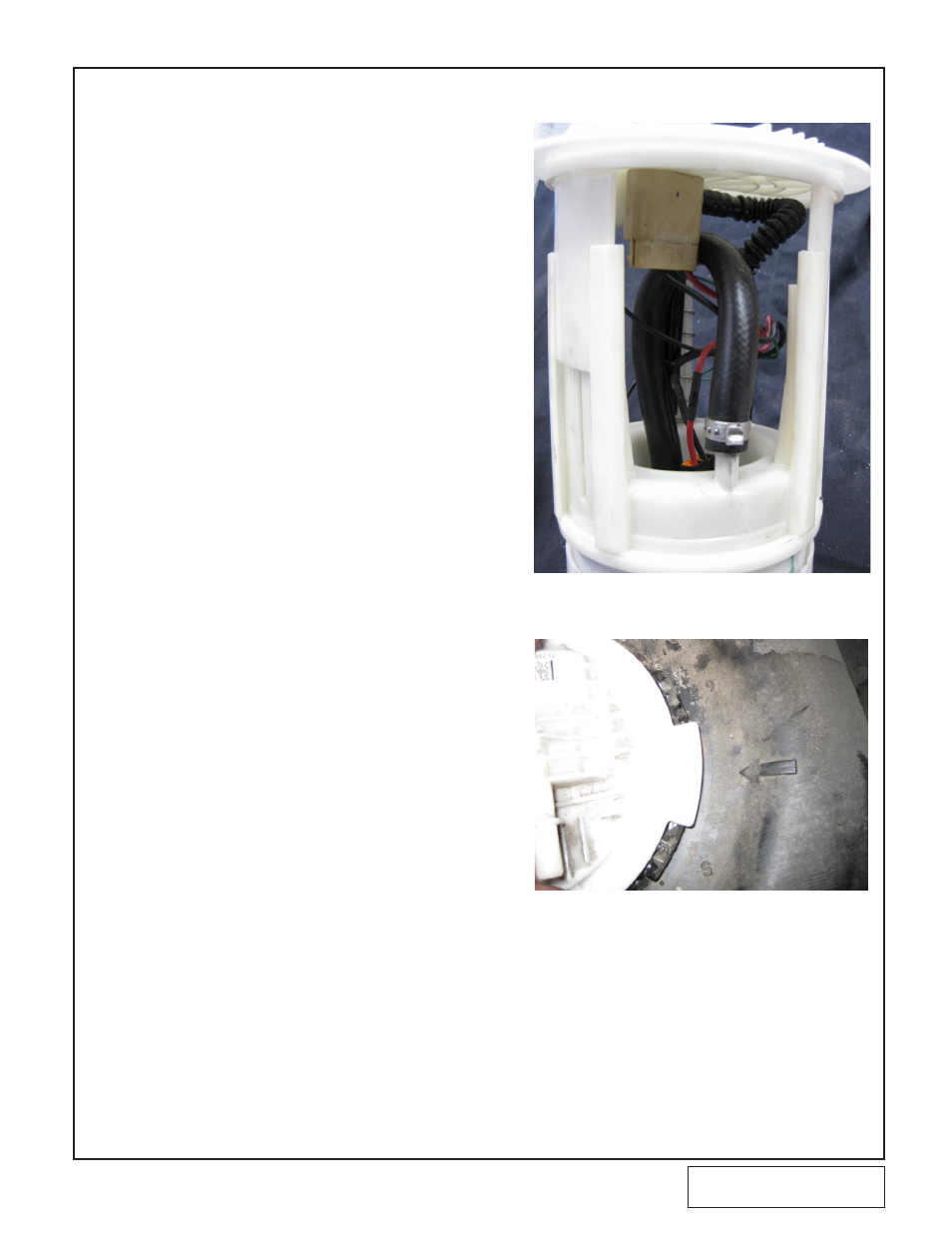

Fig. aw

AJ. Re-connect the factory electrical connector to

the underside of the fuel canister lid using

dielectric grease on the plug terminals.

AK. Onto the free end of the new fuel line slide a

stepless 17.0 clamp. Install fuel line to the barb

located on the middle section of the fuel canister

and tighten clamp (See Fig. as). Trim rubber

hose for best fit.

AL. Compress the lid down and make sure that the

fuel lines and wires will be free of kinks once the

canister is re-installed.

AM. Re-install the newly assembled fuel pump canis-

ter back into the tank using the original o-ring

gasket. Be sure to orient the unit so that the

locating tab lines up with the arrow and the fuel

connection points towards the appropriate side

of the tank. (See Fig. aw)

Fig. as
