6. Install the supplied ¼” hardware in the pas-
senger side upper hole where it lines up with
the vehicle (See Fig. 7C-e).
7. Re-install the hood latch and core support
brackets checking for clearance.
8. Connect the water pump discharge to the bot-
tom hose barb on the CAC radiator using the
supplied hose.
9. Connect the upper hose barb on the cooler
radiator to the water inlet fitting in the bottom
of the CAC core using the supplied hose. Be
sure hose sweeps evenly as not to kink (see
Fig. 7C-g).
10. Temporarily remove the hose from the top of
the CAC core and fill hose with 25%/75%
coolant/water mix until water comes out the
fitting on the CAC core.
11. Re-attach hose, tighten clamps on all connec-
tions and check for leaks.
12. Re-install the front grille.

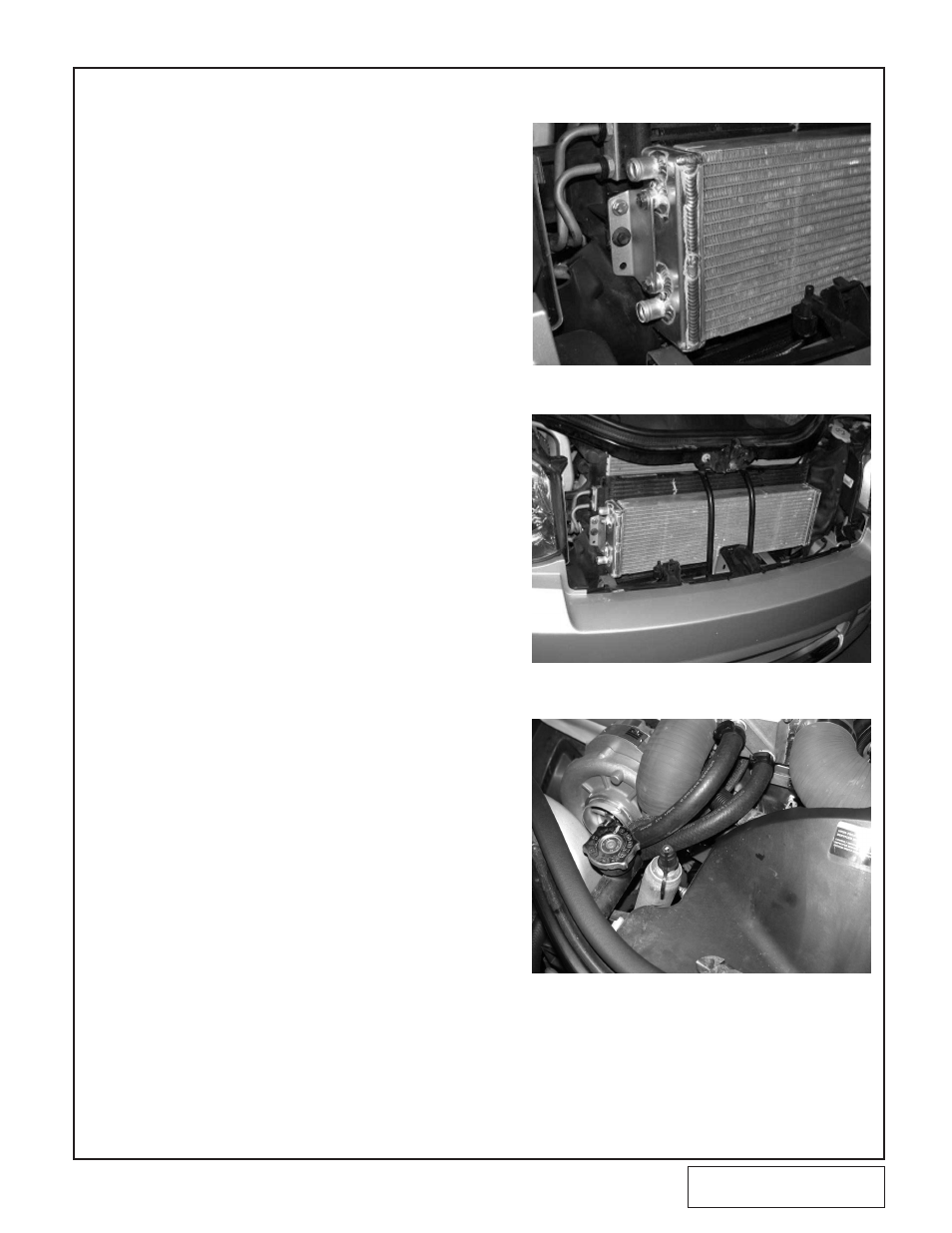

Fig. 7C-e
Fig. 7C-f
Fig. 7C-g
