Vortech 2006-2010 6.1L Jeep SRT8 User Manual

Page 24

P/N: 4CK020-010 v6.0, 02/17/2012

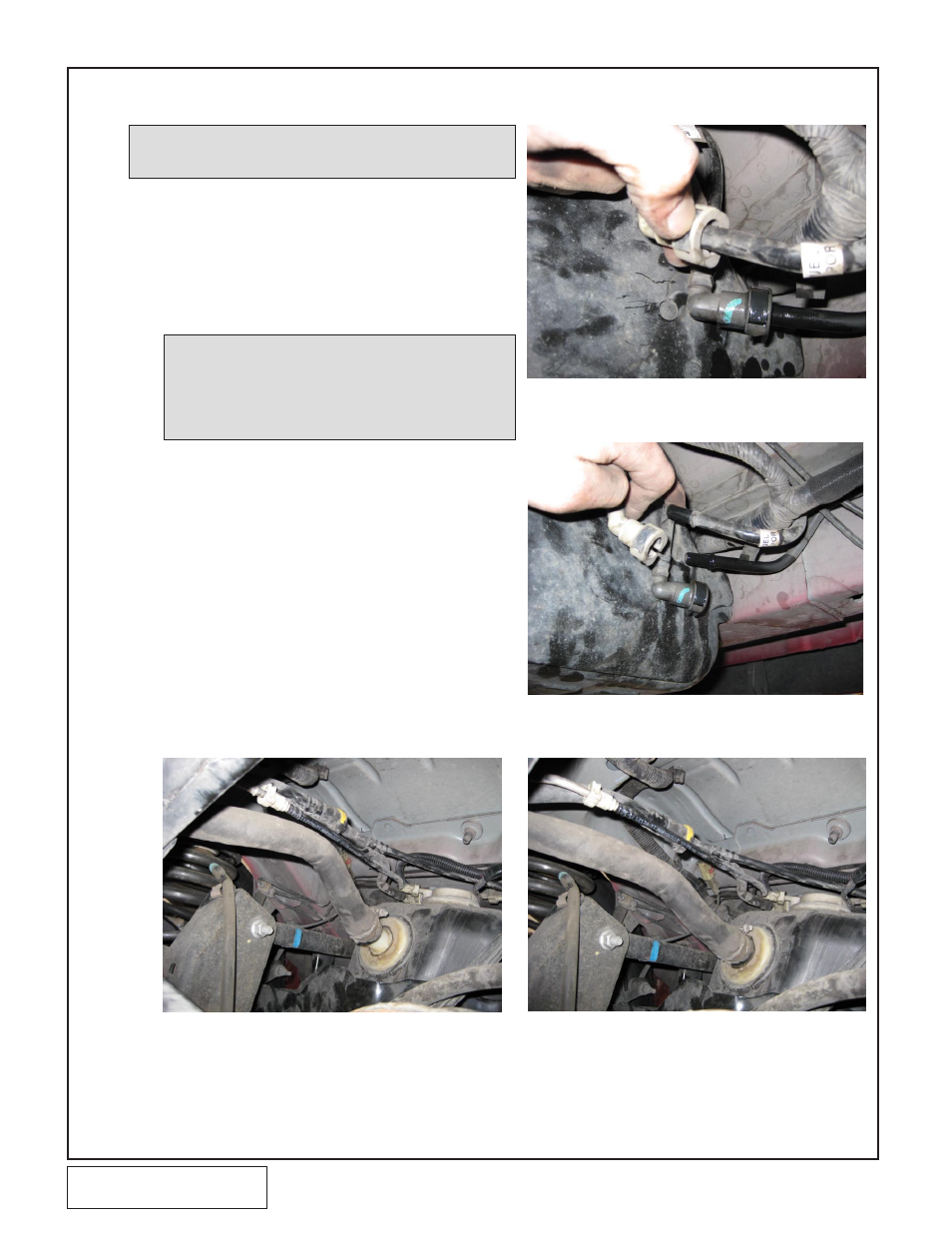

A. Start by disconnecting the fuel supply and

fuel vapor lines located just in front of the fuel

tank. Disconnect by pushing connector for-

ward slightly, and then while depressing the

retainer clip tab as shown pull the connector

back and off the hard metal line.

(See Fig. a, Fig. b).

B. At the rear of the tank disconnect the two

lines that go to the fuel vapor canister ( white

connector and black connector with yellow

clip). Disconnect the fill tube from the tank by

loosening the clamp and separating the hose.

(See Fig. c, Fig. d)

Fig. a

NOTE: This section is easier when the tank is less than half full.

NOTE: Always use caution and use of safety goggles is rec-

ommended when disconnecting fuel lines that may be

under pressure. Fuel will escape from connection.

Take care to keep heat sources away.

Fig. b

FUEL PUMP INSTALLATION

Fig. d

Fig. c
