Vortech 2006-2010 6.1L Jeep SRT8 User Manual

Page 25

P/N: 4CK020-010 v6.0, 02/17/2012

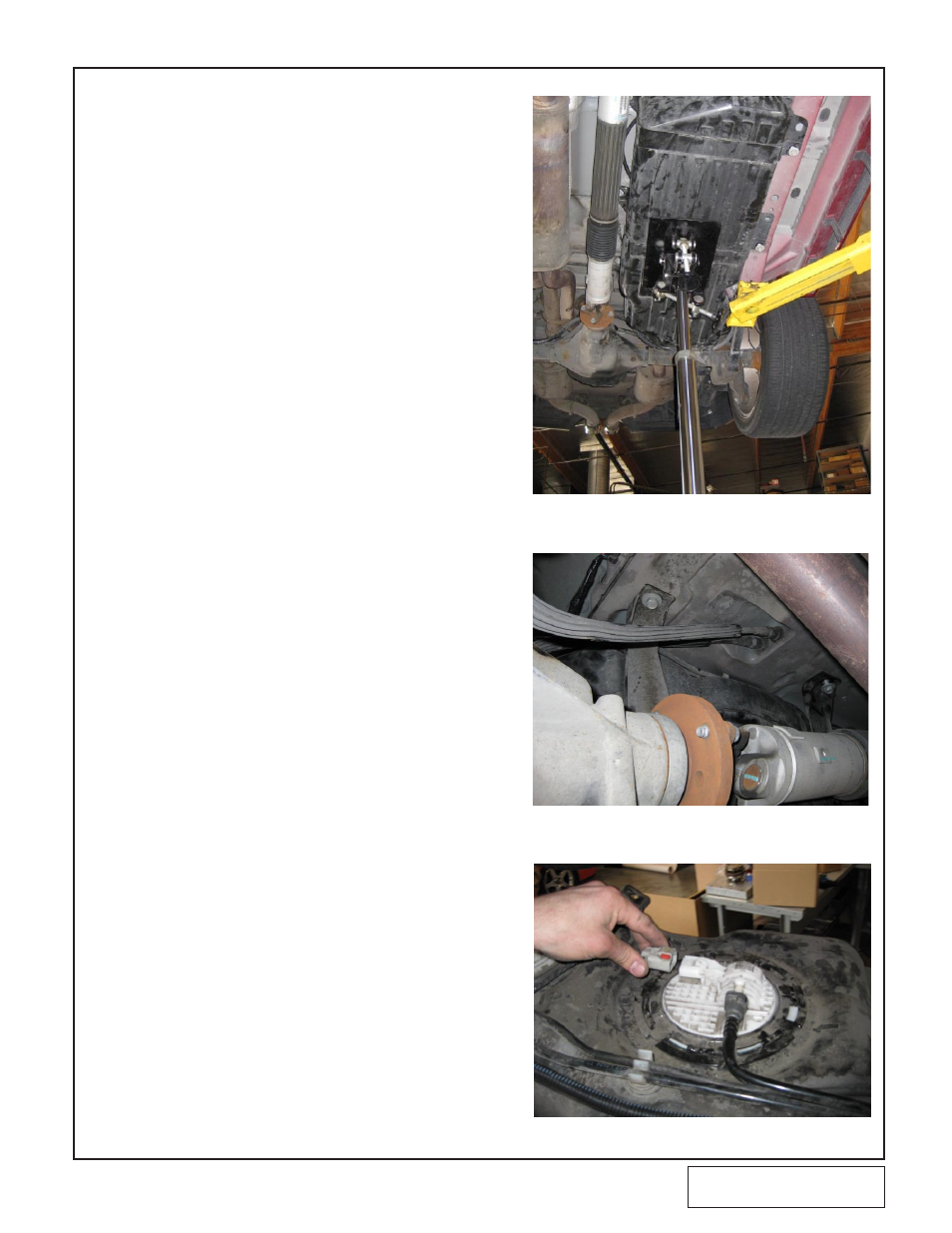

Fig. g

C. Detach and unplug the fuel pump wiring har-

ness located just above the center section of

the rear axle.

D. Support the tank using a transmission jack or

equivalent. (See Fig. e)

E. Locate and remove the six bolts mounting the

fuel tank to the body. Disconnecting the drive-

shaft from the rear pinion flange by removing

the 4 bolts will make removal of the tank easi-

er. (See Fig. f)

F. Carefully lower the tank down. Ensure that the

fuel tank support brackets don’t get hung up

on the drive shaft. Some maneuvering of the

tank is required.

G. Once the tank is out make sure it is on stable

surface. Dust off and clean up around the top

of the fuel pump canister hole so that dirt

doesn’t get into the tank during the following

steps.

H. Disconnect the wiring harness at the top of the

fuel pump canister. (See Fig. g)

Fig. e

Fig. f
