Vortech 2006-2010 6.1L Jeep SRT8 User Manual

Page 30

P/N: 4CK020-010 v6.0, 02/17/2012

Fig. v

Fig. w

Fig. t

Fig. u

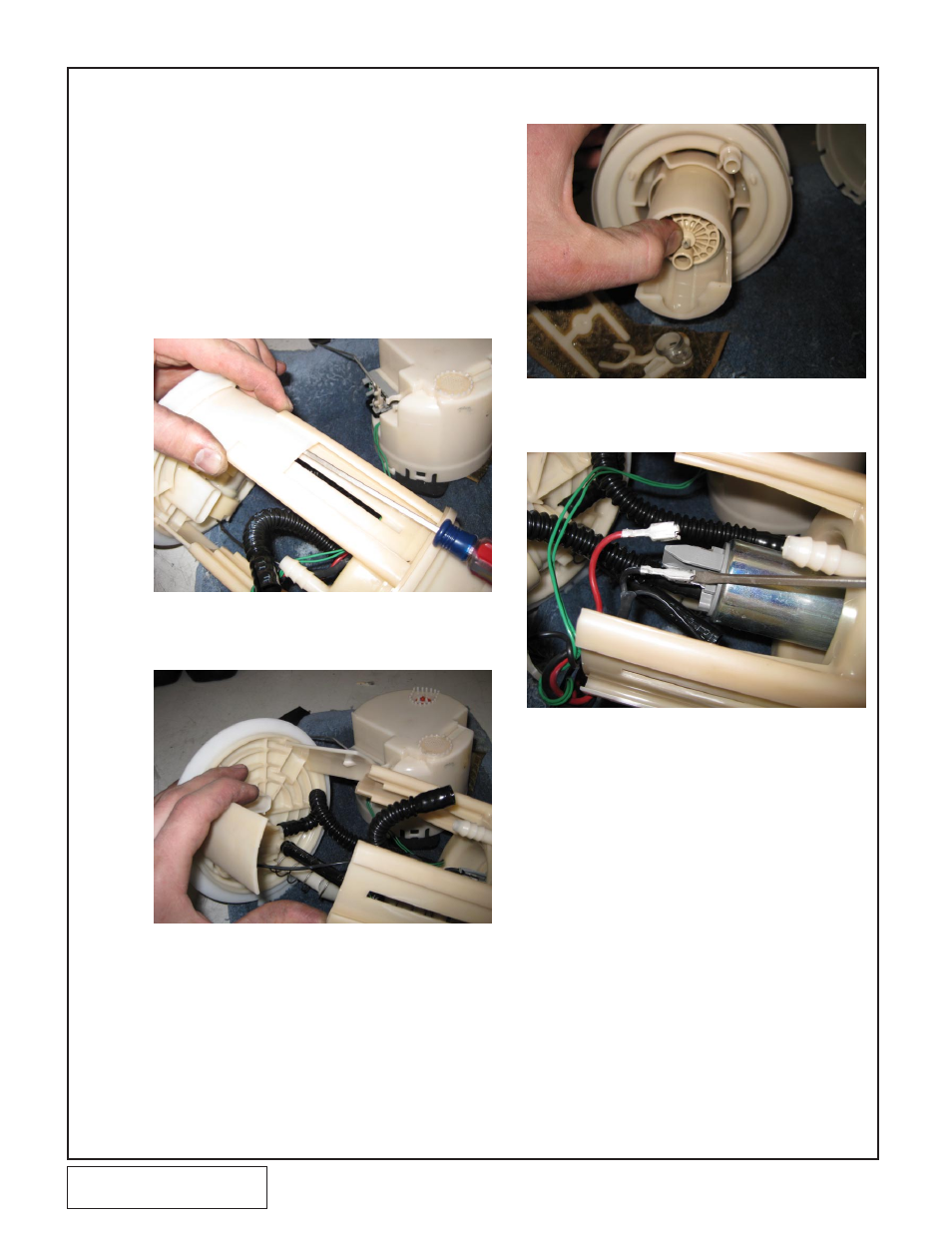

Q. Separate the top lid from the center section of

the fuel pump canister by carefully disengag-

ing the retainer tab on the two flat arms con-

necting them. (See Fig. t, Fig. u)

R. Remove the factory pump from the canister by

first pushing up on the bottom of the stock

pump. Push it out of its cavity using a small

screwdriver. If necessary, disconnect the ter-

minal connections at the top of the pump.

(See Fig. v, Fig. w)
